Article no.: F032135620

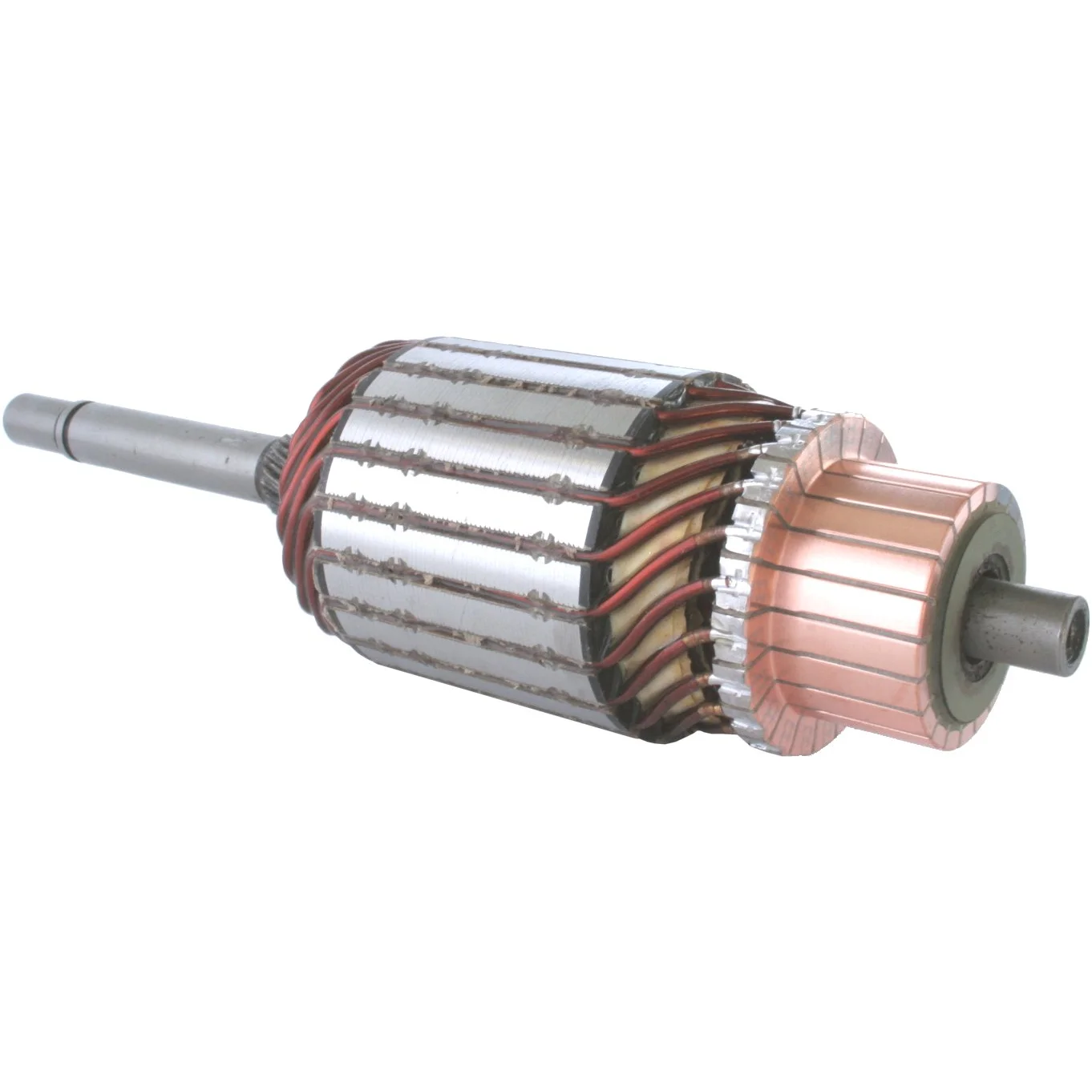

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.0, Rotation: CW, Core diameter: 51.50

Description

Voltage: 12
kW: 1.0
Core diameter: 51.50
Shaft diameter / Center line: 10.00
Shaft diameter / Drive End inside: 11.50
Shaft diameter / Drive End outside: 10.00
Shaft length: 202.40
Number of / splines: 12
Rotation: CW
Distance / armature: 11.50
Armature dia. / bar lane: 34.50
Bar distance: 2.00
Bar cross distance: 34.00
Height / bar lane: 18.70
Number of / bars: 21

Files

  • OEM
    F032135620, 83225127, 83225727, 83226536, 83226811, 83227678, 86226811, 083225127000, 083225127010, 083226811000, 083227678010

  • Normalised article numbler
    f032135620, sa4006, sa4024s, wsa16845, 83225127, 83225727, 83226536, 83226811, 83227678, 86226811, 083225127000, 083225127010, 083226811000, 083227678010
  • Description
    Voltage: 12
    kW: 1.0
    Core diameter: 51.50
    Shaft diameter / Center line: 10.00
    Shaft diameter / Drive End inside: 11.50
    Shaft diameter / Drive End outside: 10.00
    Shaft length: 202.40
    Number of / splines: 12
    Rotation: CW
    Distance / armature: 11.50
    Armature dia. / bar lane: 34.50
    Bar distance: 2.00
    Bar cross distance: 34.00
    Height / bar lane: 18.70
    Number of / bars: 21

    Files

  • Suitable for these vehicles

    • OEM
      F032135620, 83225127, 83225727, 83226536, 83226811, 83227678, 86226811, 083225127000, 083225127010, 083226811000, 083227678010

    • Normalised article numbler
      f032135620, sa4006, sa4024s, wsa16845, 83225127, 83225727, 83226536, 83226811, 83227678, 86226811, 083225127000, 083225127010, 083226811000, 083227678010
