Article no.: F032136106

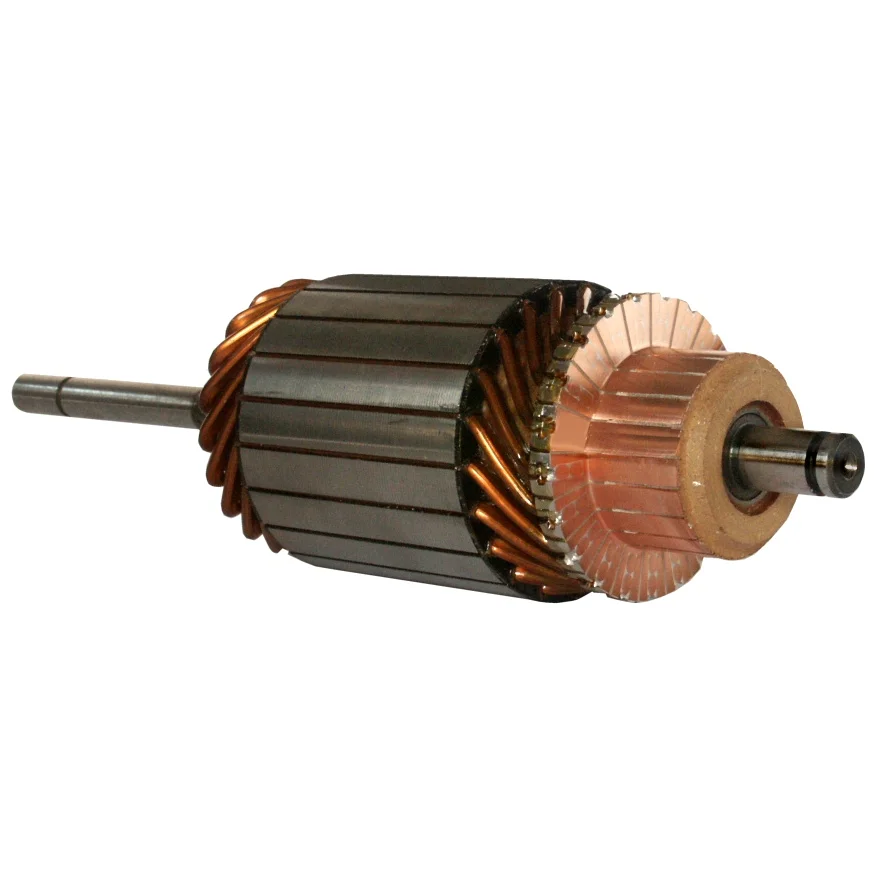

Armature / Rotor

Technical info:

Voltage: 9, kW: 2.3, Rotation: CW, Core diameter: 75.00

Description

Voltage: 9
kW: 2.3
Core diameter: 75.00
Shaft diameter/C.E.: 14.00
Shaft diameter/D.E. inside: 12.00
Shaft diameter/D.E. outside: 12.00
Shaft diameter: 18.90
Shaft length: 285.00
Number of splines: 10
Rotation: CW
Dist./Armature: 23.50
Commutator diameter/bar lane: 45.00
Height/bar lane: 21.30
Number of bars: 21
Remarks: 12 V: HC-CARGO 136105.
