Article no.: F032136674

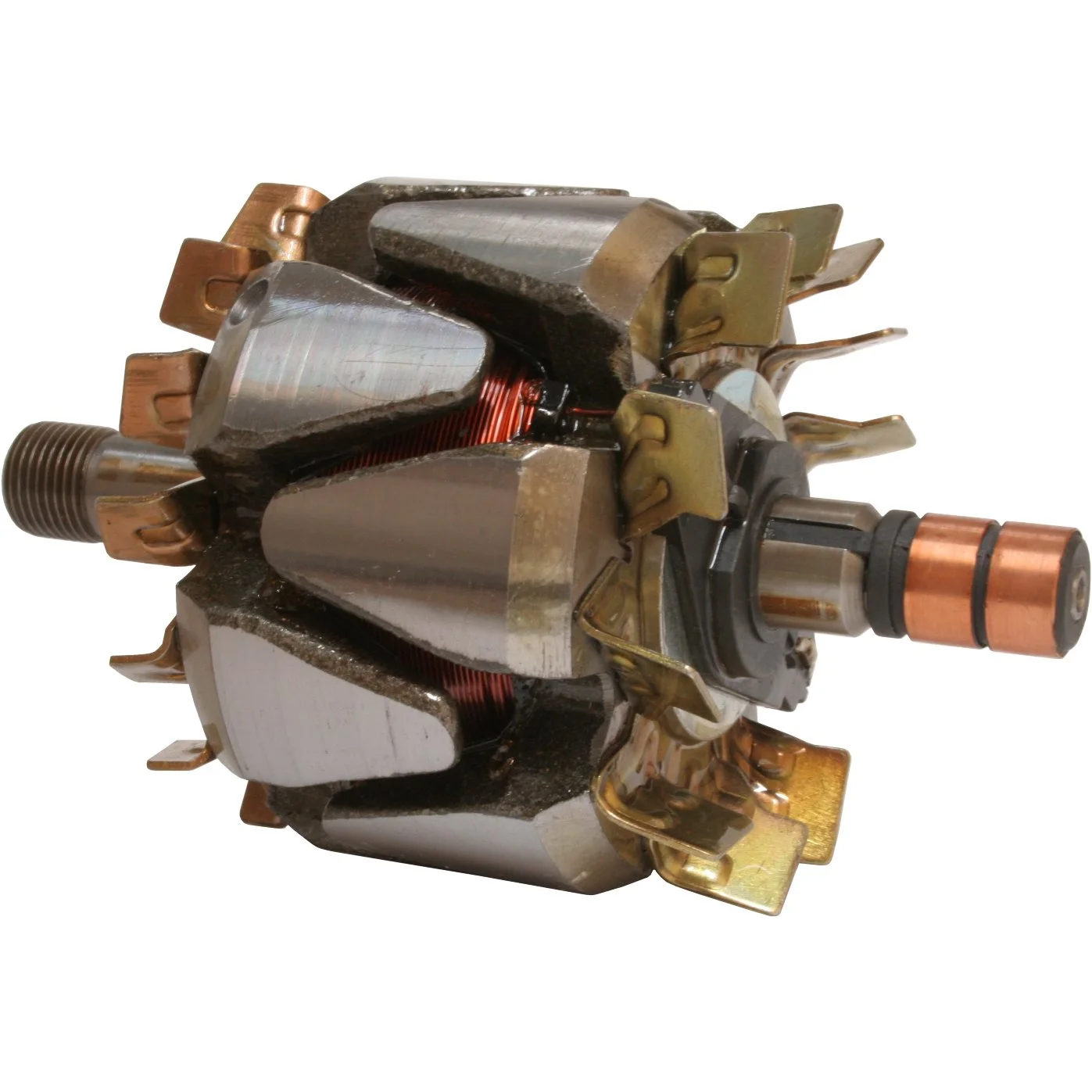

Armature / Rotor

Technical info:

Voltage: 14, Amp: 65/85, Rotation: CW, OD mm: 91.30

Description

Voltage: 14
Amp: 65/85
OD mm: 91.30
Height mm: 52.30
Radiator fan: w/
Rotation: CW
Total length mm: 153.00
Shaft dia.: 17.00
Thread size: M17-1.50
Thread length mm: 18.00
Windings: 402
Core dia.: 49.00
Prod. info: N/A
Servicing: A115I

Files

  • OEM
    F032136674, 83610601, 83615091, 85561411, 85561421, 85562071, 85562131, 85562208, 85562270, 85562283, 083631271000, 085561411010, 085561421010, 085562071010, 085562131010, 085562208010, 085562270010, 085562283010

  • Normalised article numbler
    ar4002, ar4002mm, f032136674, wrt6580, wrt67006, 83610601, 83615091, 85561411, 85561421, 85562071, 85562131, 85562208, 85562270, 85562283, 083631271000, 085561411010, 085561421010, 085562071010, 085562131010, 085562208010, 085562270010, 085562283010
  • Description
    Voltage: 14
    Amp: 65/85
    OD mm: 91.30
    Height mm: 52.30
    Radiator fan: w/
    Rotation: CW
    Total length mm: 153.00
    Shaft dia.: 17.00
    Thread size: M17-1.50
    Thread length mm: 18.00
    Windings: 402
    Core dia.: 49.00
    Prod. info: N/A
    Servicing: A115I

    Files

  • Suitable for these vehicles

    • OEM
      F032136674, 83610601, 83615091, 85561411, 85561421, 85562071, 85562131, 85562208, 85562270, 85562283, 083631271000, 085561411010, 085561421010, 085562071010, 085562131010, 085562208010, 085562270010, 085562283010

    • Normalised article numbler
      ar4002, ar4002mm, f032136674, wrt6580, wrt67006, 83610601, 83615091, 85561411, 85561421, 85562071, 85562131, 85562208, 85562270, 85562283, 083631271000, 085561411010, 085561421010, 085562071010, 085562131010, 085562208010, 085562270010, 085562283010
