Article no.: F032137287

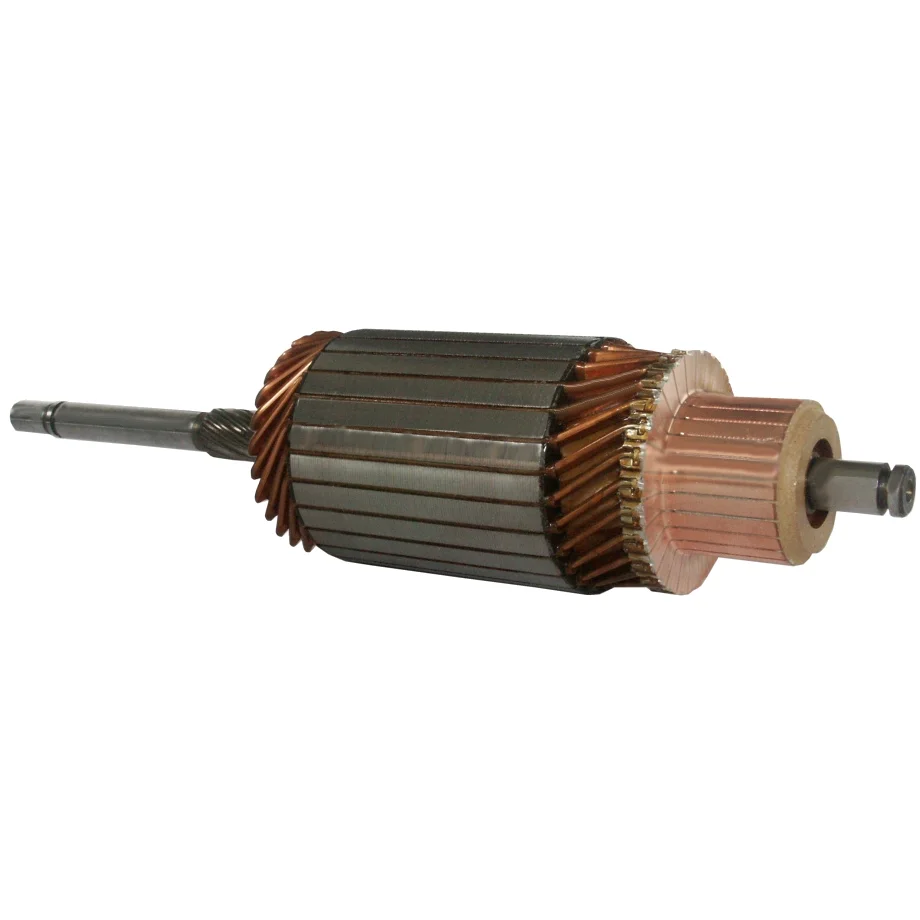

Armature / Rotor

Technical info:

Voltage: 18, kW: 4.0, Rotation: CW, Core diameter: 75.00

Description

Voltage: 18
kW: 4.0
Core diameter: 75.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 14.10
Shaft diameter / D.E. outside: 12.50
Shaft diameter: 18.90
Shaft length: 337.00
No. / splines: 10
Rotation: CW
Distance / commutator: 22.80
Commutator diameter / bar lane: 45.00
Height / bar lane: 35.60
No. / bars: 27
Remarks: 24 V: HC-CARGO 131309.
