Article no.: F032137948

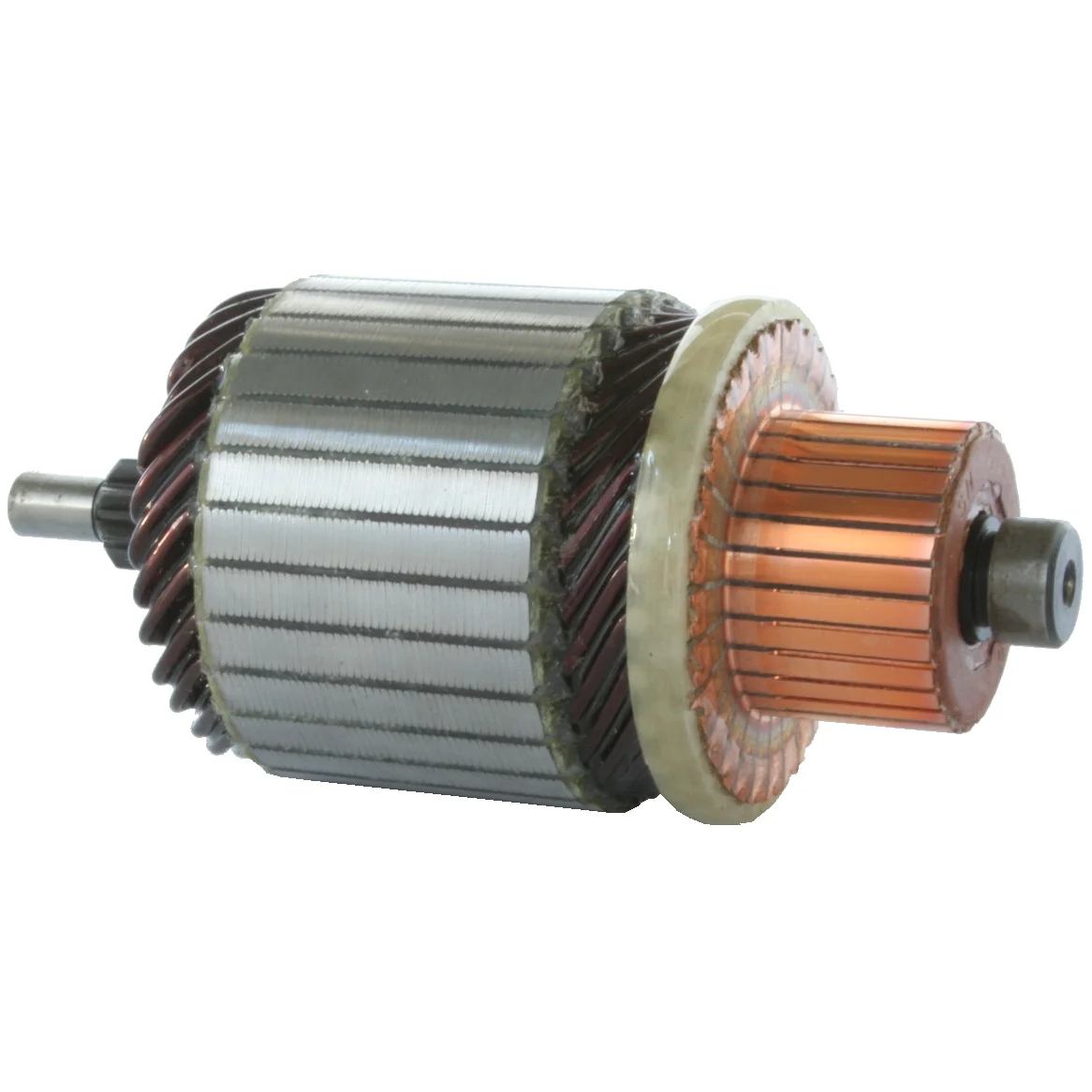

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 8, Rotation: CW/CCW

Description

Voltage: 12
kW: 1.4
Core diameter: 50.85
Shaft diameter/C.E.: 12.00
Shaft diameter/D.E. outside: 6.70
Shaft length: 111.20
Rotation: CW/CCW
Number of teeth: 8
Dis. / Commutator: 8.30
Commutator diameter / bar lane: 29.60
Bar distance: 1.80
Bar cross distance: 36.30
Height / bar lane: 18.00
Number of bars: 29

Files

  • OEM
    F032137948, 2114-11111, 2114-21111, 2114-51300, 23310-0m300, 23310-31u00, 129698-77101

  • Normalised article numbler
    am3301, am3308, am33081, arm008, f032137948, f042040043, f042s40043, sa2010, wsa19517, 233100m300, 618114, 2331031u00, 211411111, 211421111, 211451300, 12969877101
  • Description
    Voltage: 12
    kW: 1.4
    Core diameter: 50.85
    Shaft diameter/C.E.: 12.00
    Shaft diameter/D.E. outside: 6.70
    Shaft length: 111.20
    Rotation: CW/CCW
    Number of teeth: 8
    Dis. / Commutator: 8.30
    Commutator diameter / bar lane: 29.60
    Bar distance: 1.80
    Bar cross distance: 36.30
    Height / bar lane: 18.00
    Number of bars: 29

    Files

  • Suitable for these vehicles

    • OEM
      F032137948, 2114-11111, 2114-21111, 2114-51300, 23310-0m300, 23310-31u00, 129698-77101

    • Normalised article numbler
      am3301, am3308, am33081, arm008, f032137948, f042040043, f042s40043, sa2010, wsa19517, 233100m300, 618114, 2331031u00, 211411111, 211421111, 211451300, 12969877101
