Article no.: F032138417

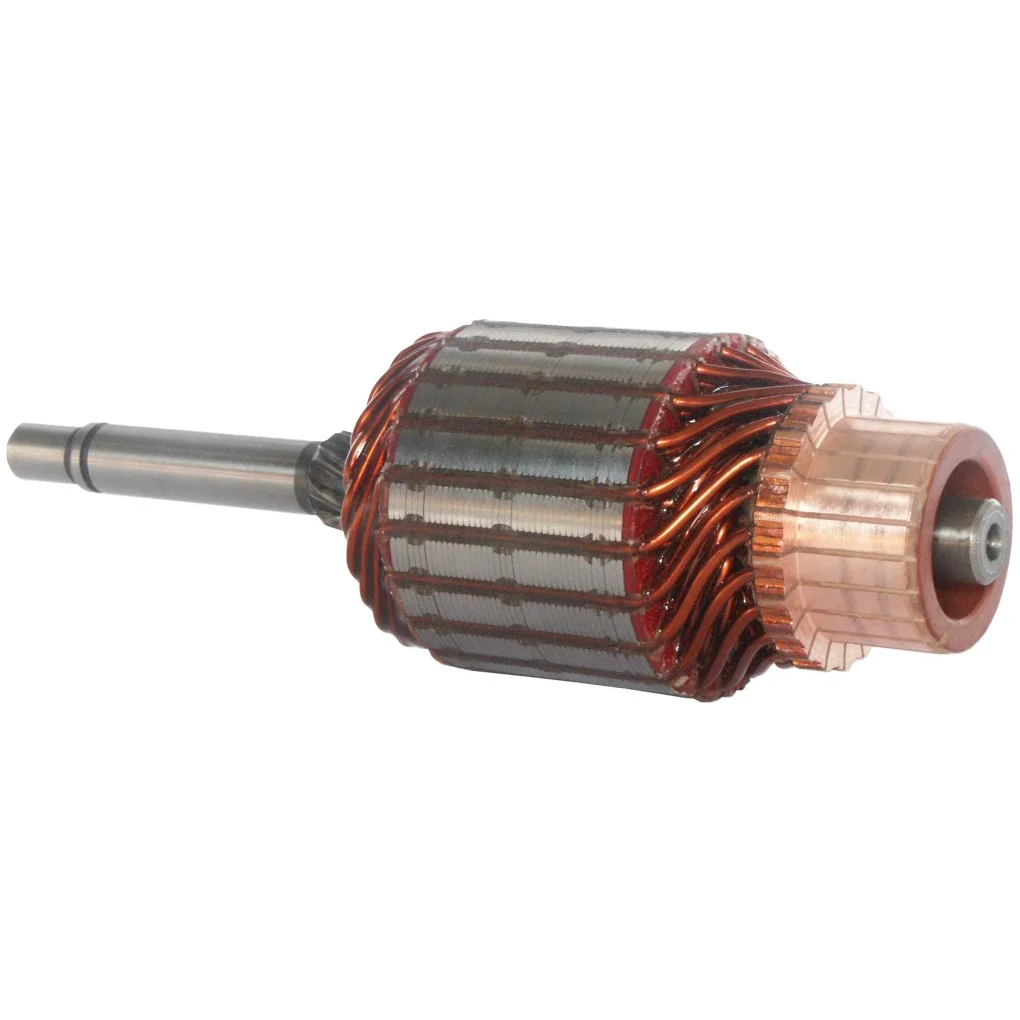

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.8, Rotation: CW, Core diameter: 53.80

Description

Voltage: 12
kW: 0.8
Core diameter: 53.80
Shaft diameter / Center of Engine: 12.00
Shaft diameter / Drive End inside: 12.00
Shaft diameter / Drive End outside: 10.00
Shaft diameter: 18.00
Shaft length: 177.50
Number / splines: 8
Rotation: clockwise
Distance / commutator: 4.00
Commutator diameter / bar lane: 33.00
Bar distance: 2.30
Bar cross distance: 32.70
Height / bar lane: 18.20
Number / bars: 21

Files

  • OEM
    F032138417, M00106T04771, M00106T08371, m106t04771, m106t08371, m106x52271

  • Normalised article numbler
    f032138417, m00106t04771, m00106t08371, m106t04771, m106t08371, m106x52271, wsa19917
  • Description
    Voltage: 12
    kW: 0.8
    Core diameter: 53.80
    Shaft diameter / Center of Engine: 12.00
    Shaft diameter / Drive End inside: 12.00
    Shaft diameter / Drive End outside: 10.00
    Shaft diameter: 18.00
    Shaft length: 177.50
    Number / splines: 8
    Rotation: clockwise
    Distance / commutator: 4.00
    Commutator diameter / bar lane: 33.00
    Bar distance: 2.30
    Bar cross distance: 32.70
    Height / bar lane: 18.20
    Number / bars: 21

    Files

  • Suitable for these vehicles

    • OEM
      F032138417, M00106T04771, M00106T08371, m106t04771, m106t08371, m106x52271

    • Normalised article numbler
      f032138417, m00106t04771, m00106t08371, m106t04771, m106t08371, m106x52271, wsa19917
