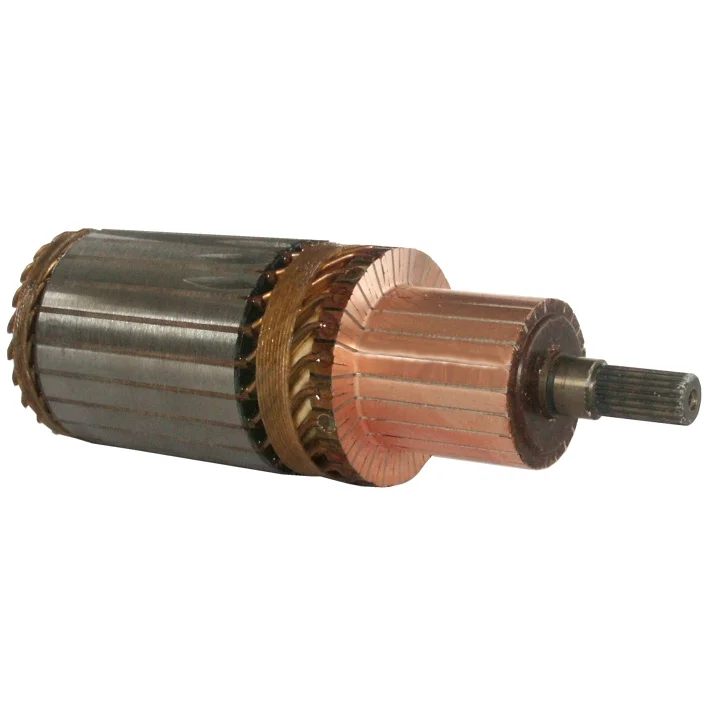

Article no.: F032138675

Armature / Rotor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 18, Rotation: CW

Description

Voltage: 24
kW: 5.5
Core diameter: 65.00
Shaft diameter/C.E.: 10.00
Shaft diameter/D.E. inside: 15.00
Shaft diameter/D.E. outside: 13.00
Shaft diameter: 16.20
Shaft length: 210.50
Rotation: CW
Number of teeth: 18
Distance/commutator: 36.70
Commutator diameter/bar lane: 43.90
Bar distance: 2.50
Bar cross distance: 45.00
Height/bar lane: 42.60
Number of bars: 23

Files

  • OEM
    F032138675, 1-81121044-0, 028200-5250

  • Normalised article numbler
    am9103, am91031, f032138675, f042040104, f042040105, f042s40104, f042s40105, sa6006, wsa19308, 618208, 0282005250, 1811210440
  • Description
    Voltage: 24
    kW: 5.5
    Core diameter: 65.00
    Shaft diameter/C.E.: 10.00
    Shaft diameter/D.E. inside: 15.00
    Shaft diameter/D.E. outside: 13.00
    Shaft diameter: 16.20
    Shaft length: 210.50
    Rotation: CW
    Number of teeth: 18
    Distance/commutator: 36.70
    Commutator diameter/bar lane: 43.90
    Bar distance: 2.50
    Bar cross distance: 45.00
    Height/bar lane: 42.60
    Number of bars: 23

    Files

  • Suitable for these vehicles

    • OEM
      F032138675, 1-81121044-0, 028200-5250

    • Normalised article numbler
      am9103, am91031, f032138675, f042040104, f042040105, f042s40104, f042s40105, sa6006, wsa19308, 618208, 0282005250, 1811210440
