Article no.: F032139398

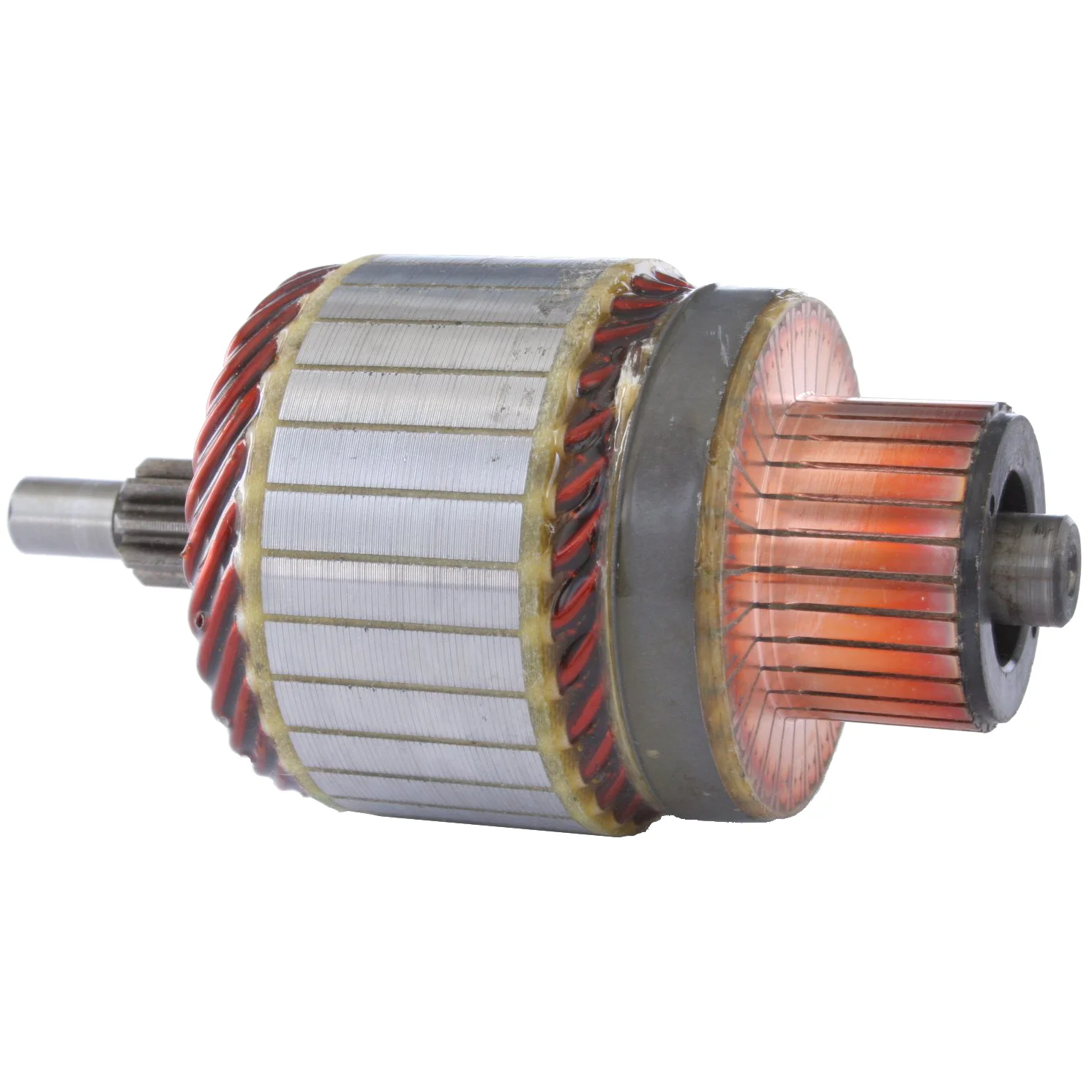

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW/CCW

Description

Voltage: 12
kW: 1.0
Core diameter: 53.75
Shaft diameter / Center of engine: 10.00
Shaft diameter / Outside of engine: 8.00
Shaft diameter: 13.60
Shaft length: 106.80
Rotation: CW/CCW
Number / teeth: 9
Distributor / commutator: 5.00
Commutator diameter / bar lane: 31.50
Bar distance: 2.00
Bar cross distance: 37.50
Height / bar lane: 18.30
Number / bars: 29

Files

  • OEM
    bpd4-18-x60, F032139398, m106t57671, m106x57671, m106x58771, md619164, 23310-0m210

  • Normalised article numbler
    am3501, am35011, bpd418x60, f032139398, f042040044, f042s40044, m106t57671, m106x57671, m106x58771, md619164, sa5013, sa5053s, wsa19916, 233100m210, 618317
  • Description
    Voltage: 12
    kW: 1.0
    Core diameter: 53.75
    Shaft diameter / Center of engine: 10.00
    Shaft diameter / Outside of engine: 8.00
    Shaft diameter: 13.60
    Shaft length: 106.80
    Rotation: CW/CCW
    Number / teeth: 9
    Distributor / commutator: 5.00
    Commutator diameter / bar lane: 31.50
    Bar distance: 2.00
    Bar cross distance: 37.50
    Height / bar lane: 18.30
    Number / bars: 29

    Files

  • Suitable for these vehicles

    • OEM
      bpd4-18-x60, F032139398, m106t57671, m106x57671, m106x58771, md619164, 23310-0m210

    • Normalised article numbler
      am3501, am35011, bpd418x60, f032139398, f042040044, f042s40044, m106t57671, m106x57671, m106x58771, md619164, sa5013, sa5053s, wsa19916, 233100m210, 618317
