Article no.: F032139434

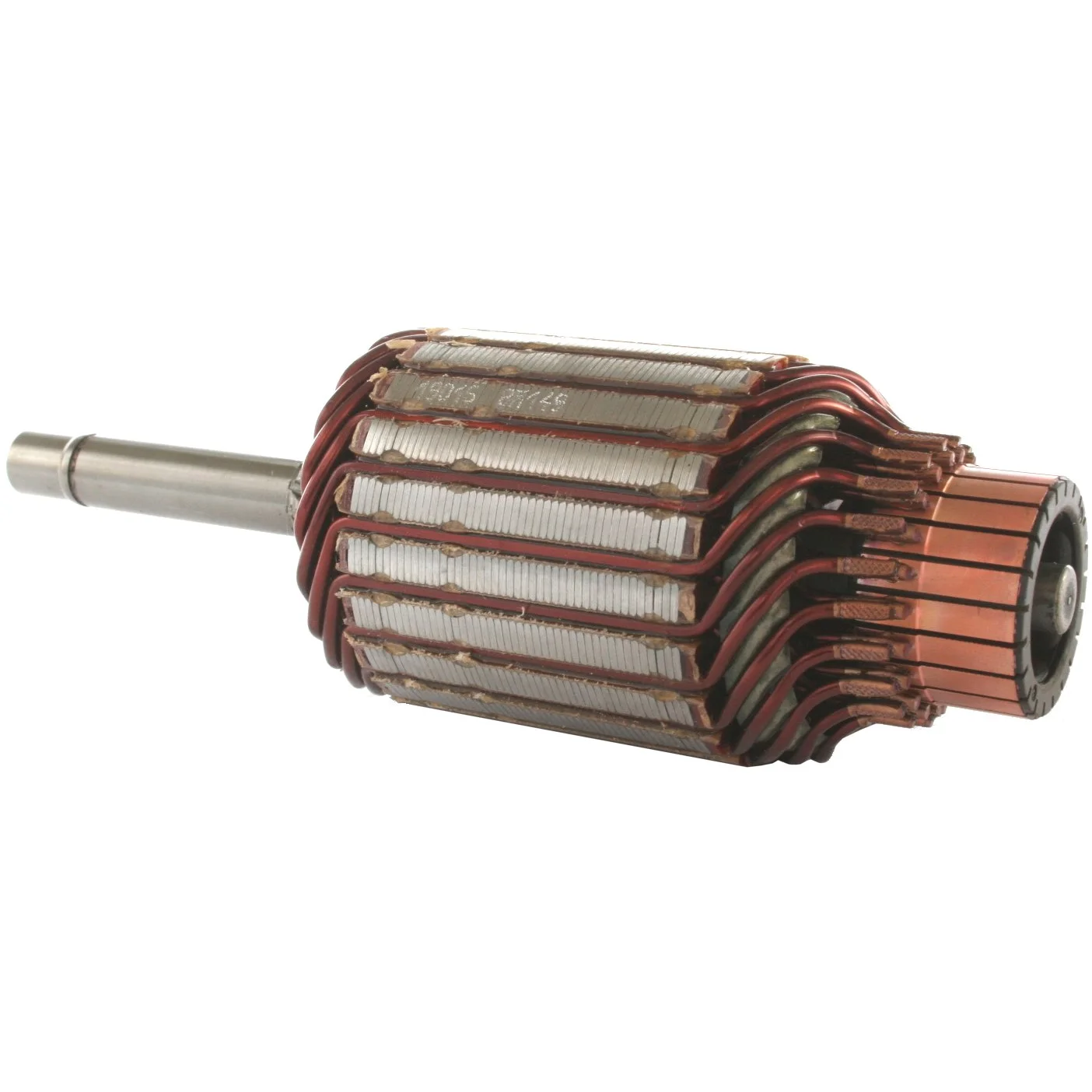

Armature / Rotor

Technical info:

Voltage: 12, kW: 0.85/1.0, Core diameter: 50.00, Shaft diameter/Center to Edge: 8.00

Description

Voltage: 12
kW: 0.85/1.0
Core diameter: 50.00
Shaft diameter / C.E.: 8.00
Shaft diameter / D.E. inside: 11.00
Shaft diameter / D.E. outside: 10.00
Shaft length: 155.50
Number / splines: 10
Dist. / commutator: 0.50
Commutator diameter / bar lane: 28.00
Bar distance: 2.15
Bar cross distance: 28.00
Height / bar lane: 12.40
Number / bars: 21
Remarks: Can only be used w/ drive: HC-CARGO 139477.

Files

  • Description
    Voltage: 12
    kW: 0.85/1.0
    Core diameter: 50.00
    Shaft diameter / C.E.: 8.00
    Shaft diameter / D.E. inside: 11.00
    Shaft diameter / D.E. outside: 10.00
    Shaft length: 155.50
    Number / splines: 10
    Dist. / commutator: 0.50
    Commutator diameter / bar lane: 28.00
    Bar distance: 2.15
    Bar cross distance: 28.00
    Height / bar lane: 12.40
    Number / bars: 21
    Remarks: Can only be used w/ drive: HC-CARGO 139477.

    Files

  • Suitable for these vehicles
