Article no.: F032230518

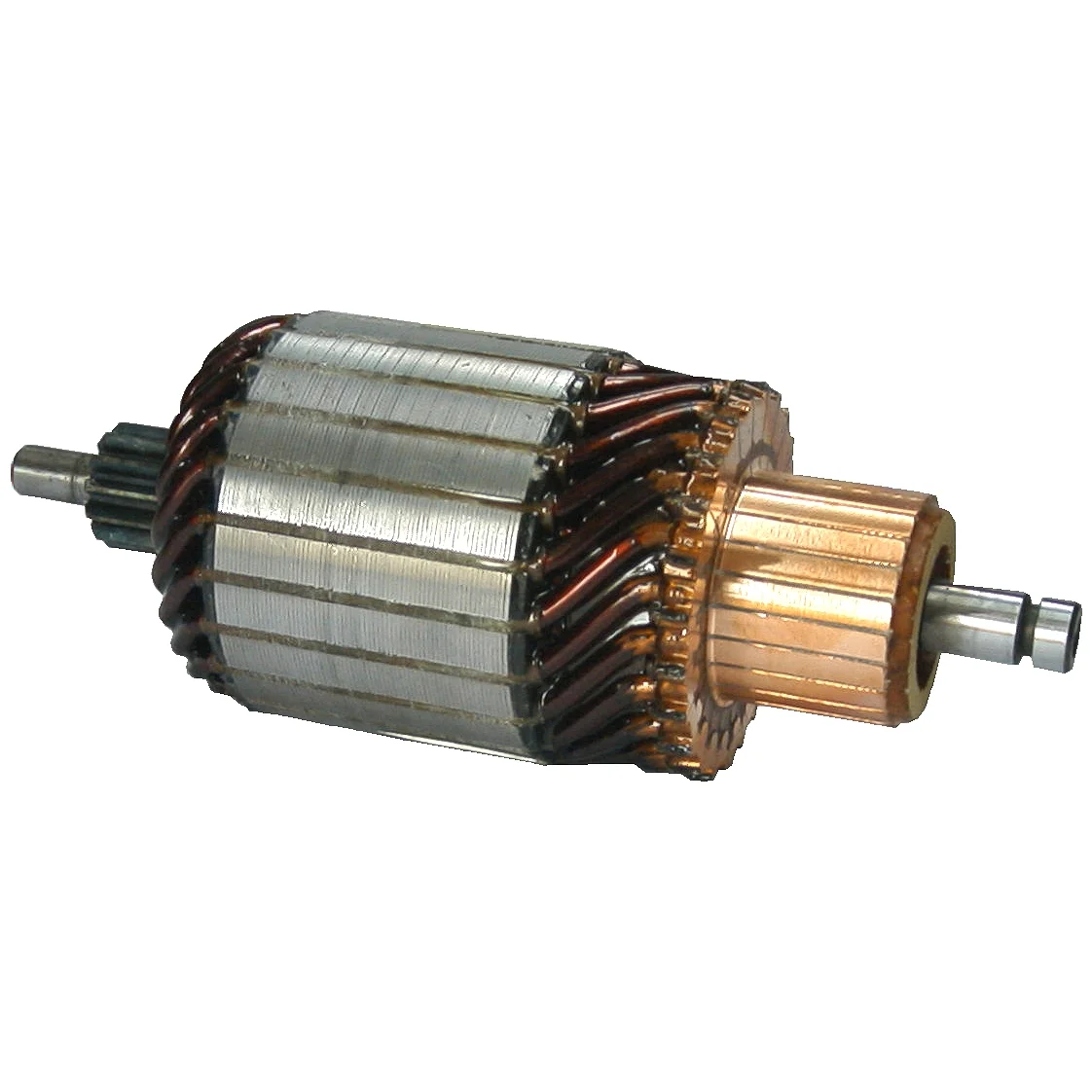

Armature / Rotor

Technical info:

Voltage: 12, kW: 1.7/1.8, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.7/1.8
Core diameter: 59.00
Shaft diameter / C.E.: 10.00
Shaft diameter / D.E. outside: 8.00
Shaft diameter: 18.20
Shaft length: 160.00
Rotation: CW
Number / teeth: 13
Dist. / commutator: 18.00
Commutator diameter / bar lane: 33.00
Bar distance: 3.45
Bar cross distance: 41.20
Height / bar lane: 22.00
Number / bars: 23
Remarks: 15 teeth: HC-CARGO 132814.
