Article no.: F032231138

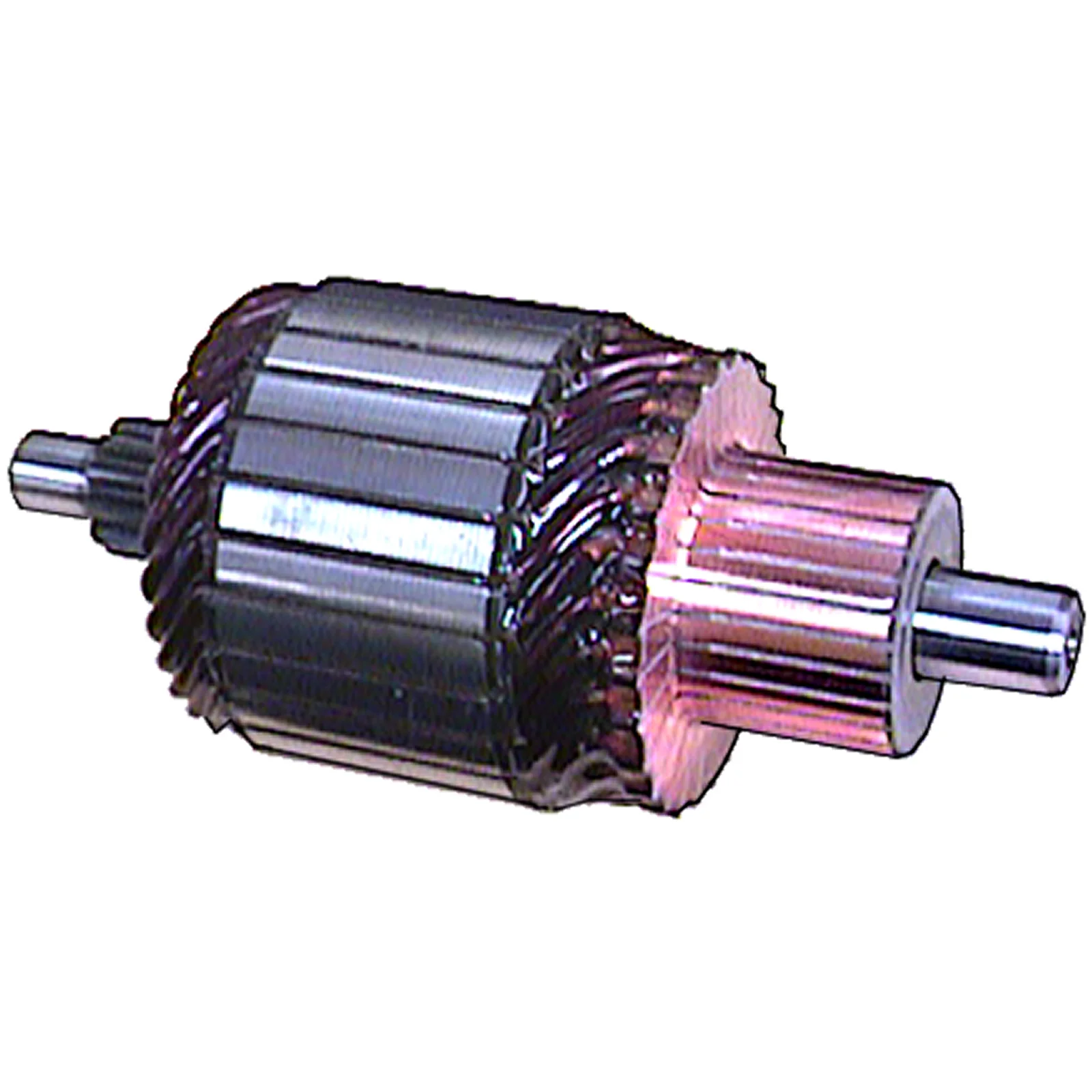

Armature / Rotor

Technical info:

Voltage: 12, kW: N/A, No./teeth: 11, Rotation: CW/CCW

Description

Voltage: 12
kW: N/A
Core diameter: 55.50
Shaft diameter/C.E.: 12.00
Shaft diameter/D.E. outside: 10.00
Shaft diameter: 17.80
Shaft length: 127.00
Rotation: CW/CCW
Number of teeth: 11
Dist./commutator: 15.80
Commutator diameter/bar lane: 30.00
Bar distance: 2.50
Bar cross distance: 41.50
Height/bar lane: 23.00
Number of bars: 28

Files

  • Description
    Voltage: 12
    kW: N/A
    Core diameter: 55.50
    Shaft diameter/C.E.: 12.00
    Shaft diameter/D.E. outside: 10.00
    Shaft diameter: 17.80
    Shaft length: 127.00
    Rotation: CW/CCW
    Number of teeth: 11
    Dist./commutator: 15.80
    Commutator diameter/bar lane: 30.00
    Bar distance: 2.50
    Bar cross distance: 41.50
    Height/bar lane: 23.00
    Number of bars: 28

    Files

  • Suitable for these vehicles
