Article no.: F032231272

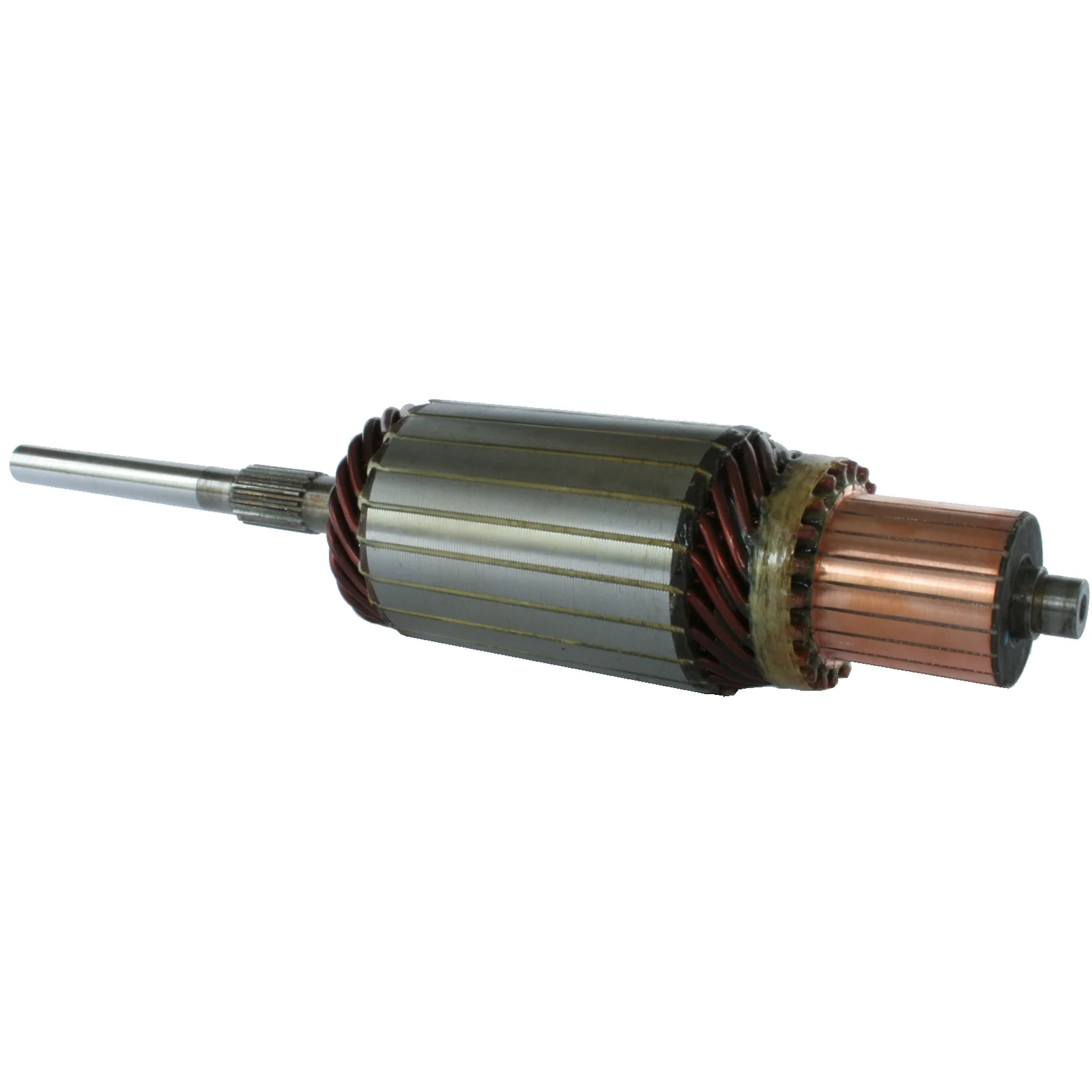

Armature / Rotor

Technical info:

Voltage: 24, kW: 6.7, Rotation: CW, Core dia.: 75.00

Description

Voltage: 24
kilowatt: 6.7
Core diameter: 75.00
Shaft diameter / C.E.: 15.00
Shaft diameter / D.E. inside: 15.20
Shaft diameter / D.E. outside: 15.90
Shaft diameter: 22.00
Shaft length: 394.00
Number / splines: 19
Rotation: CW
Dist. / Armature: 14.50
Armature diameter / bar lane: 46.20
Bar distance: 4.30
Bar cross distance: 50.60
Height / bar lane: 45.00
Number / bars: 21

Files

  • Description
    Voltage: 24
    kilowatt: 6.7
    Core diameter: 75.00
    Shaft diameter / C.E.: 15.00
    Shaft diameter / D.E. inside: 15.20
    Shaft diameter / D.E. outside: 15.90
    Shaft diameter: 22.00
    Shaft length: 394.00
    Number / splines: 19
    Rotation: CW
    Dist. / Armature: 14.50
    Armature diameter / bar lane: 46.20
    Bar distance: 4.30
    Bar cross distance: 50.60
    Height / bar lane: 45.00
    Number / bars: 21

    Files

  • Suitable for these vehicles
