Article no.: F032231493

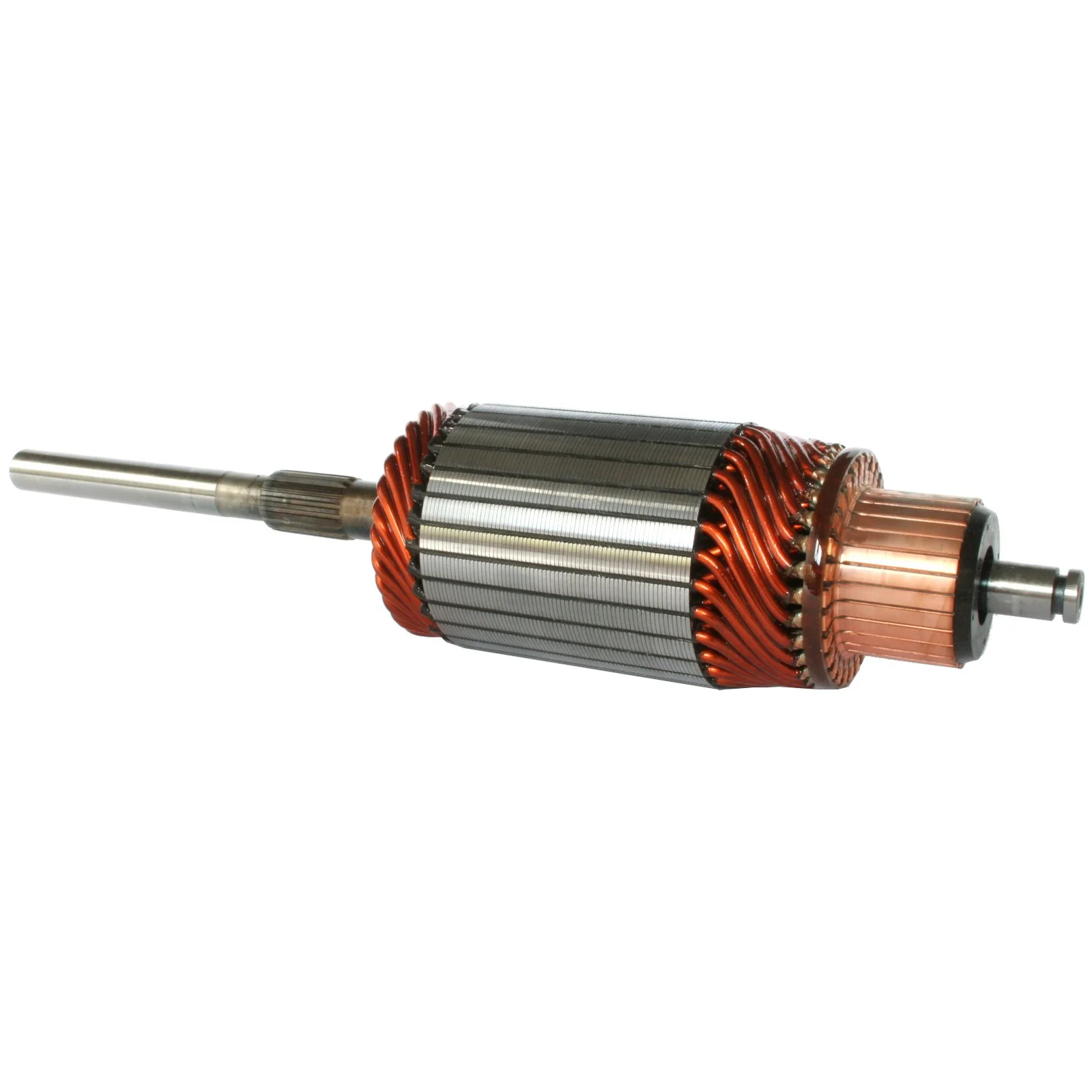

Armature / Rotor

Technical info:

Voltage: 24, kW: 6.2, Rotation: CW, Core dia.: 75.00

Description

Voltage: 24
kW: 6.2
Core diameter: 75.00
Shaft diameter / C.E.: 14.00
Shaft diameter / D.E. inside: 15.90
Shaft diameter / D.E. outside: 15.90
Shaft diameter: 22.00
Shaft length: 370.00
Number / splines: 19
Rotation: CW
Distance / commutator: 24.00
Commutator diameter / bar lane: 45.00
Bar distance: 4.00
Bar cross distance: 54.20
Height / bar lane: 30.00
Number / bars: 29

Files

  • Description
    Voltage: 24
    kW: 6.2
    Core diameter: 75.00
    Shaft diameter / C.E.: 14.00
    Shaft diameter / D.E. inside: 15.90
    Shaft diameter / D.E. outside: 15.90
    Shaft diameter: 22.00
    Shaft length: 370.00
    Number / splines: 19
    Rotation: CW
    Distance / commutator: 24.00
    Commutator diameter / bar lane: 45.00
    Bar distance: 4.00
    Bar cross distance: 54.20
    Height / bar lane: 30.00
    Number / bars: 29

    Files

  • Suitable for these vehicles
