Article no.: F032233475

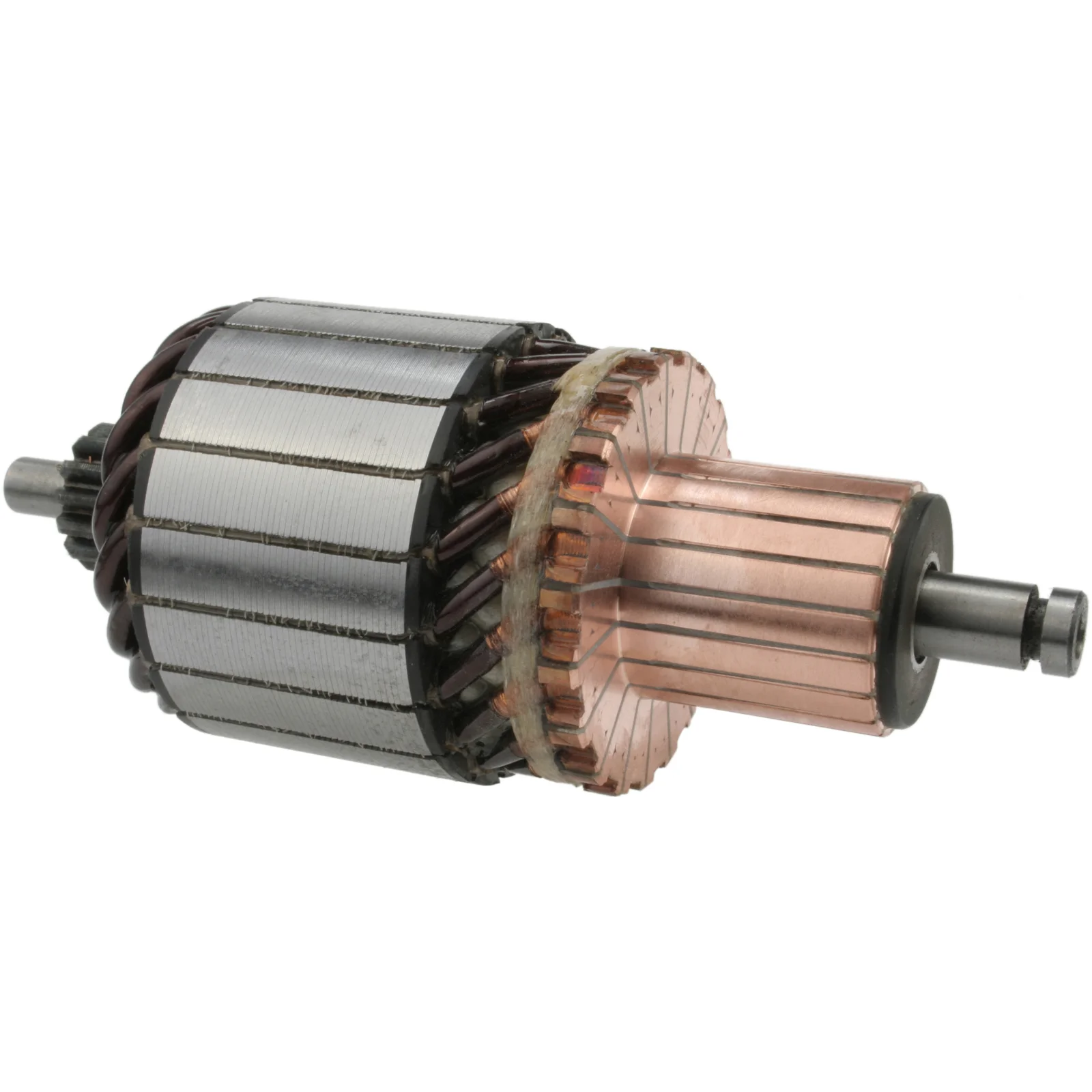

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 14, Rotation: CW

Description

Voltage: 12
kW: 2.3
Core diameter: 58.00
Shaft diameter / C.E.: 10.00
Shaft diameter / D.E. outside: 8.00
Shaft length: 144.00
Rotation: CW
Number / teeth: 14
Distributor / commutator: 17.50
Commutator diameter / bar lane: 30.50
Bar spacing: 3.70
Bar cross spacing: 39.20
Height / bar lane: 28.90
Number / bars: 19
