Article no.: F032233886

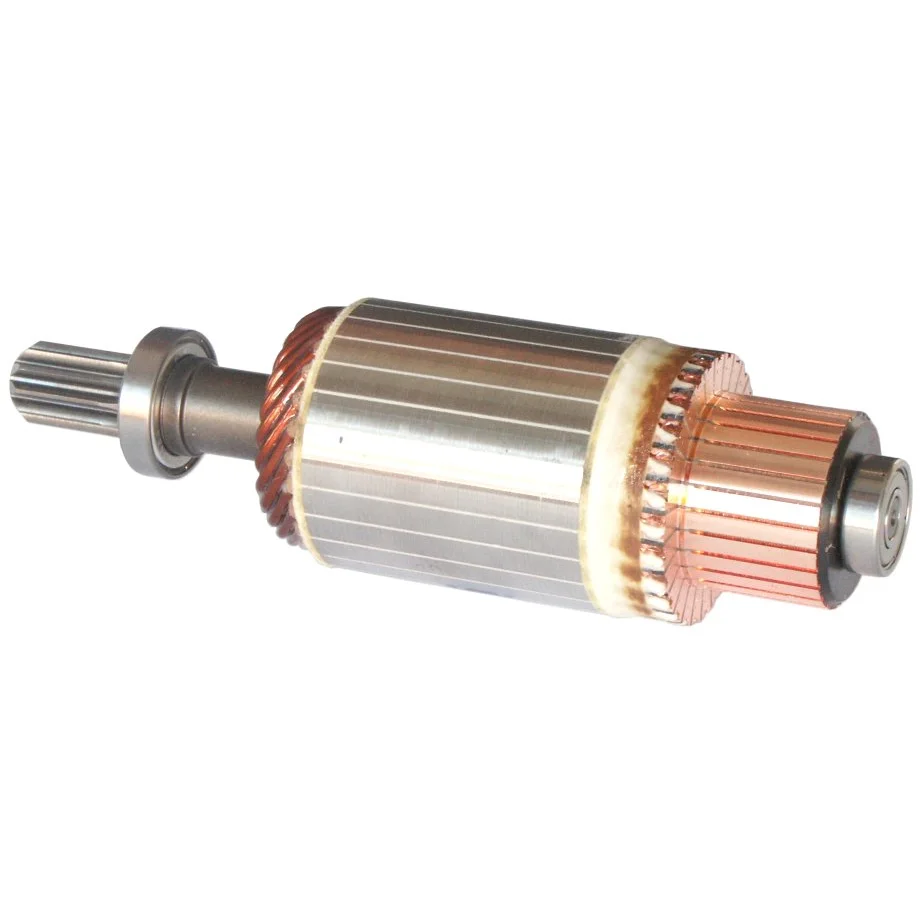

Armature / Rotor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.3
Core diameter: 52.70
Shaft diameter / C.E.: 8.00
Shaft diameter / D.E. inside: 19.70
Shaft length: 181.00
Rotation: CW
Number / teeth: 11
Dist. / commutator: 7.50
Commutator diameter / bar lane: 37.20
Bar distance: 1.95
Bar cross distance: 37.50
Height / bar lane: 27.30
Number / bars: 27

Files

  • OEM
    F032233886, 2130-61004, 2130-81004, 23310-0y000, 129900-77400

  • Normalised article numbler
    am6010, f032233886, f042040066, f042040067, f042s40066, f042s40067, wsa19516, wsa1973, 233100y000, 618117, 213061004, 213081004, 12990077400
  • Description
    Voltage: 12
    kW: 2.3
    Core diameter: 52.70
    Shaft diameter / C.E.: 8.00
    Shaft diameter / D.E. inside: 19.70
    Shaft length: 181.00
    Rotation: CW
    Number / teeth: 11
    Dist. / commutator: 7.50
    Commutator diameter / bar lane: 37.20
    Bar distance: 1.95
    Bar cross distance: 37.50
    Height / bar lane: 27.30
    Number / bars: 27

    Files

  • Suitable for these vehicles

    • OEM
      F032233886, 2130-61004, 2130-81004, 23310-0y000, 129900-77400

    • Normalised article numbler
      am6010, f032233886, f042040066, f042040067, f042s40066, f042s40067, wsa19516, wsa1973, 233100y000, 618117, 213061004, 213081004, 12990077400
