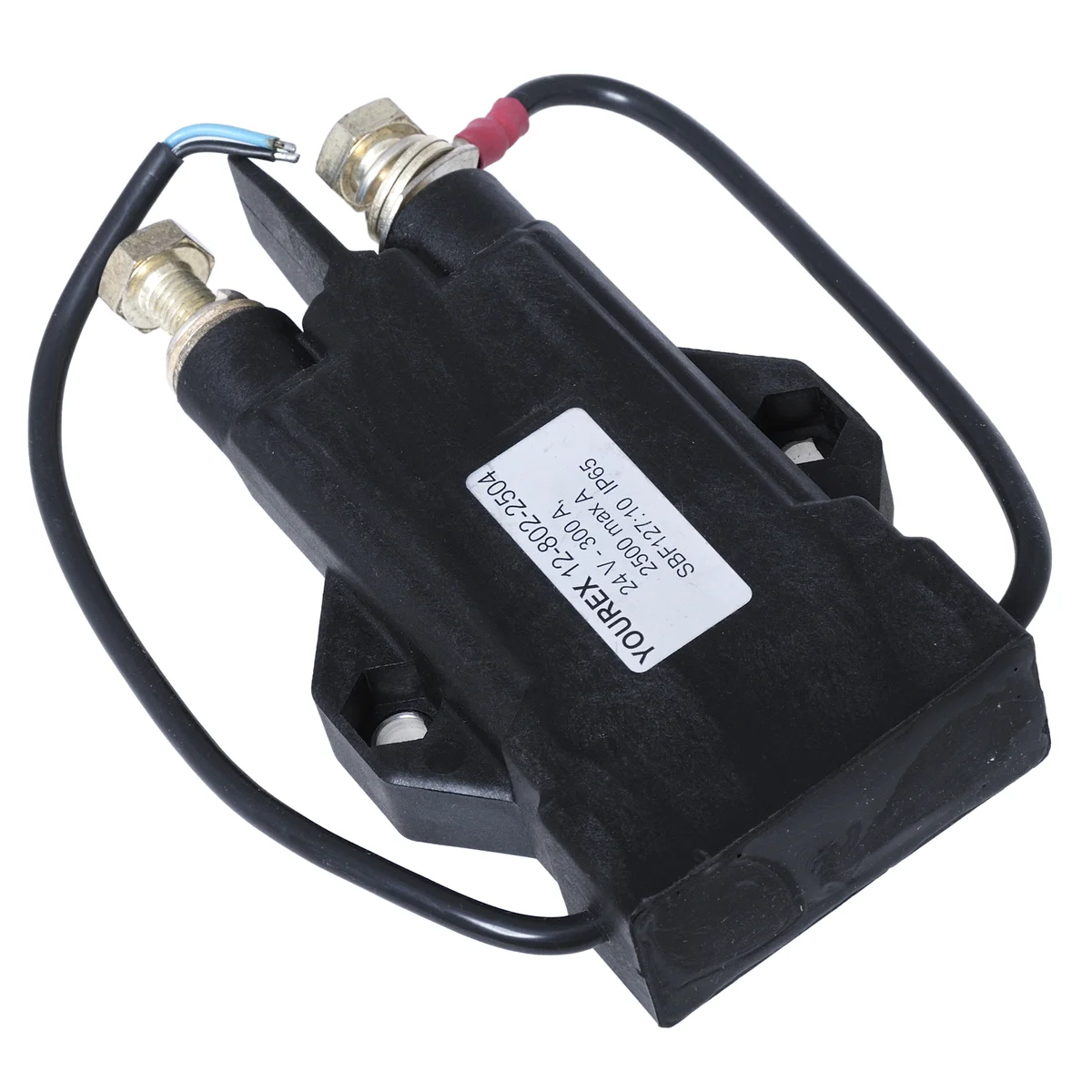

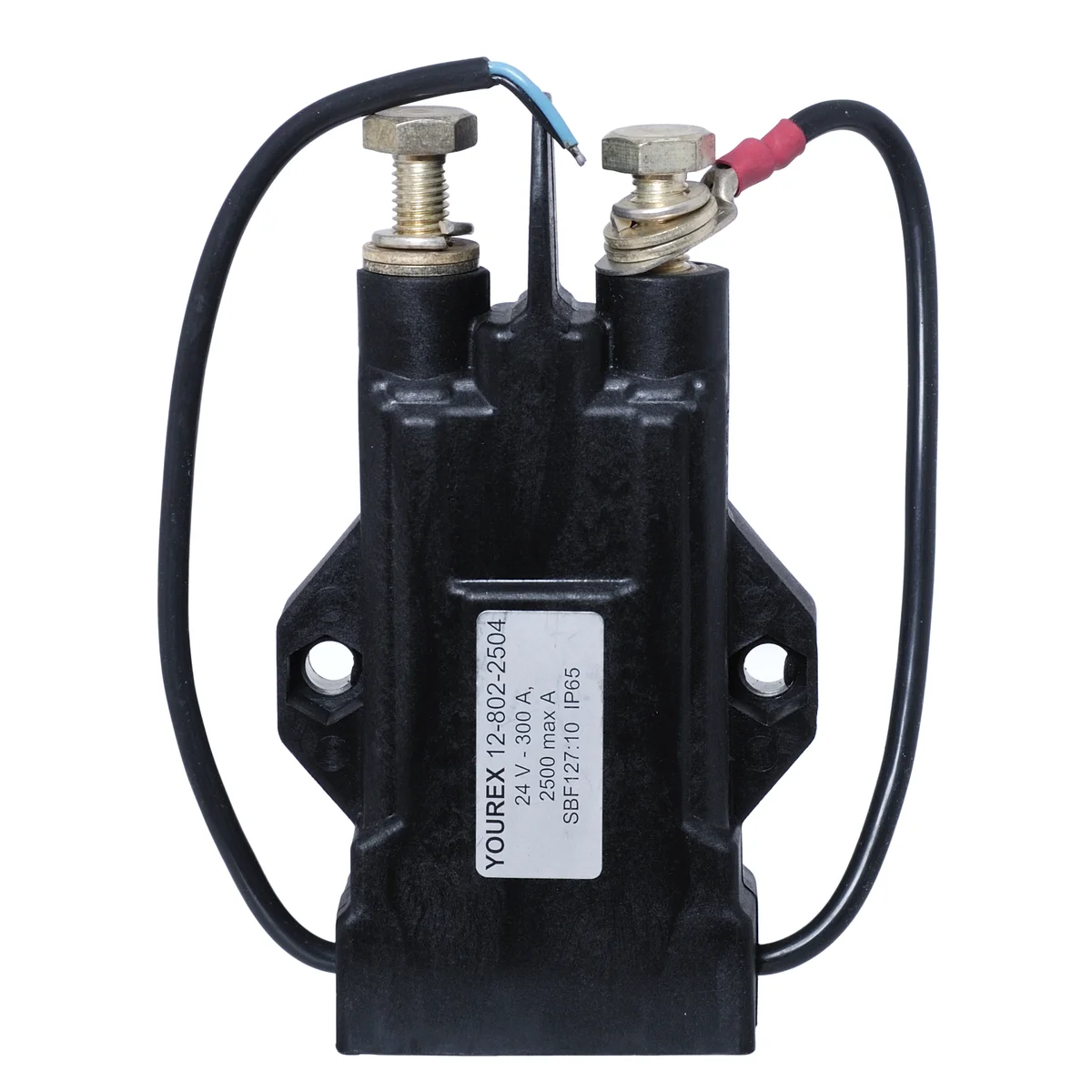

Battery switch 24V-300A
Battery switch 24V-300A
Battery switch 24V-300A
Battery switch 24V-300A
Article no.: 12-802-2504

Battery switch 24V-300A

Technical info:

24V-300A continuous fixed, (2500A in 10 seconds.)

Description

Battery switch 24V-300A 24V-300A continuous fixed, (2500A for 10 seconds) 160x92x33mm., 600g. Terminal screws M10 silver-plated. Fixed type, Meets requirements SBF 127:10. Electromagnetic switch Bistable, Built-in impulse relay, No current consumption in ON position. Seal: IP68, Vibration-resistant, Salt spray tested 600 hours, Temperature range -40* - + 85*. Longevity: 100,000 cycles. Switches only on (+) side

Files

  • Description
    Battery switch 24V-300A 24V-300A continuous fixed, (2500A for 10 seconds) 160x92x33mm., 600g. Terminal screws M10 silver-plated. Fixed type, Meets requirements SBF 127:10. Electromagnetic switch Bistable, Built-in impulse relay, No current consumption in ON position. Seal: IP68, Vibration-resistant, Salt spray tested 600 hours, Temperature range -40* - + 85*. Longevity: 100,000 cycles. Switches only on (+) side

    Files

  • Suitable for these vehicles
