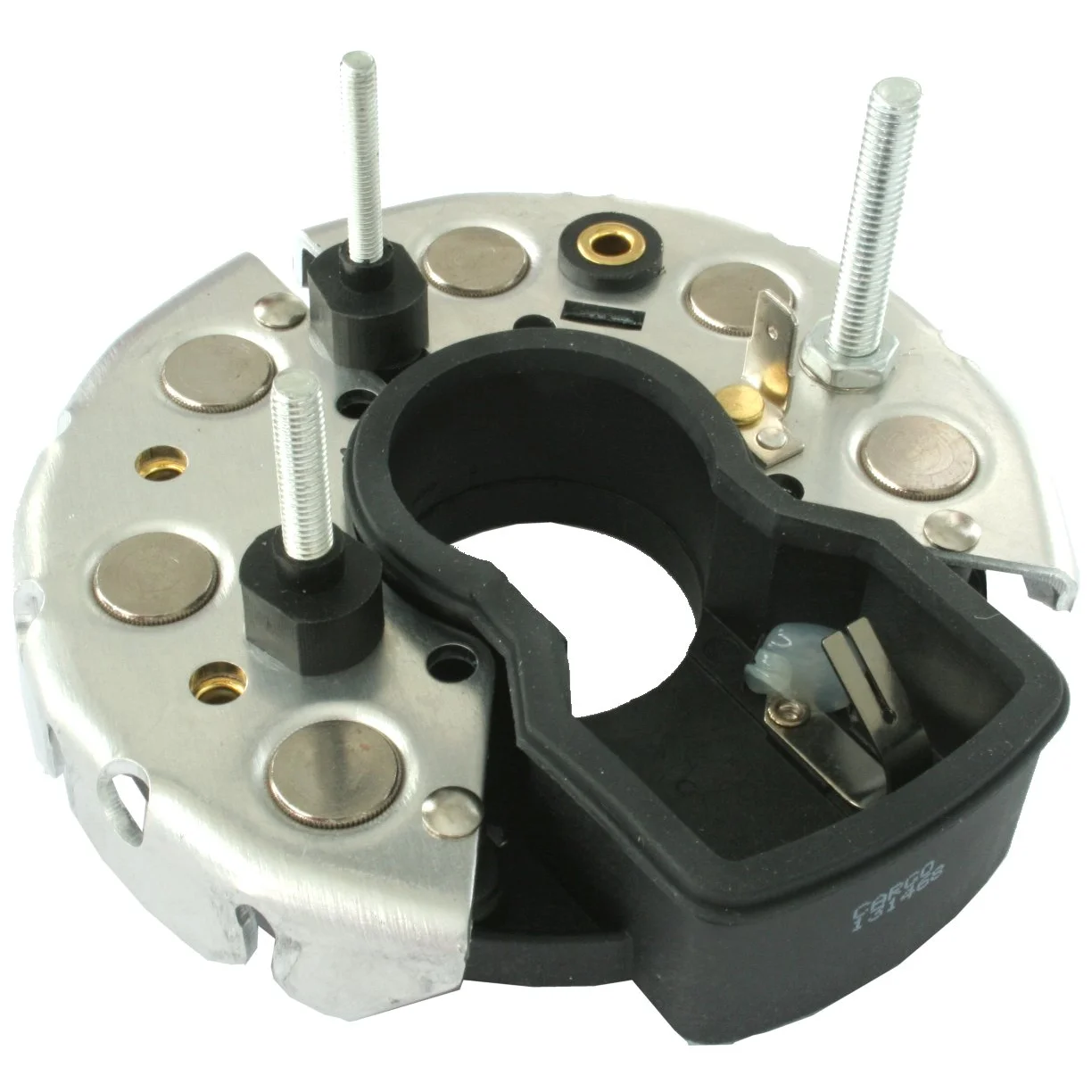

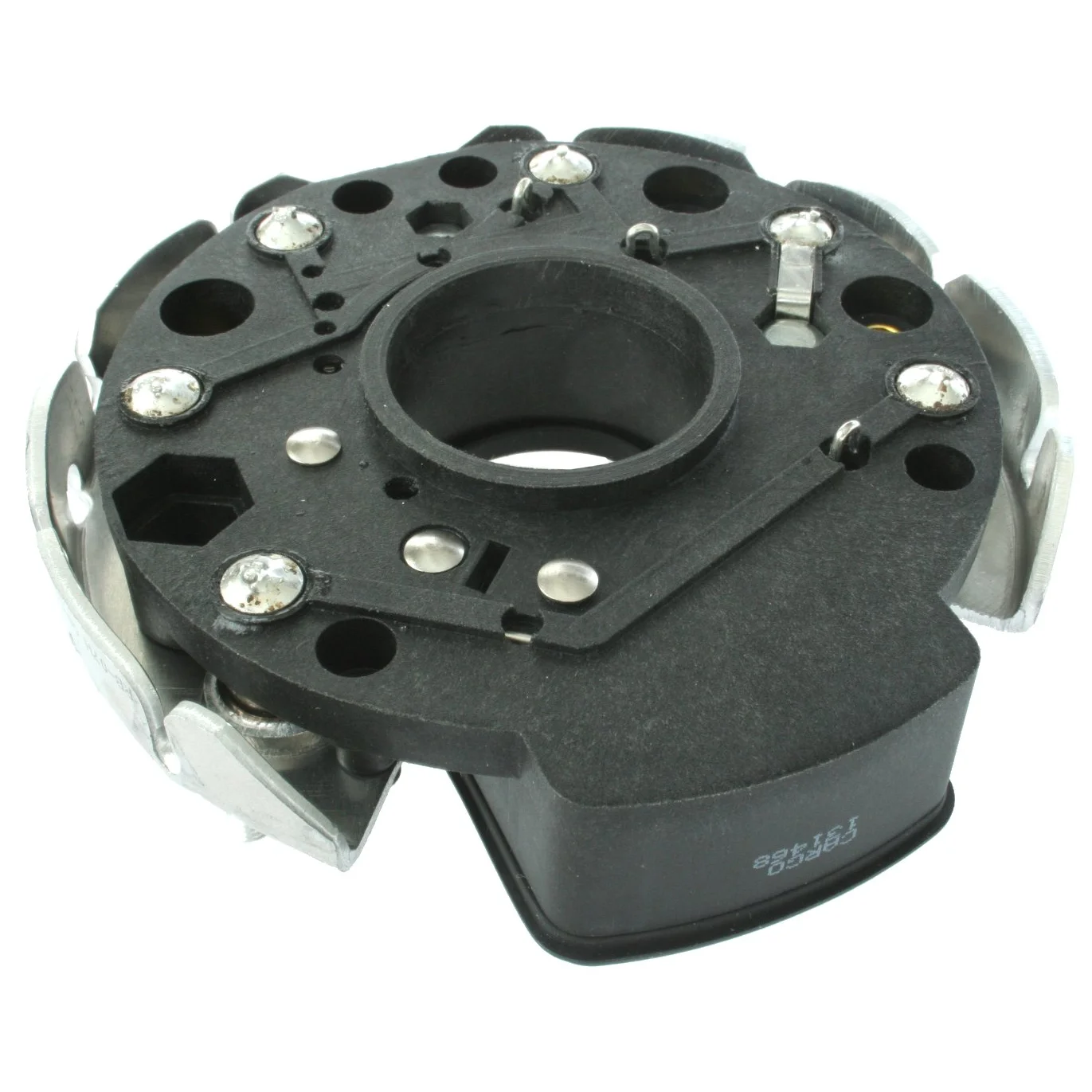

Diode rectifier
Diode rectifier
Article no.: F032131468

Diode rectifier

Technical info:

Voltage: 28, Diode A: 35, OD mm: 114.00, ID mm: 35.50

Description

Voltage: 28
Diode A: 35
OD mm: 114.00
ID mm: 35.50
Mount. dist.: 20.00
B+ type: Bolt
B+ size: M6
B+ Length mm: 34.00
D+ type: Bolt
D+ Size: M4
D+ Length mm: 25.00
W type: Bolt
W Size: M5
Connections for stator: 3

Files

  • OEM
    AL30419, F032131468, RB-07H, 244488, 1127011095, 1127011096, 1127011097, 1127011103, 1127320147, 1127320331, 1127320337, 1127320356, 1127320358, 1127320364, 1127320365, 1127320368, 1127320375, 1127320398, 1127320540, 1127320541, 1127320598, 1127320604, 1127320996

  • Normalised article numbler
    al30419, arc0007, arc0014, f032131468, f042310049, f042a10049, ga1541, ibr314, ibr326, ik3541, rb07h, rc36, rec2204, rtf3979a, 139113, 139506, 244488, 319140, 1127011095, 1127011096, 1127011097, 1127011103, 1127320147, 1127320331, 1127320337, 1127320356, 1127320358, 1127320364, 1127320365, 1127320368, 1127320375, 1127320398, 1127320540, 1127320541, 1127320598, 1127320604, 1127320996
  • Description
    Voltage: 28
    Diode A: 35
    OD mm: 114.00
    ID mm: 35.50
    Mount. dist.: 20.00
    B+ type: Bolt
    B+ size: M6
    B+ Length mm: 34.00
    D+ type: Bolt
    D+ Size: M4
    D+ Length mm: 25.00
    W type: Bolt
    W Size: M5
    Connections for stator: 3

    Files

  • Suitable for these vehicles

    • OEM
      AL30419, F032131468, RB-07H, 244488, 1127011095, 1127011096, 1127011097, 1127011103, 1127320147, 1127320331, 1127320337, 1127320356, 1127320358, 1127320364, 1127320365, 1127320368, 1127320375, 1127320398, 1127320540, 1127320541, 1127320598, 1127320604, 1127320996

    • Normalised article numbler
      al30419, arc0007, arc0014, f032131468, f042310049, f042a10049, ga1541, ibr314, ibr326, ik3541, rb07h, rc36, rec2204, rtf3979a, 139113, 139506, 244488, 319140, 1127011095, 1127011096, 1127011097, 1127011103, 1127320147, 1127320331, 1127320337, 1127320356, 1127320358, 1127320364, 1127320365, 1127320368, 1127320375, 1127320398, 1127320540, 1127320541, 1127320598, 1127320604, 1127320996
