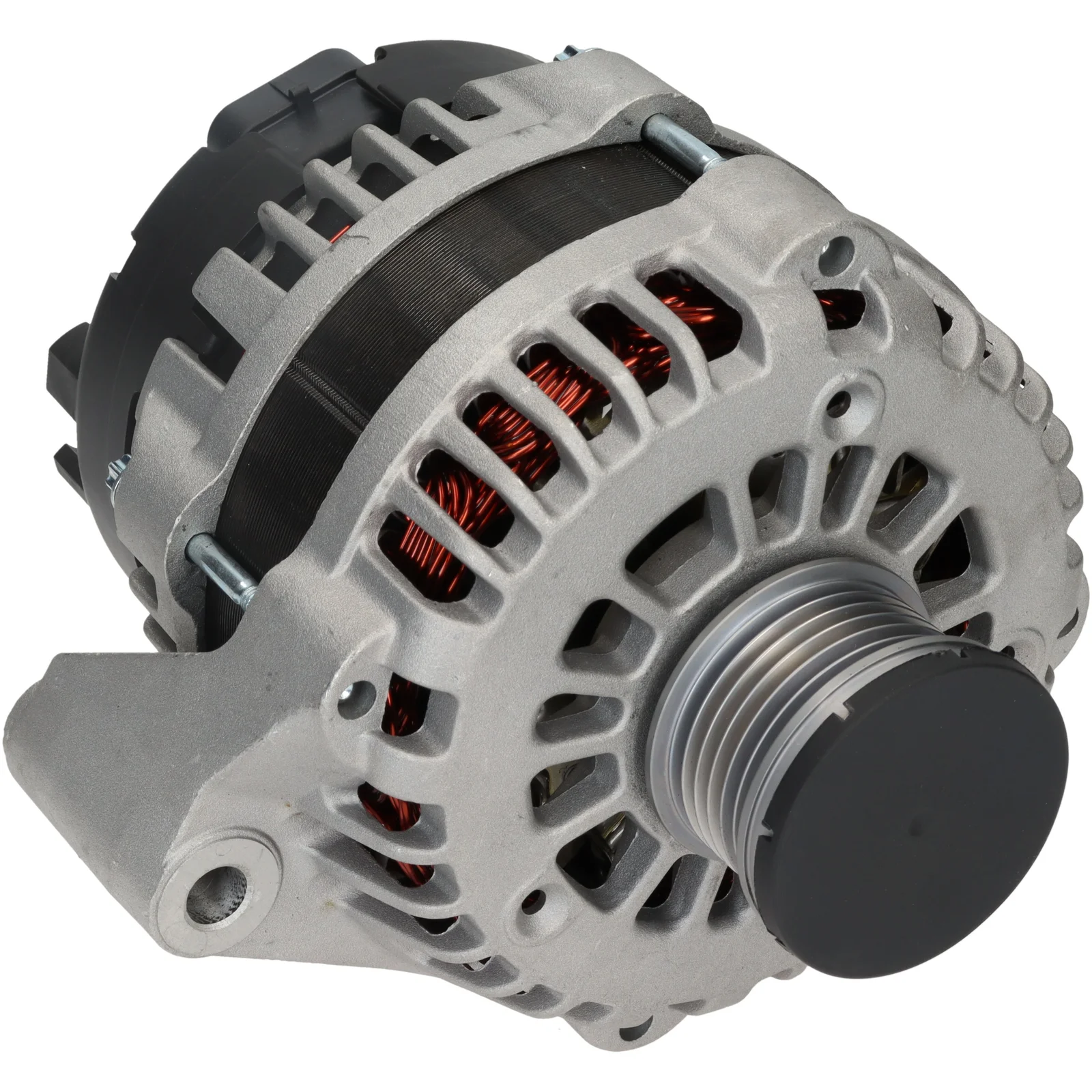

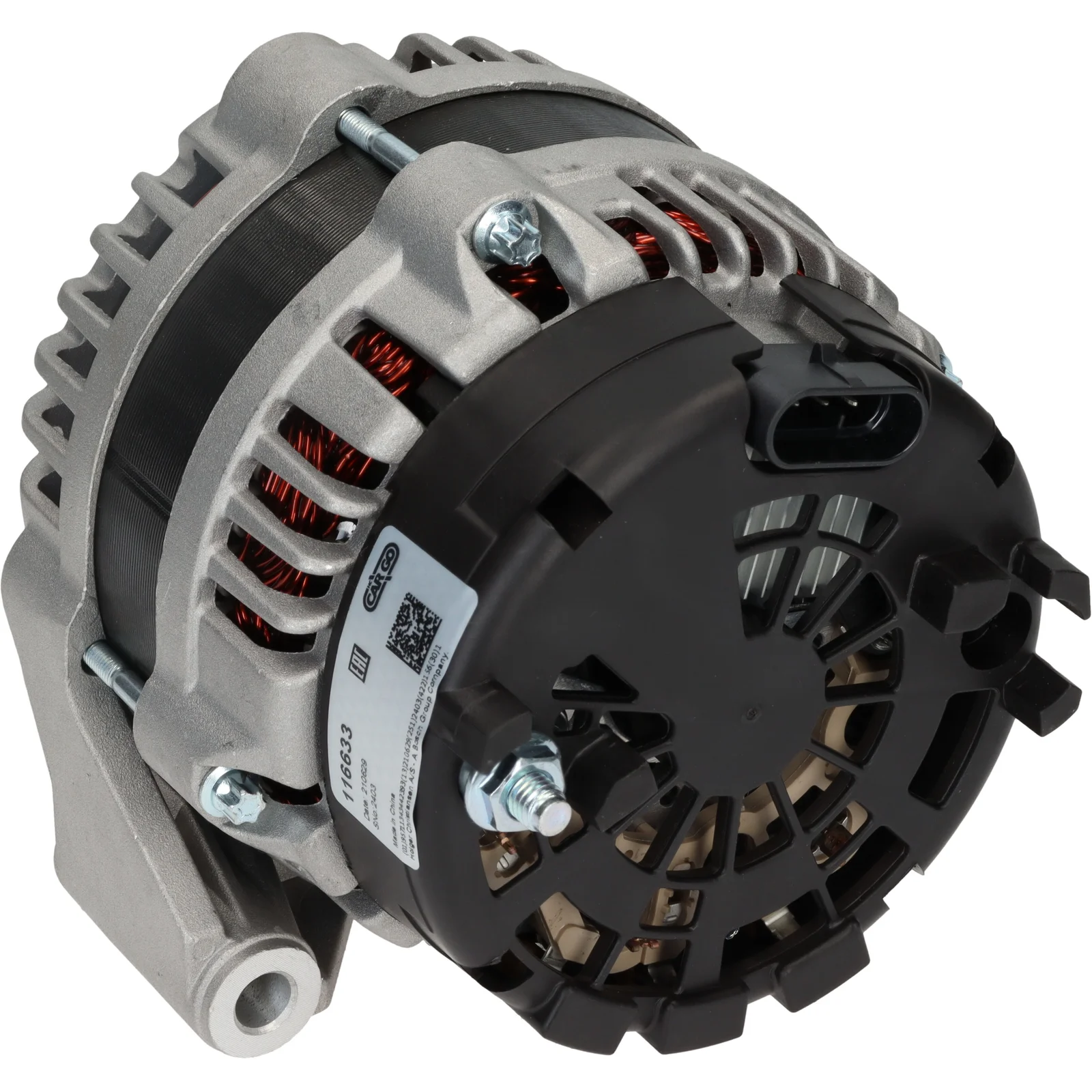

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116633

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Pulley diameter: 49.80

Description

Voltage: 14
Amp: 140
Pulley diameter: 92.00
Width/holder arm: 56.00
Bracket hole: 10.50
Belt. adj. bracket hole position: 10
Belt. adj. bracket hole 1: 10.50
Pulley diameter: 49.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
D+ size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 191.00
Pulley: SP/FW

Files

  • OEM
    A1621543802, A6641540002, A6651540002, A6651540202, A6651540302, F032116633, 16215-43802, 66415-40002, 6651540002, 6651540202, 6651540302

  • Normalised article numbler
    a1621543802, a6641540002, a6651540002, a6651540202, a6651540302, a9315s, cal42101, cal42104, dra0643, f032116633, j5110409, lra02366, 112688, 284873, 553212ri, 12060872, 12061149, 935502150, 1621543802, 2251621402, 6641540002, 6651540002, 6651540202, 6651540302
  • Description
    Voltage: 14
    Amp: 140
    Pulley diameter: 92.00
    Width/holder arm: 56.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 10
    Belt. adj. bracket hole 1: 10.50
    Pulley diameter: 49.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    D+ size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 191.00
    Pulley: SP/FW

    Files

  • Suitable for these vehicles

    • OEM
      A1621543802, A6641540002, A6651540002, A6651540202, A6651540302, F032116633, 16215-43802, 66415-40002, 6651540002, 6651540202, 6651540302

    • Normalised article numbler
      a1621543802, a6641540002, a6651540002, a6651540202, a6651540302, a9315s, cal42101, cal42104, dra0643, f032116633, j5110409, lra02366, 112688, 284873, 553212ri, 12060872, 12061149, 935502150, 1621543802, 2251621402, 6641540002, 6651540002, 6651540202, 6651540302
