Article no.: F032112101

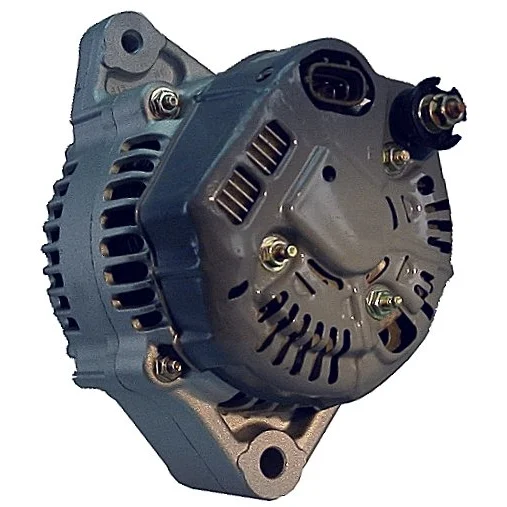

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 90.50
Width/holder arm: 58.00
Bracket hole: 10.40
Belt. adj. bracket hole position: 4
Belt. adj. bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in minutes: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 179.00
Pulley: SP
Alternator regulator type: IR
Product info: Remanufactured
Servicing: Toyota

Files

  • OEM
    F032112101, ja1418ir, 27060-74430, 101211-5460

  • Normalised article numbler
    a6098, al3277x, cal44108, dra4108, f032112101, j5112128, ja1418ir, lra01493, 8el737652001, 5757, 13501, 13501r, 119815, 282547, 401418ri, 1198001nd, 12060416, 235154802, 1012115460, 2706074430
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 90.50
    Width/holder arm: 58.00
    Bracket hole: 10.40
    Belt. adj. bracket hole position: 4
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in minutes: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 179.00
    Pulley: SP
    Alternator regulator type: IR
    Product info: Remanufactured
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032112101, ja1418ir, 27060-74430, 101211-5460

    • Normalised article numbler
      a6098, al3277x, cal44108, dra4108, f032112101, j5112128, ja1418ir, lra01493, 8el737652001, 5757, 13501, 13501r, 119815, 282547, 401418ri, 1198001nd, 12060416, 235154802, 1012115460, 2706074430
