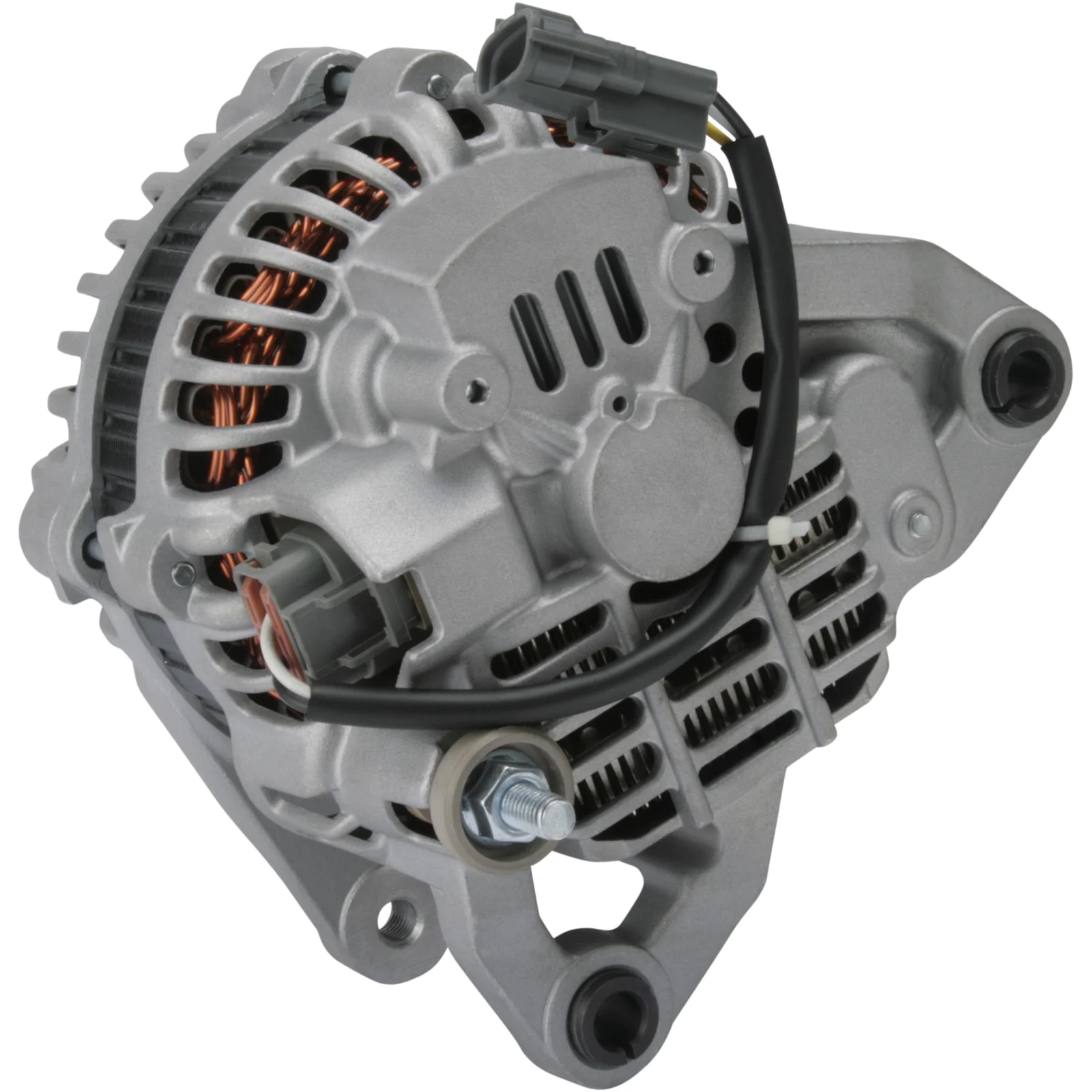

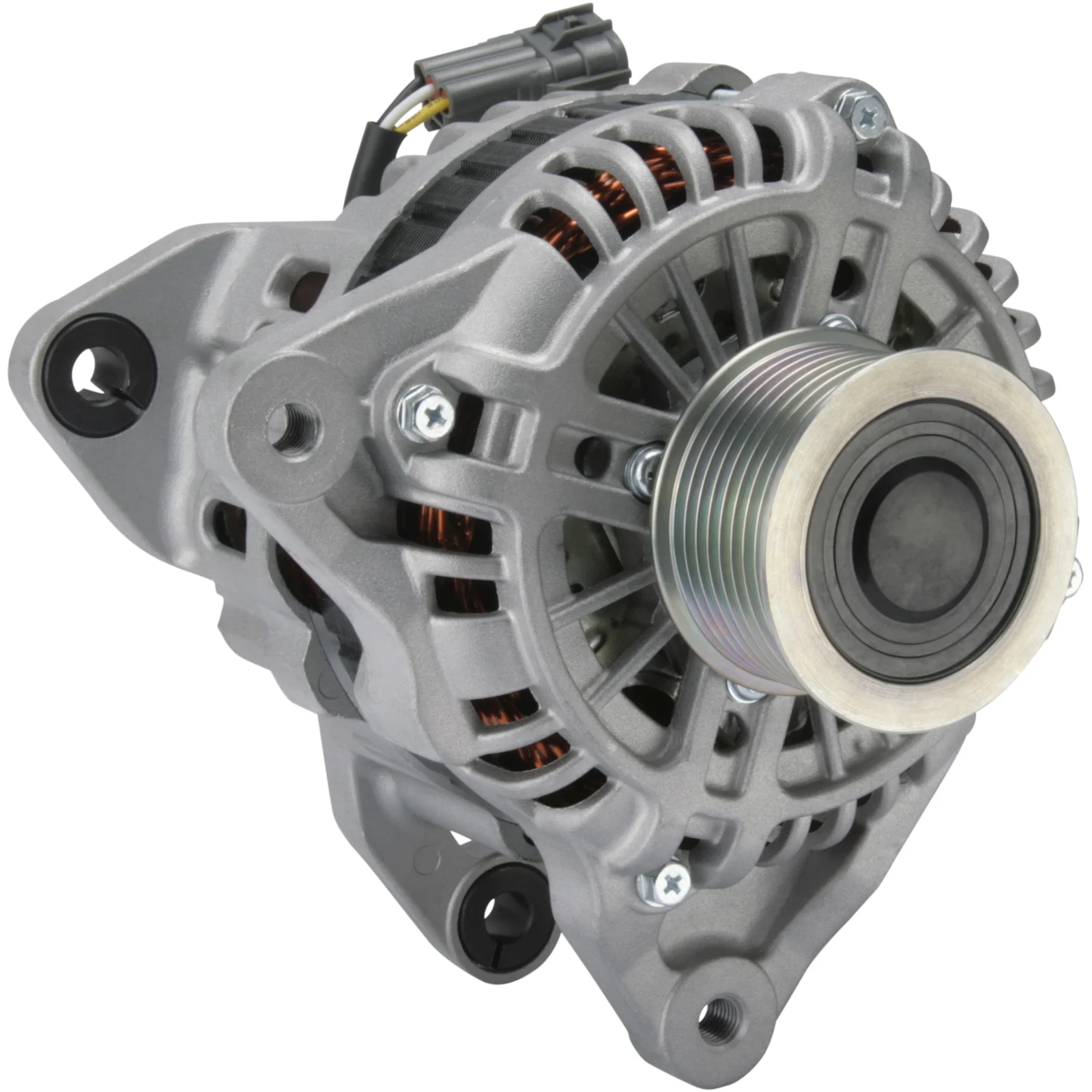

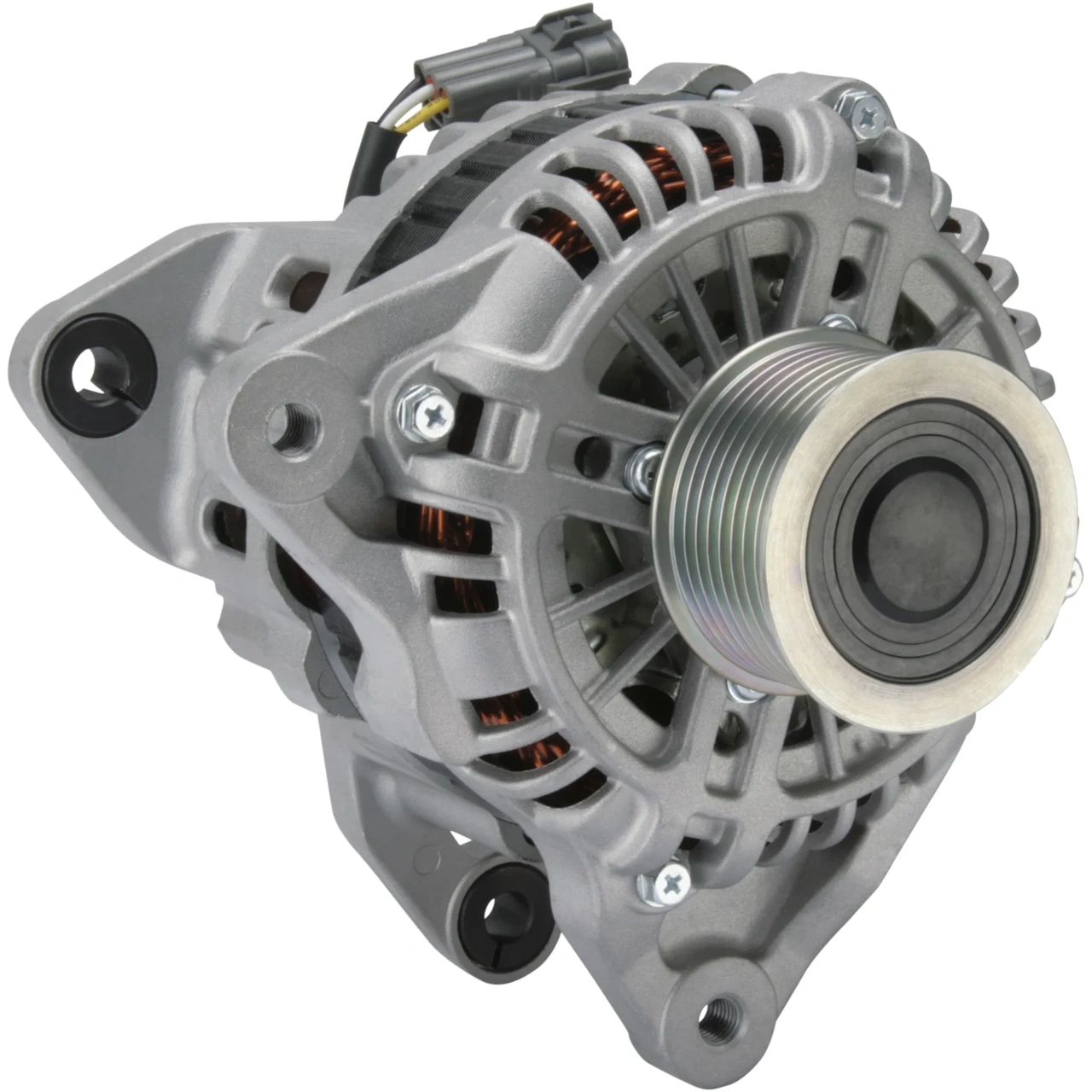

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114111

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 66.50

Description

Voltage: 14
Amp: 90
Pulley distance: 39.00
Width/holder arm: 13.00
Mounting bracket distance: 66.50
Bracket hole: M10
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: M10
Pulley diameter: 59.50
Grooves/pulley: 8
Radius: 91.00
Radius 2: 100.00
B+: M8
Position/B+ in minutes: 40
Rotation: CW
Plug number: PL139
Total length mm: 164.00
Pulley: Spur/Front Wheel
Voltage regulator: without
Product information: BN

Files

  • OEM
    A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

  • Normalised article numbler
    a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130
  • Description
    Voltage: 14
    Amp: 90
    Pulley distance: 39.00
    Width/holder arm: 13.00
    Mounting bracket distance: 66.50
    Bracket hole: M10
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: M10
    Pulley diameter: 59.50
    Grooves/pulley: 8
    Radius: 91.00
    Radius 2: 100.00
    B+: M8
    Position/B+ in minutes: 40
    Rotation: CW
    Plug number: PL139
    Total length mm: 164.00
    Pulley: Spur/Front Wheel
    Voltage regulator: without
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

    • Normalised article numbler
      a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130
