Article no.: F032113771

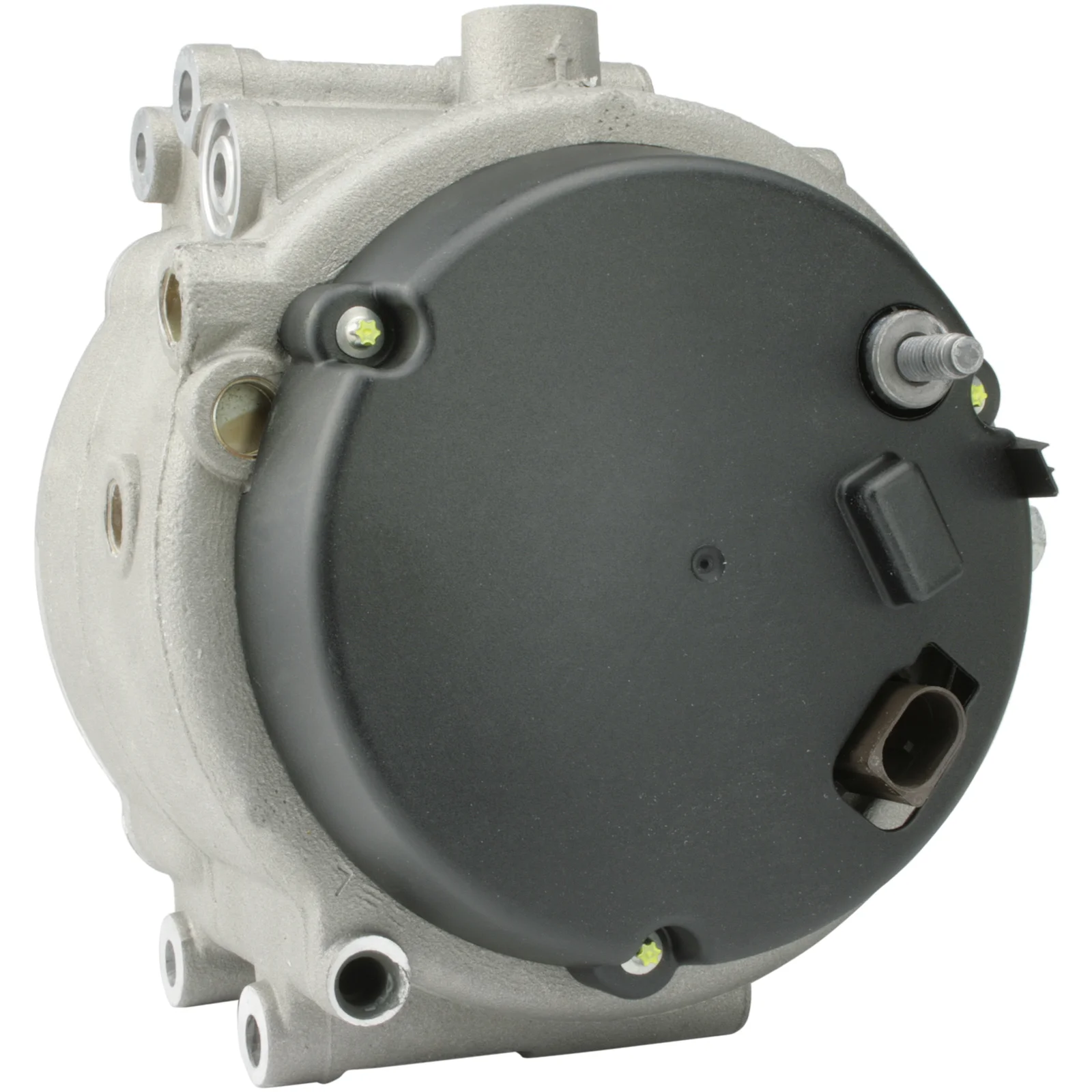

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 190, Rotation: CW, Mounting bracket distributor: 56.70

Description

Voltage: 14
Amp: 190
Pulley dist.: 33.00
Width/holder arm: 93.50
Mount. bracket dist.: 56.70
Bracket hole: 8.00/9.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 7.80
Pulley dia.: 49.80
Grooves/pulley: 6
Radius: 83.00
Radius 2: 83.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL91
Total length mm: 196.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Mercedes
Remarks: Water cooled.

Files

  • OEM
    A0001501650, A0001502450, AAN7101, aan7111, F032113771, 11.203.468, 11.203.631, 1677ir, 0001501650, 0001502450, 10480403, 10480407

  • Normalised article numbler
    a0001501650, a0001502450, a1016, a1016pr, a1016r, aan7101, aan7111, cal12110, dra4146, dra4146n, f032113771, ia1228, lra02073, 1677ir, 4818, 23161n, 23162r, 210354, 210354a, 284509, 284616, 301677ri, 440659, 0001501650, 0001502450, 9048980, 10480403, 10480407, 11203468, 11203631, 12048980, 32041780, 0986042446, 0986048980, 0986048983, 0986048986, 5251121902
  • Description
    Voltage: 14
    Amp: 190
    Pulley dist.: 33.00
    Width/holder arm: 93.50
    Mount. bracket dist.: 56.70
    Bracket hole: 8.00/9.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 7.80
    Pulley dia.: 49.80
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 83.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL91
    Total length mm: 196.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes
    Remarks: Water cooled.

    Files

  • Suitable for these vehicles

    • OEM
      A0001501650, A0001502450, AAN7101, aan7111, F032113771, 11.203.468, 11.203.631, 1677ir, 0001501650, 0001502450, 10480403, 10480407

    • Normalised article numbler
      a0001501650, a0001502450, a1016, a1016pr, a1016r, aan7101, aan7111, cal12110, dra4146, dra4146n, f032113771, ia1228, lra02073, 1677ir, 4818, 23161n, 23162r, 210354, 210354a, 284509, 284616, 301677ri, 440659, 0001501650, 0001502450, 9048980, 10480403, 10480407, 11203468, 11203631, 12048980, 32041780, 0986042446, 0986048980, 0986048983, 0986048986, 5251121902
