Article no.: F032113350

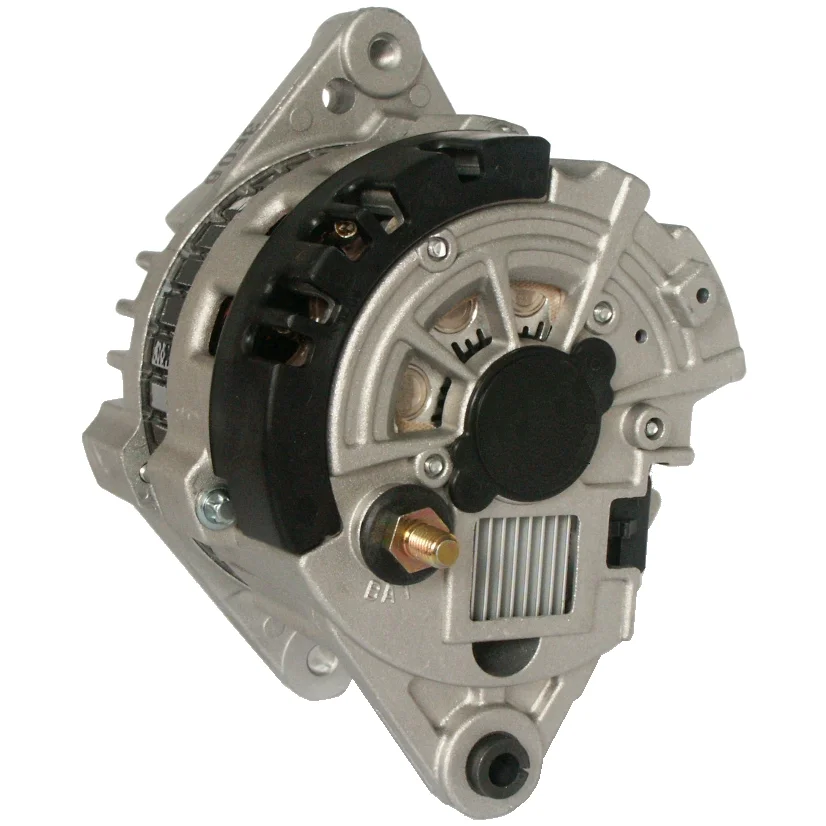

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 85, Rotation: CW, Mounting bracket distributor: 81.30

Description

Voltage: 14
Amp: 85
Pulley dist.: 36.00
Width/holder arm: 13.20
Mount. bracket dist.: 81.30
Bracket hole: 8.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 47.80
Grooves/pulley: 5
Radius: 80.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL62
Total length mm: 179.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Daewoo

Files

  • OEM
    F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

  • Normalised article numbler
    a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570
  • Description
    Voltage: 14
    Amp: 85
    Pulley dist.: 36.00
    Width/holder arm: 13.20
    Mount. bracket dist.: 81.30
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 47.80
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL62
    Total length mm: 179.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Daewoo

    Files

  • Suitable for these vehicles

    • OEM
      F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

    • Normalised article numbler
      a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570
