HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116325

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 125, Rotation: CW, Mount. bracket dist.: 60.00

Description

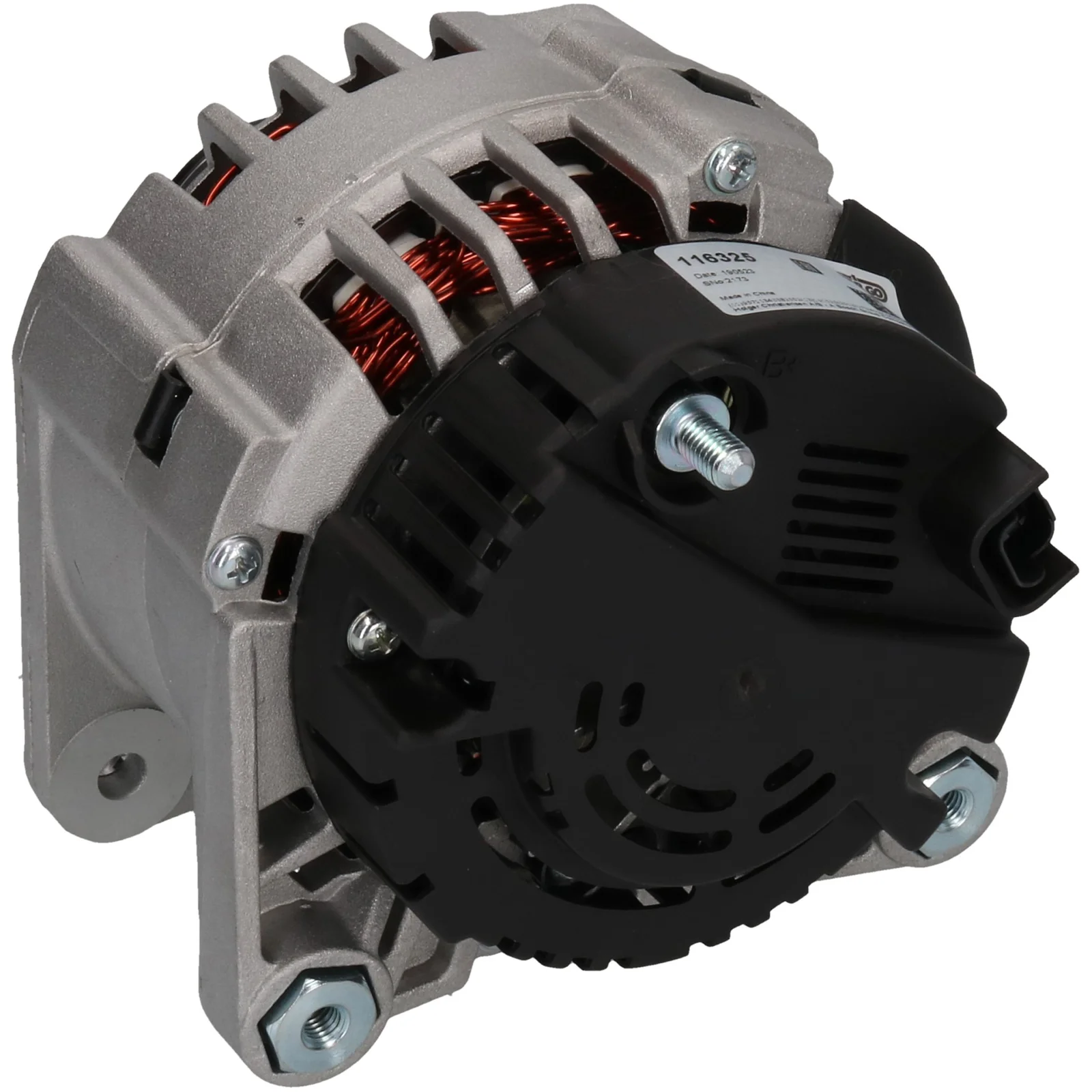

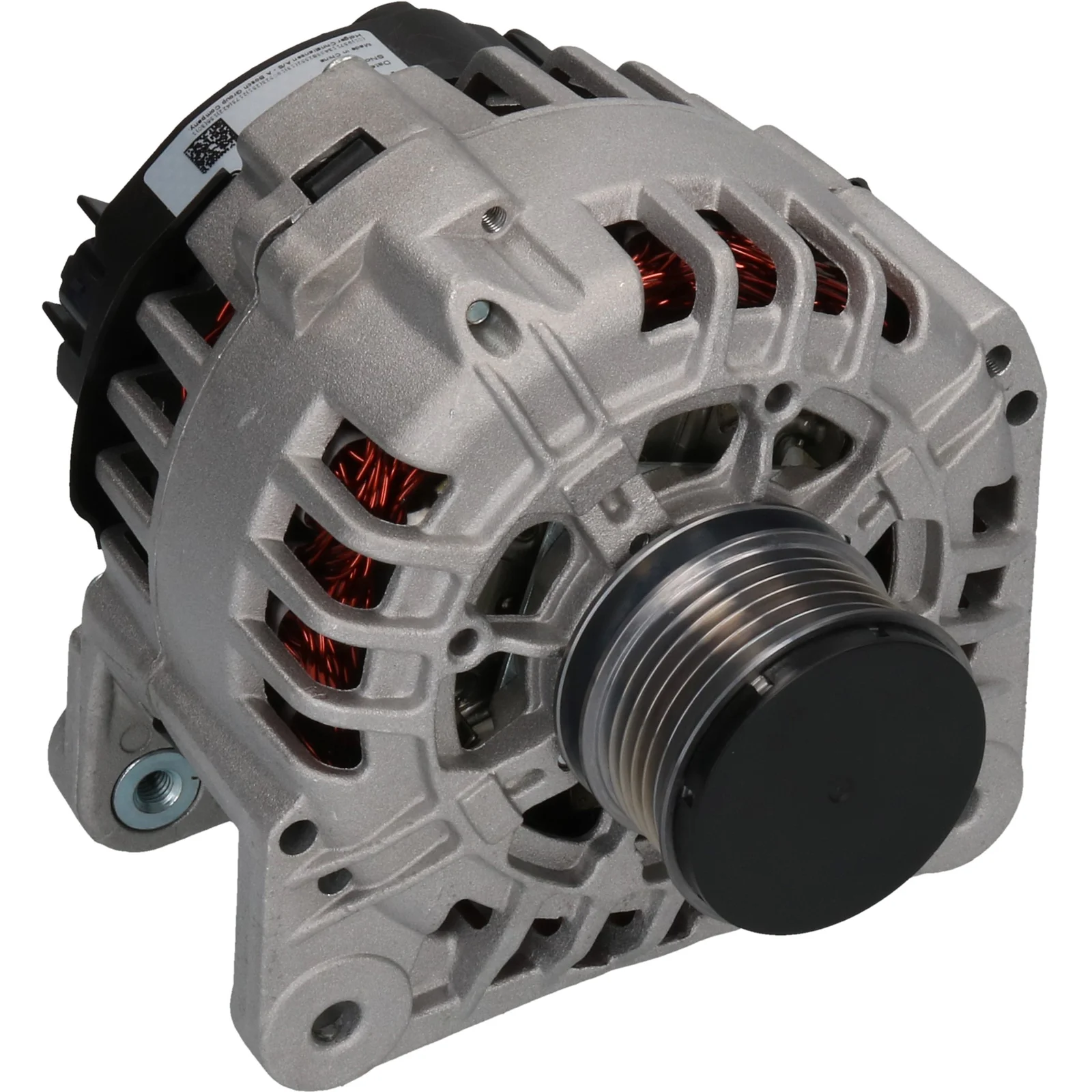

Renault Diesel Alternator 12V-125A 12V - 125A, 6 teeth. assembly, for Yourex product order 90-480-7559

Voltage: 14
Amp: 125
Pulley distance: 38.50
Width/holder arm: 13.50
Mounting bracket distance: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 184.00
Terminal type: L-DFM
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    F032113862, F032116325, SG12B 089, SG12B105, TG12C094, TG12C151, 0986 082 600, 1320g028, 8200 385 098, 23100-3831r, 113862, 116325, 437559, 439562, 1320024, 2542946, 2543378, 2543378C, 2607395, 2607395A, 2617345A, 231007707R, 231008017R, 6001548553, 8200537415

  • Normalised article numbler
    a0667s, a3118, a3118valeo, cal15408, dra0293, f032113862, f032116325, sg12b089, sg12b105, tg12c094, tg12c151, 8el011710901, 8el738211801, 1320g028, 4678, 112630, 113309, 113862, 116325, 200210, 210503, 210503a, 285588, 437559, 439562, 439584, 440056, 747006, 1320024, 2542946, 2543378, 2543378c, 2607395, 2607395a, 2617345a, 12090178, 231003831r, 231007707r, 231008017r, 0986082600, 2303111252, 6001548553, 8200385098, 8200537415
  • Description
    Renault Diesel Alternator 12V-125A 12V - 125A, 6 teeth. assembly, for Yourex product order 90-480-7559

    Voltage: 14
    Amp: 125
    Pulley distance: 38.50
    Width/holder arm: 13.50
    Mounting bracket distance: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 184.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032113862, F032116325, SG12B 089, SG12B105, TG12C094, TG12C151, 0986 082 600, 1320g028, 8200 385 098, 23100-3831r, 113862, 116325, 437559, 439562, 1320024, 2542946, 2543378, 2543378C, 2607395, 2607395A, 2617345A, 231007707R, 231008017R, 6001548553, 8200537415

    • Normalised article numbler
      a0667s, a3118, a3118valeo, cal15408, dra0293, f032113862, f032116325, sg12b089, sg12b105, tg12c094, tg12c151, 8el011710901, 8el738211801, 1320g028, 4678, 112630, 113309, 113862, 116325, 200210, 210503, 210503a, 285588, 437559, 439562, 439584, 440056, 747006, 1320024, 2542946, 2543378, 2543378c, 2607395, 2607395a, 2617345a, 12090178, 231003831r, 231007707r, 231008017r, 0986082600, 2303111252, 6001548553, 8200385098, 8200537415
