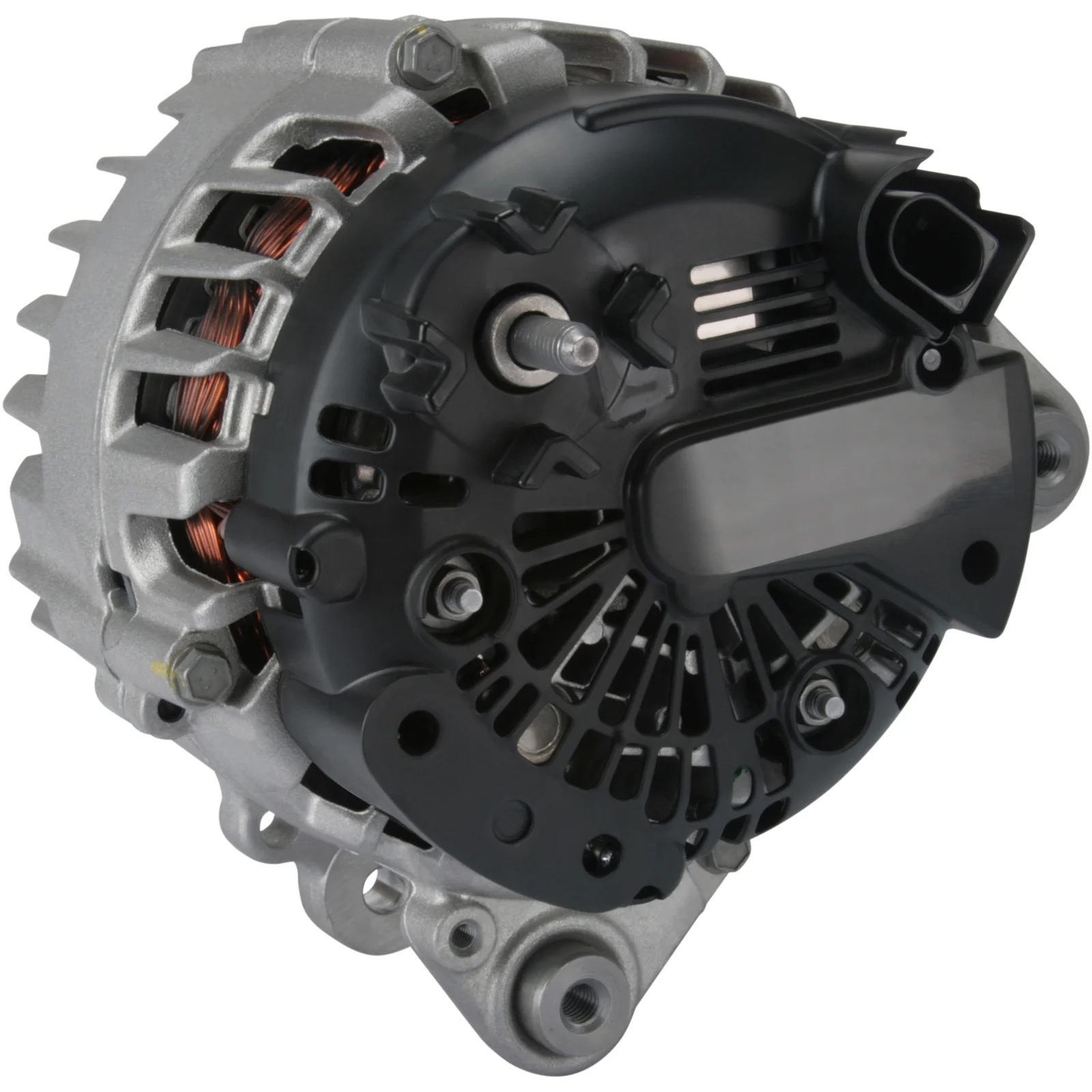

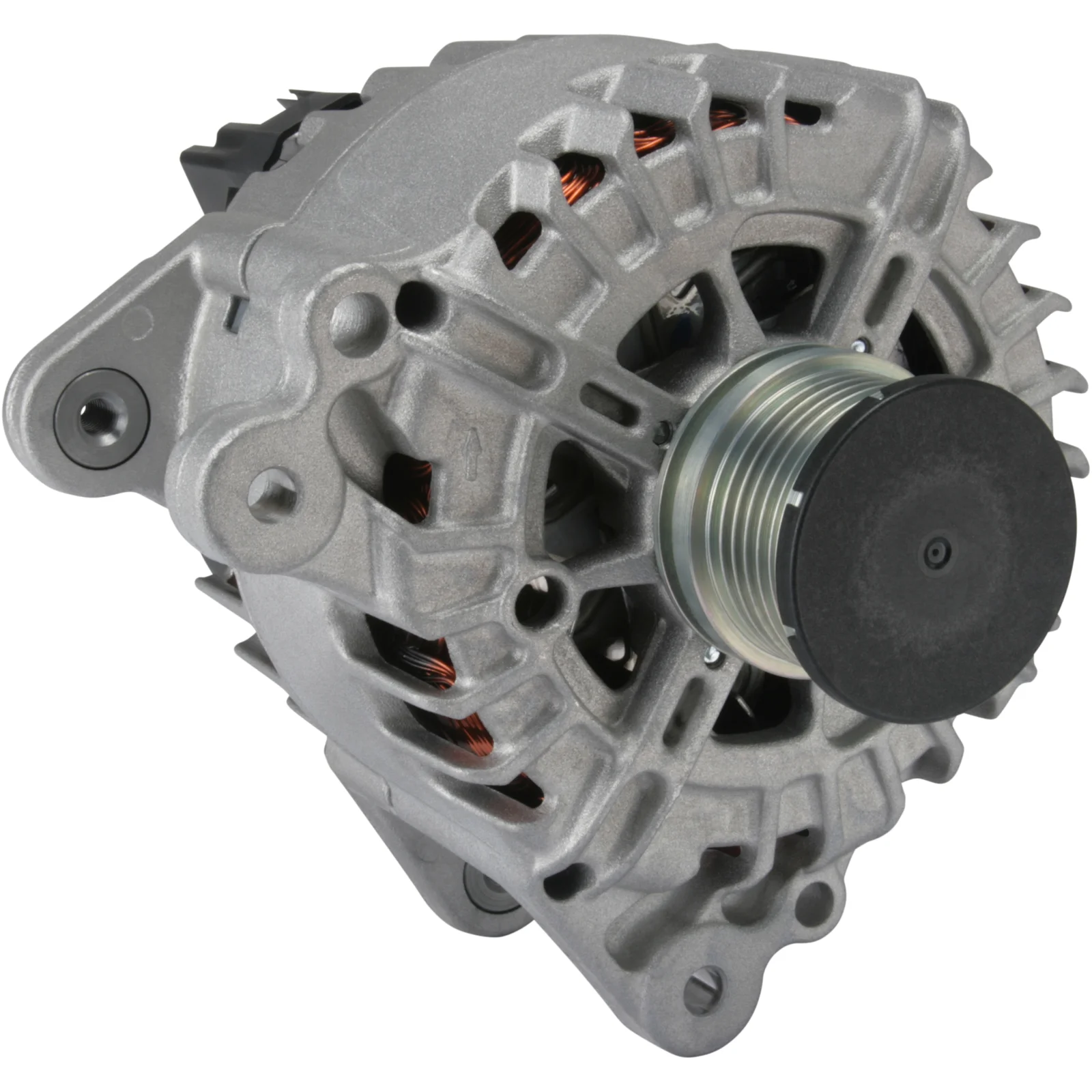

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114322

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 140, Rotation: CW, Mounting bracket distributor: 61.00

Description

Alternator 12V-140A, compatible with Audi 12V - 140A, 6-cylinder engine (LIN) 6-cylinder engine (LIN 2-D) for Yourex product order 90-025-1340

Voltage: 14
Amp: 140
Pulley distance: 40.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in mm.: 50
Rotation: Clockwise
Plug number: PL86
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Servicing: Audi
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114322, TG14C 020, TG14C020, TG14C078, TG14C097, 03G 903 016B, 03G 903 016E, 03G 903 016G, 03g903016g, 04L903021D, 04L903021H, 04L903023L, 05L903026N, 0124 525 114, 0124 525 530, 0986 081 340, 1986 A00 896, 1986A00613, 1986ir, 114322, 439642, 440208, 2543398, 2543398A, 2543398B, 2715271A

  • Normalised article numbler
    a0748s, a3299, a3299pr, a3299pr2, a3400pr, cal15418, f032114322, lra04411, tg14c020, tg14c078, tg14c097, 03g903016b, 03g903016e, 03g903016g, 04l903021d, 04l903021h, 04l903023l, 05l903026n, 8el012241121, 8el738212471, 1986a00613, 1986a00896, 1986ir, 4662, 23827n, 114322, 200239, 200284, 210706, 210706a, 287760, 288520, 439642, 439977, 440208, 440748, 440864, 443152, 2543398, 2543398a, 2543398b, 2715271a, 12090347, 32085830, 0124525114, 0124525530, 0986081340, 0986084350, 0986087090, 2113571402
  • Description
    Alternator 12V-140A, compatible with Audi 12V - 140A, 6-cylinder engine (LIN) 6-cylinder engine (LIN 2-D) for Yourex product order 90-025-1340

    Voltage: 14
    Amp: 140
    Pulley distance: 40.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in mm.: 50
    Rotation: Clockwise
    Plug number: PL86
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Servicing: Audi
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114322, TG14C 020, TG14C020, TG14C078, TG14C097, 03G 903 016B, 03G 903 016E, 03G 903 016G, 03g903016g, 04L903021D, 04L903021H, 04L903023L, 05L903026N, 0124 525 114, 0124 525 530, 0986 081 340, 1986 A00 896, 1986A00613, 1986ir, 114322, 439642, 440208, 2543398, 2543398A, 2543398B, 2715271A

    • Normalised article numbler
      a0748s, a3299, a3299pr, a3299pr2, a3400pr, cal15418, f032114322, lra04411, tg14c020, tg14c078, tg14c097, 03g903016b, 03g903016e, 03g903016g, 04l903021d, 04l903021h, 04l903023l, 05l903026n, 8el012241121, 8el738212471, 1986a00613, 1986a00896, 1986ir, 4662, 23827n, 114322, 200239, 200284, 210706, 210706a, 287760, 288520, 439642, 439977, 440208, 440748, 440864, 443152, 2543398, 2543398a, 2543398b, 2715271a, 12090347, 32085830, 0124525114, 0124525530, 0986081340, 0986084350, 0986087090, 2113571402
