HC-Cargo Alternator

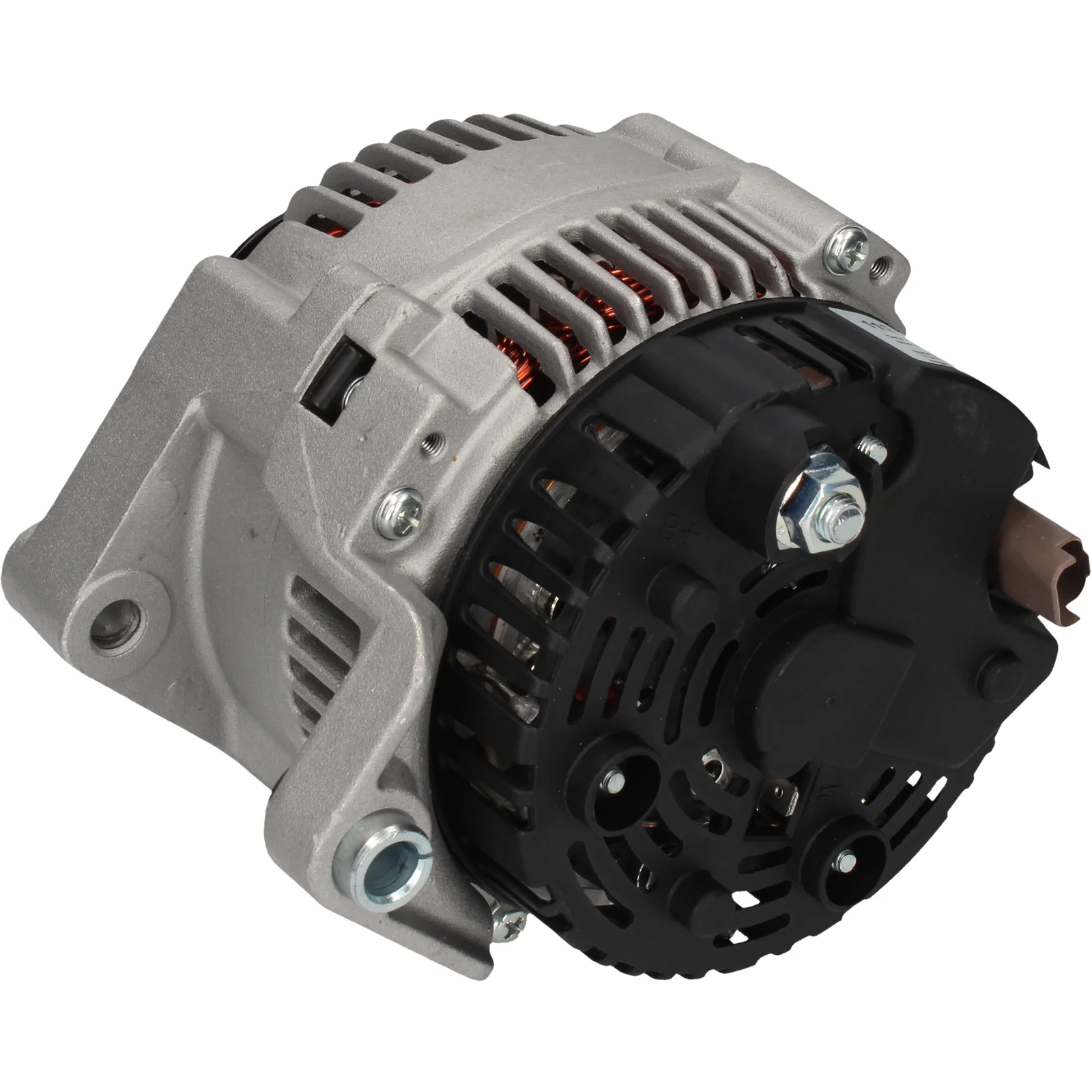

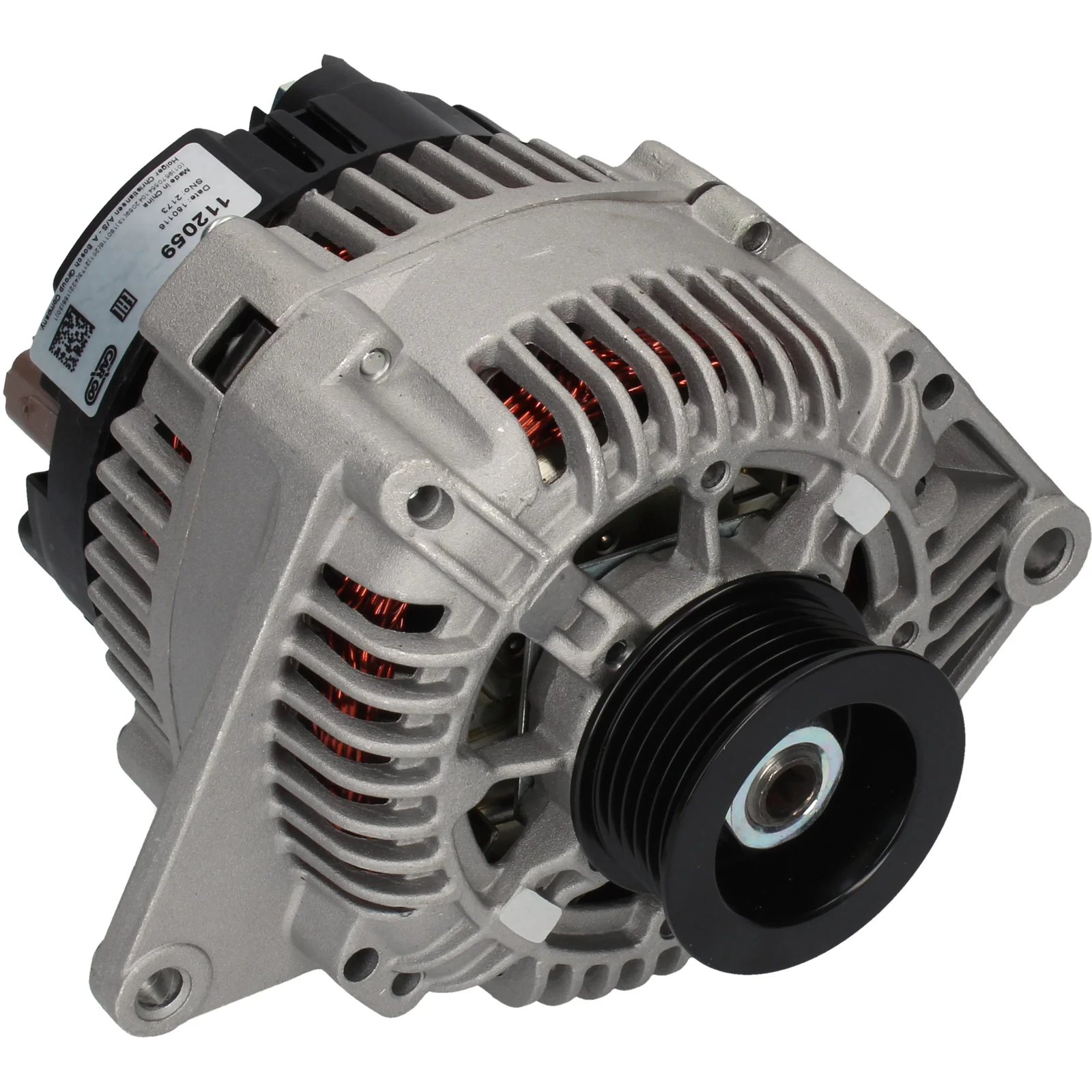

HC-Cargo Alternator
Article no.: F032112059

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 66.30

Description

Voltage: 14
Amps: 110
Pulley distance: 46.00
Width/holder arm: 27.40
Mounting bracket distance: 66.30
Bracket hole: 10.50
Belt adjustment bracket hole position: 55
Belt adjustment bracket hole 1: 8.30
Pulley diameter: 51.80
Grooves/pulley: 6
Radius: 85.00
Radius 2: 96.00
B+: M8
Position/B+ in minutes: 43
D+ size: Plug
Rotation: CW
Plug number: PL55
Total length mm: 180.00
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Renault

Files

  • OEM
    a13vi195, a13vi259, A13VI300, F032112059, 1444ir, 1986A01694, 2541954, 2541954B, 2542354, 2542354A, 2542691, 2542691C, 8111921, 7700105539, 7700436671, 7711134267, 8200193100

  • Normalised article numbler
    a13vi195, a13vi259, a13vi300, a3079, a3281, alt14003, alt14057, alth077, cal15146, dra3717, dra4046, f032112059, f042a0h077, lea0673, lrb00401, mar7076, 8el011360741, 8el011710371, 8el737642001, 1444ir, 1986a01694, 4020, 4947, 5747, 21401n, 21401r, 23100r, 119027, 200126, 200178, 210222, 210222a, 283802, 284540, 301444ri, 436748, 437306, 439224, 439302, 553713ri, 746871, 839014, 839045, 2541954, 2541954b, 2542354, 2542354a, 2542691, 2542691c, 8111921, 9212598, 12042180, 32042181, 063310509, 575576110, 943354076, 0986042181, 2301591102, 7700105539, 7700436671, 7711134267, 8200193100, 063310509010, 943354076010, 944390421810
  • Description
    Voltage: 14
    Amps: 110
    Pulley distance: 46.00
    Width/holder arm: 27.40
    Mounting bracket distance: 66.30
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 55
    Belt adjustment bracket hole 1: 8.30
    Pulley diameter: 51.80
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in minutes: 43
    D+ size: Plug
    Rotation: CW
    Plug number: PL55
    Total length mm: 180.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13vi195, a13vi259, A13VI300, F032112059, 1444ir, 1986A01694, 2541954, 2541954B, 2542354, 2542354A, 2542691, 2542691C, 8111921, 7700105539, 7700436671, 7711134267, 8200193100

    • Normalised article numbler
      a13vi195, a13vi259, a13vi300, a3079, a3281, alt14003, alt14057, alth077, cal15146, dra3717, dra4046, f032112059, f042a0h077, lea0673, lrb00401, mar7076, 8el011360741, 8el011710371, 8el737642001, 1444ir, 1986a01694, 4020, 4947, 5747, 21401n, 21401r, 23100r, 119027, 200126, 200178, 210222, 210222a, 283802, 284540, 301444ri, 436748, 437306, 439224, 439302, 553713ri, 746871, 839014, 839045, 2541954, 2541954b, 2542354, 2542354a, 2542691, 2542691c, 8111921, 9212598, 12042180, 32042181, 063310509, 575576110, 943354076, 0986042181, 2301591102, 7700105539, 7700436671, 7711134267, 8200193100, 063310509010, 943354076010, 944390421810
