HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115742

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 83.00

Description

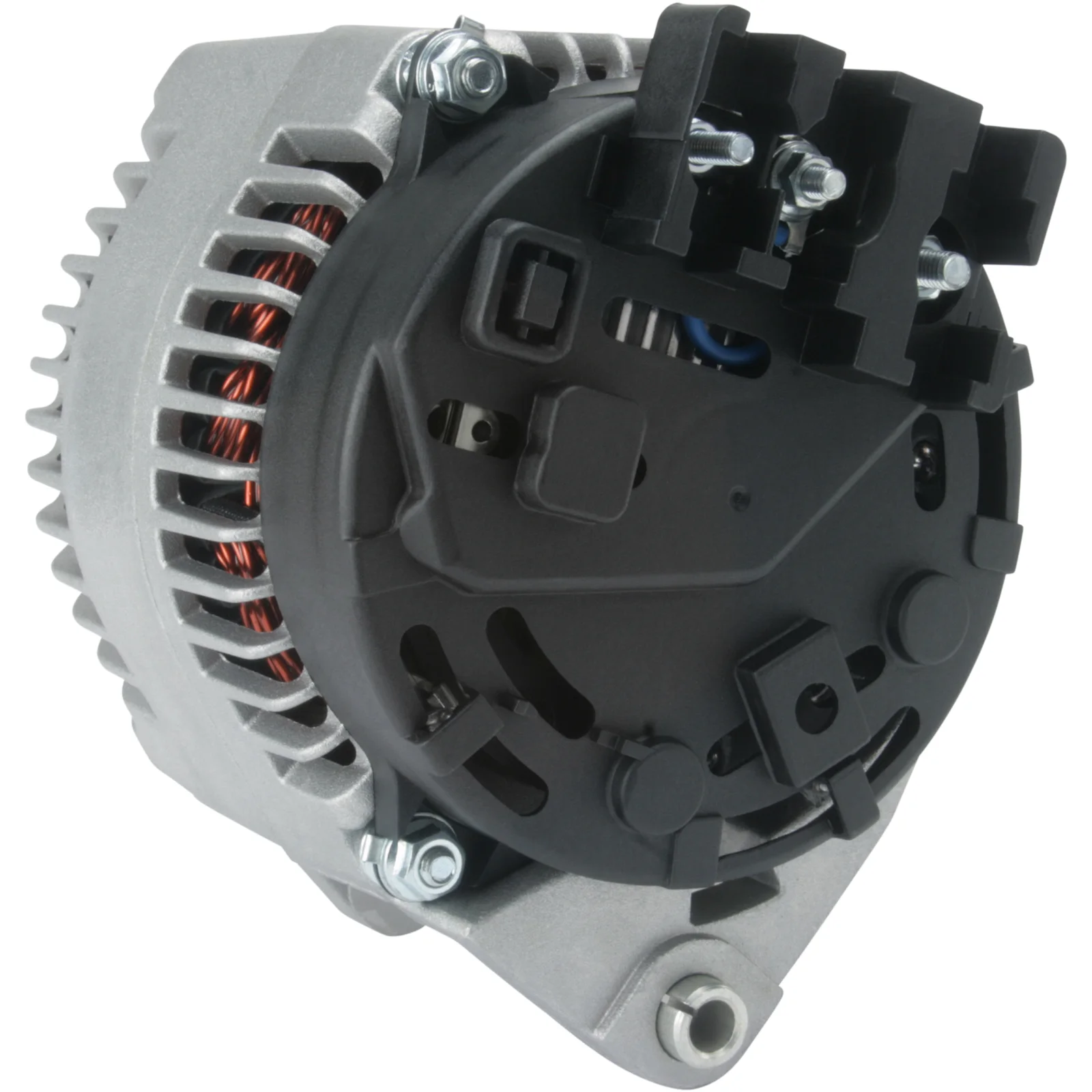

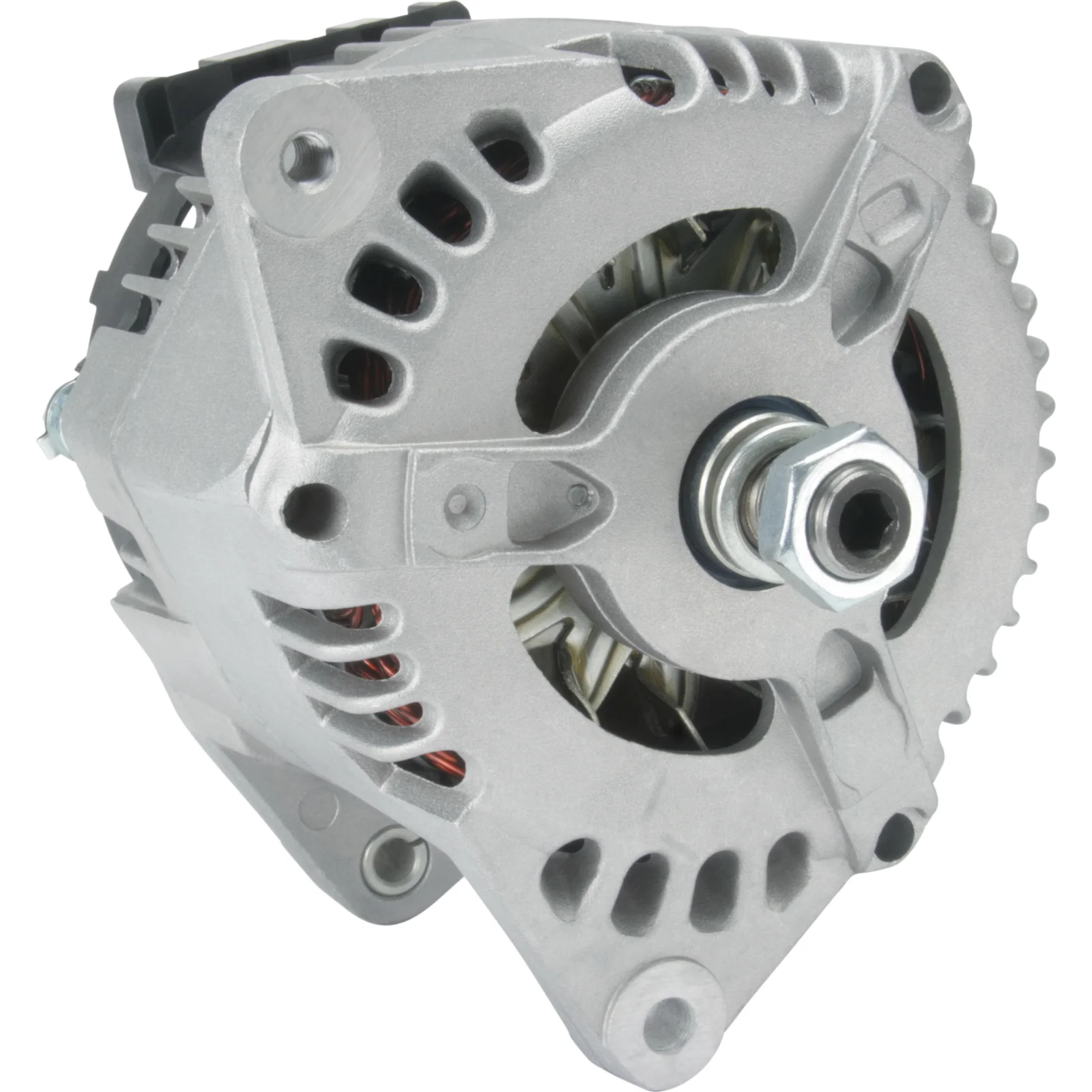

Land Rover Alternator 12V-100A 12V - 100A, 4 groove pulley For Yourrex product order 90-484-2469 Voltage: 14 Amp: 100 Width/holder arm: 14.00 Mounting bracket distance: 83.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 50 Belt adjustment bracket hole 1: M8 Radius: 86.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 7 D+ Size: M5 Rotation: CW Plug no.: PL31 W plug type: M5 Total length mm: 177.00 Pulley: w/o Regulator type: IR Prod. info: BN

Files

  • OEM
    F032115742, LRB 368, MAN 675, T412401, YLE 10099, YLE 10100, YLE 10118, YLE10100, 2871 A309, 2871-A304, 2871A304, 2871A309, 101210-1570, 102211-8120, 102211-8121, 115742, 3469824, 3832556, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 63377463

  • Normalised article numbler
    a6071, a6071denso, cal30195, dan009, dan1091, dan649, dra0028, f032115742, lrb368, man675, man7463, t412401, yle10099, yle10100, yle10118, 2871a304, 2871a309, 12739n, 13697n, 13697r, 115742, 282760, 3469824, 3832556, 12090211, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 063377463, 63377463, 705503100, 1012101570, 1022118120, 1022118121, 063377463010
  • Description
    Land Rover Alternator 12V-100A 12V - 100A, 4 groove pulley For Yourrex product order 90-484-2469 Voltage: 14 Amp: 100 Width/holder arm: 14.00 Mounting bracket distance: 83.00 Bracket hole: 8.20 Belt adjustment bracket hole position: 50 Belt adjustment bracket hole 1: M8 Radius: 86.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 7 D+ Size: M5 Rotation: CW Plug no.: PL31 W plug type: M5 Total length mm: 177.00 Pulley: w/o Regulator type: IR Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115742, LRB 368, MAN 675, T412401, YLE 10099, YLE 10100, YLE 10118, YLE10100, 2871 A309, 2871-A304, 2871A304, 2871A309, 101210-1570, 102211-8120, 102211-8121, 115742, 3469824, 3832556, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 63377463

    • Normalised article numbler
      a6071, a6071denso, cal30195, dan009, dan1091, dan649, dra0028, f032115742, lrb368, man675, man7463, t412401, yle10099, yle10100, yle10118, 2871a304, 2871a309, 12739n, 13697n, 13697r, 115742, 282760, 3469824, 3832556, 12090211, 20130195, 54022469, 54022470, 63322469, 63340003, 63340005, 063377463, 63377463, 705503100, 1012101570, 1022118120, 1022118121, 063377463010
