HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116668

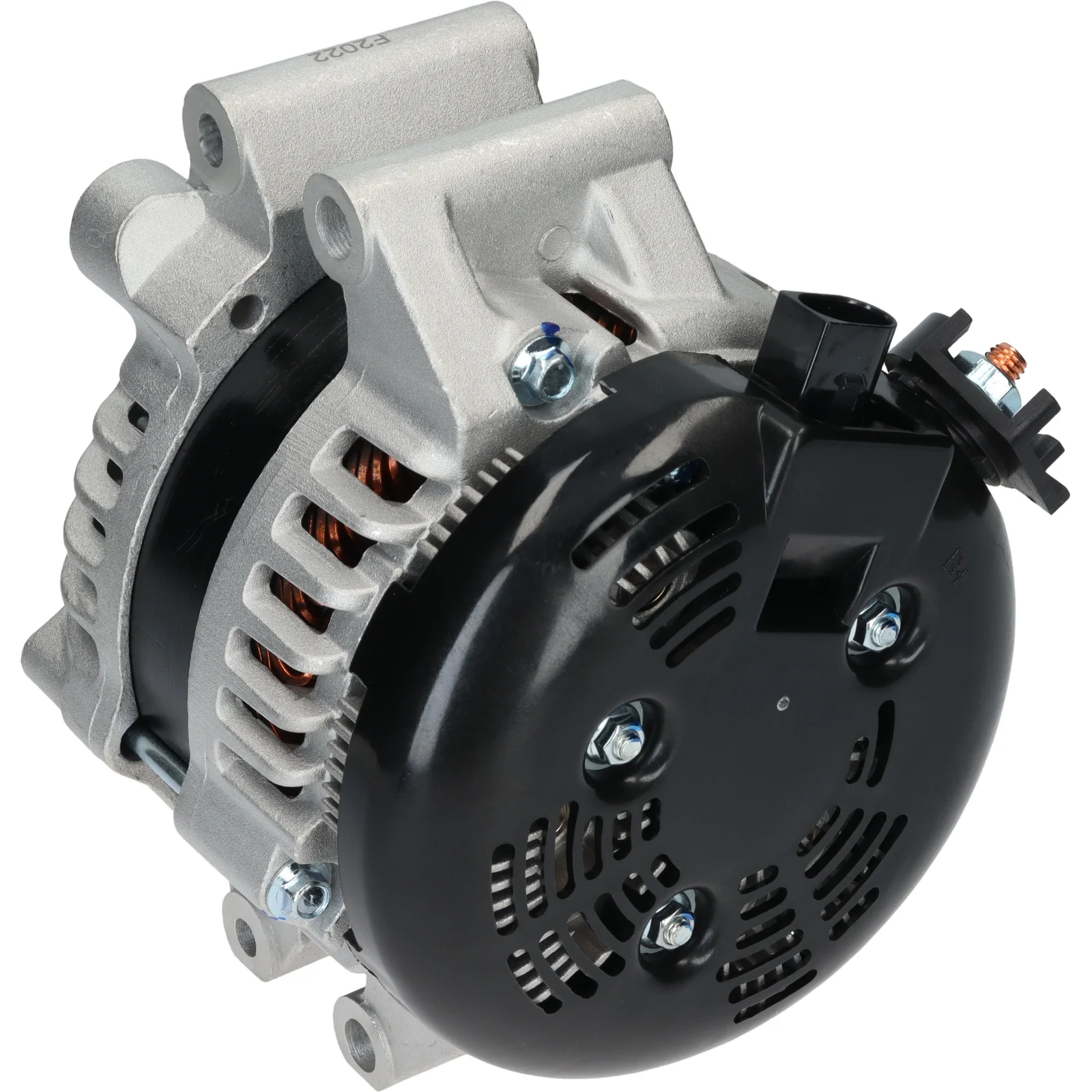

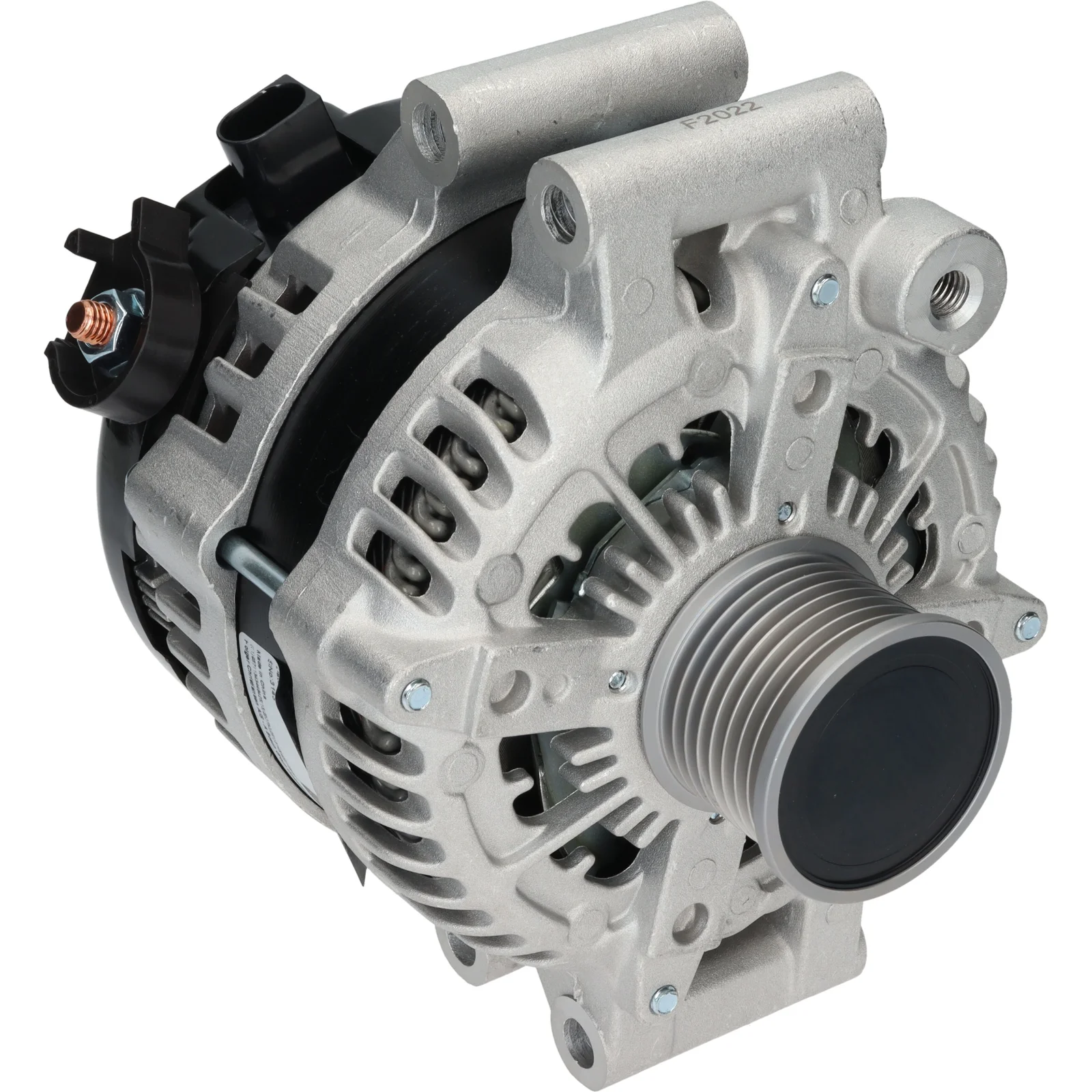

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mounting bracket distributor: 40.50

Description

Voltage: 14
Amp: 210
Pulley dist.: 30.00
Width/holder arm: 62.50
Mount. bracket dist.: 40.50
Bracket hole: 8.00
Belt. adj. bracket hole 1: 8.00x9.50
Pulley dia.: 49.00
Grooves/pulley: 8
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL125
Total length mm: 172.00
Terminal type: COM
Communication: BSS
Alternator: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116668, TG23C042, 104210-6250, 104210-6251, 12317591268, 12317591271

  • Normalised article numbler
    a6347, cal40499, dra0881, f032116668, lra03636, tg23c042, 8el015630001, 40458, 286776, 440990, 555134ri, 9090711, 12090417, 32001010, 215520210, 1042106250, 1042106251, 12317591268, 12317591271
  • Description
    Voltage: 14
    Amp: 210
    Pulley dist.: 30.00
    Width/holder arm: 62.50
    Mount. bracket dist.: 40.50
    Bracket hole: 8.00
    Belt. adj. bracket hole 1: 8.00x9.50
    Pulley dia.: 49.00
    Grooves/pulley: 8
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL125
    Total length mm: 172.00
    Terminal type: COM
    Communication: BSS
    Alternator: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116668, TG23C042, 104210-6250, 104210-6251, 12317591268, 12317591271

    • Normalised article numbler
      a6347, cal40499, dra0881, f032116668, lra03636, tg23c042, 8el015630001, 40458, 286776, 440990, 555134ri, 9090711, 12090417, 32001010, 215520210, 1042106250, 1042106251, 12317591268, 12317591271
