Article no.: F032112332

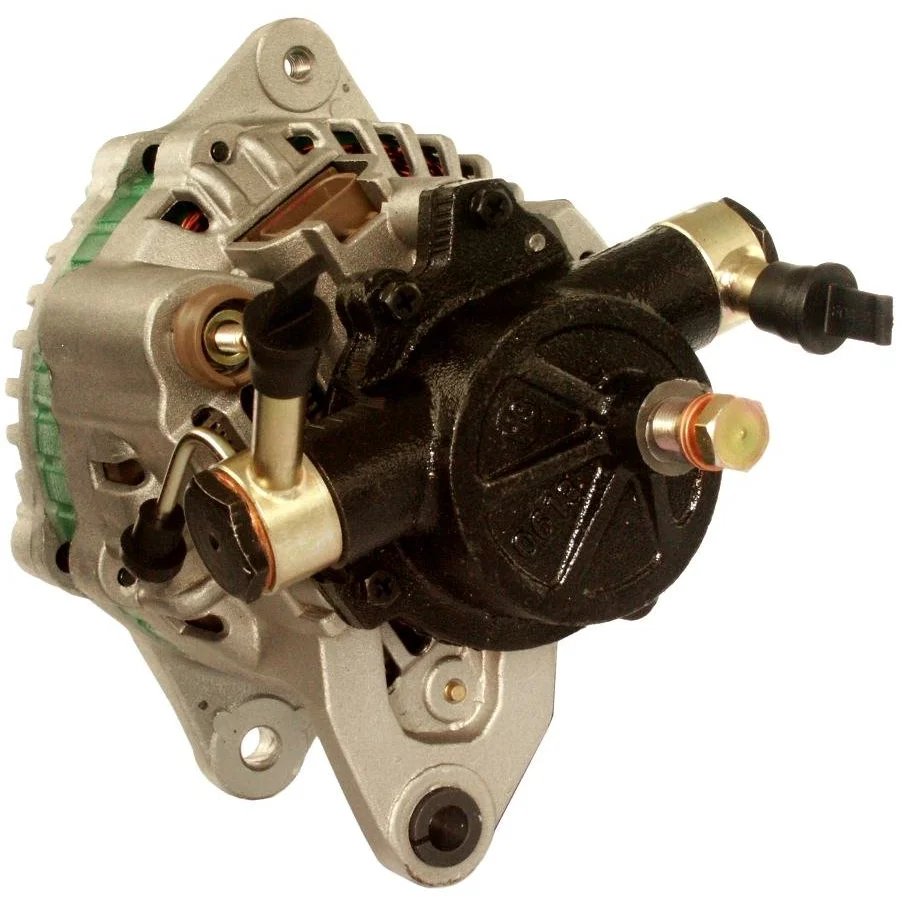

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 80.70

Description

Voltage: 14
Amp: 70
Pulley: Alternator
dist.: 50.00
Width/holder arm: 13.00
Mounting bracket distance: 80.70
Bracket hole: 10.30
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 82.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL07
Total length millimeters: 238.00
Terminal type: L-S
Pulley: P
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Suzuki

Files

  • OEM
    A002T82378, a2t82378, F032112332, ja1430ir, RFJ5-18-300, RFJ5-18-300A, RFJ5-18-300B, 31400-77e90

  • Normalised article numbler
    a002t82378, a2t82378, a5101, cal35157, dra3929, f032112332, j5118015, ja1430ir, lra01818, rfj518300, rfj518300a, rfj518300b, 8el012429711, 8el737726001, 22818r, 119935, 210962, 210962a, 283638, 401430ri, 437822, 3140077e90, 9051815, 9213030, 12060744, 20130184, 245110702, 944390518150
  • Description
    Voltage: 14
    Amp: 70
    Pulley: Alternator
    dist.: 50.00
    Width/holder arm: 13.00
    Mounting bracket distance: 80.70
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 82.50
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL07
    Total length millimeters: 238.00
    Terminal type: L-S
    Pulley: P
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Suzuki

    Files

  • Suitable for these vehicles

    • OEM
      A002T82378, a2t82378, F032112332, ja1430ir, RFJ5-18-300, RFJ5-18-300A, RFJ5-18-300B, 31400-77e90

    • Normalised article numbler
      a002t82378, a2t82378, a5101, cal35157, dra3929, f032112332, j5118015, ja1430ir, lra01818, rfj518300, rfj518300a, rfj518300b, 8el012429711, 8el737726001, 22818r, 119935, 210962, 210962a, 283638, 401430ri, 437822, 3140077e90, 9051815, 9213030, 12060744, 20130184, 245110702, 944390518150
