HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115746

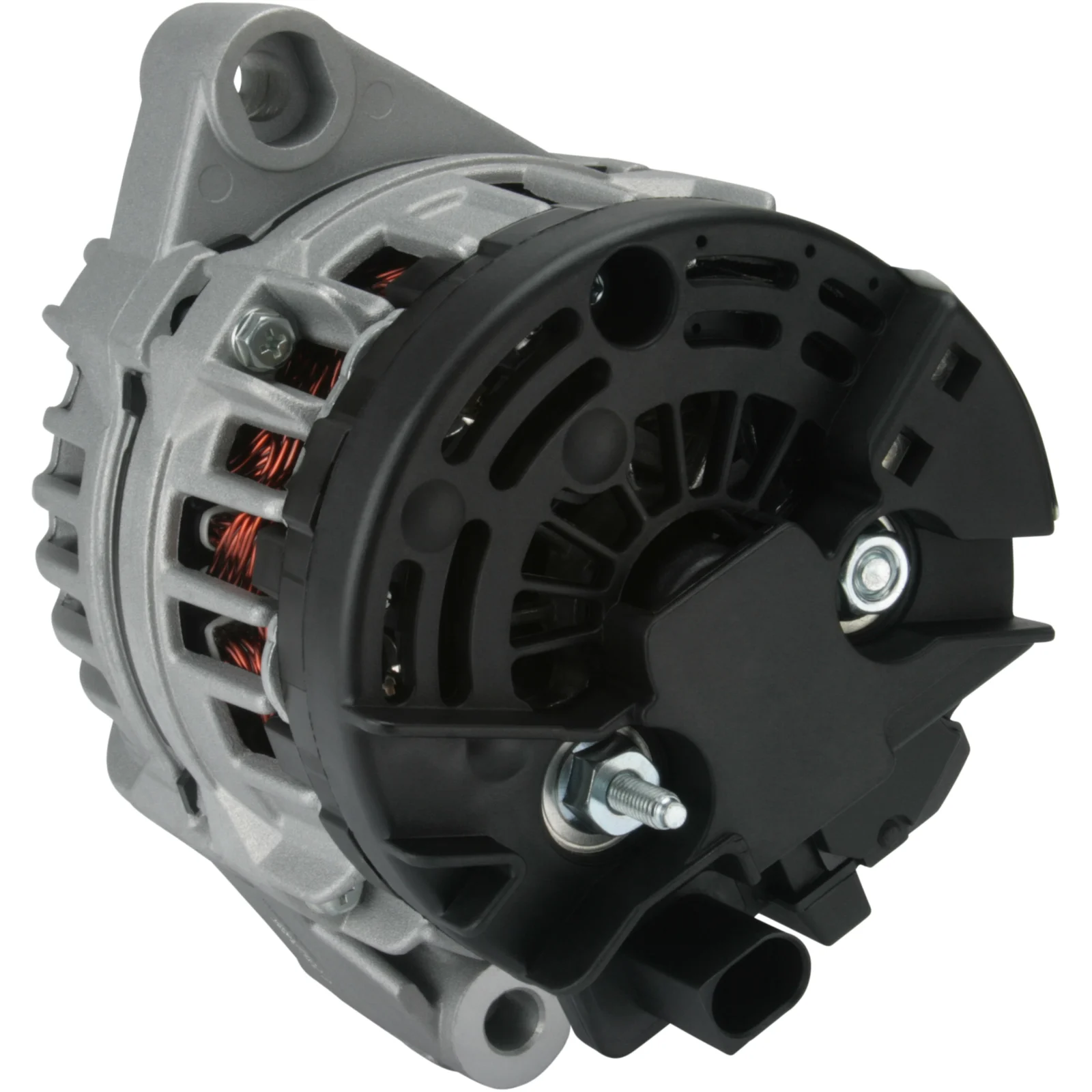

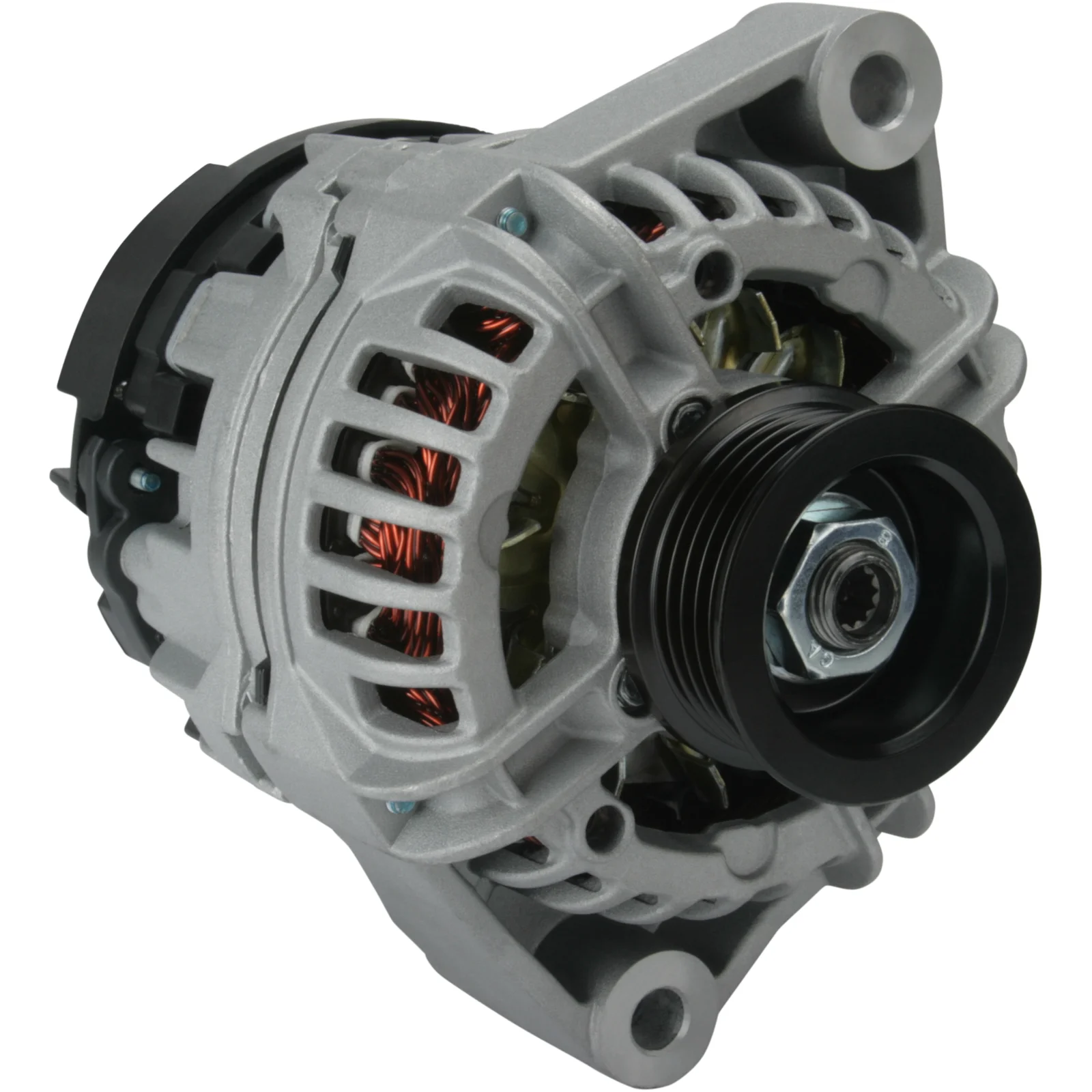

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 54.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 90.50
Width/holder arm: 58.20
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 11.40
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 80.00
B+: M6
Position/B+ in min.: 37
Rotation: CW
Plug no.: PL181
Total length mm: 174.00
Terminal type: COM
Communication: LIN
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a0131546902, F032115746, 0124225058, 0124225074, 0131546902

  • Normalised article numbler
    a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 90.50
    Width/holder arm: 58.20
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: 11.40
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 80.00
    B+: M6
    Position/B+ in min.: 37
    Rotation: CW
    Plug no.: PL181
    Total length mm: 174.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a0131546902, F032115746, 0124225058, 0124225074, 0131546902

    • Normalised article numbler
      a0131546902, a0476, cal10419, dra1223, f032115746, lra03518, 209042, 209042a, 286628, 9090729, 12090470, 0124225058, 0124225074, 0131546902, 525136902, 555573090
