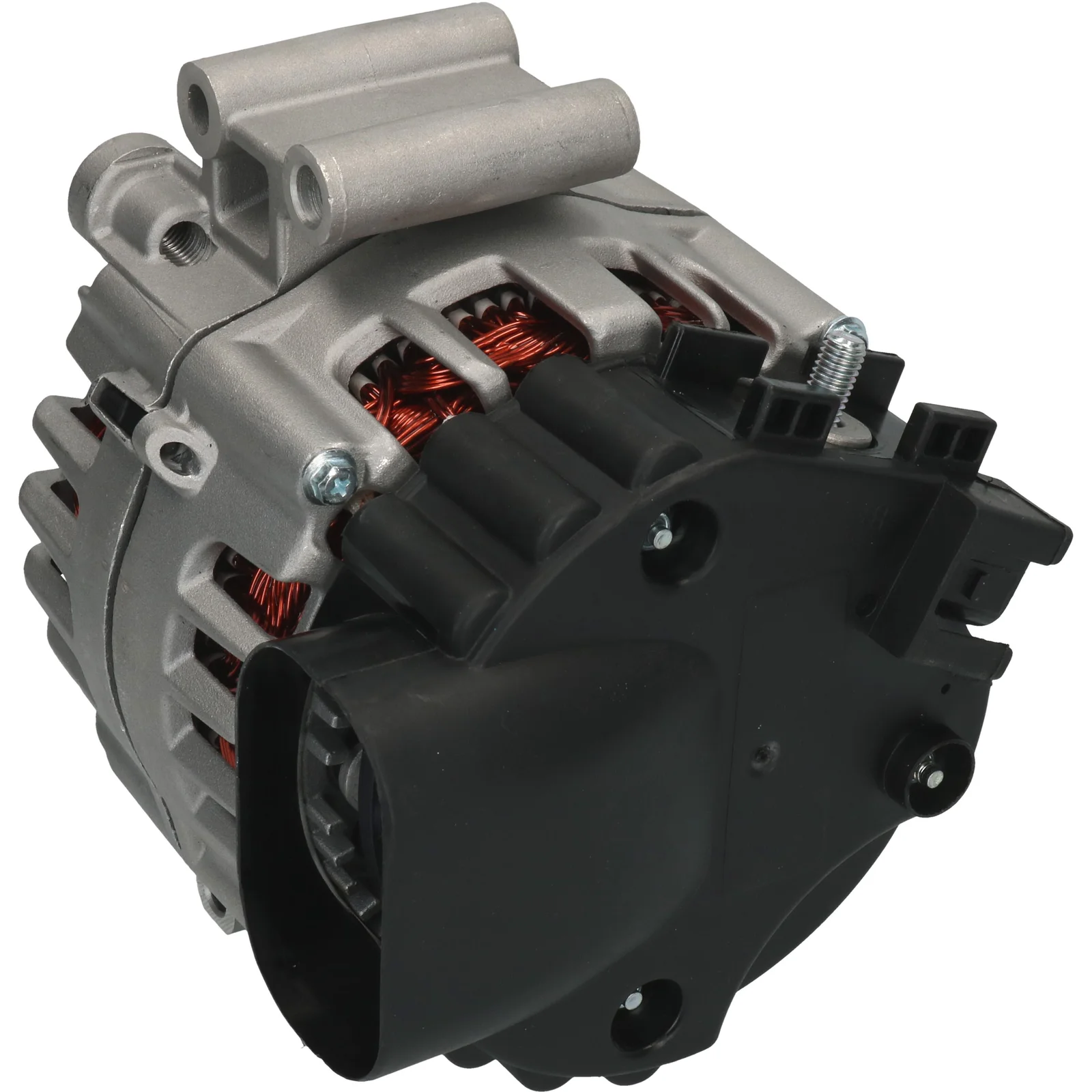

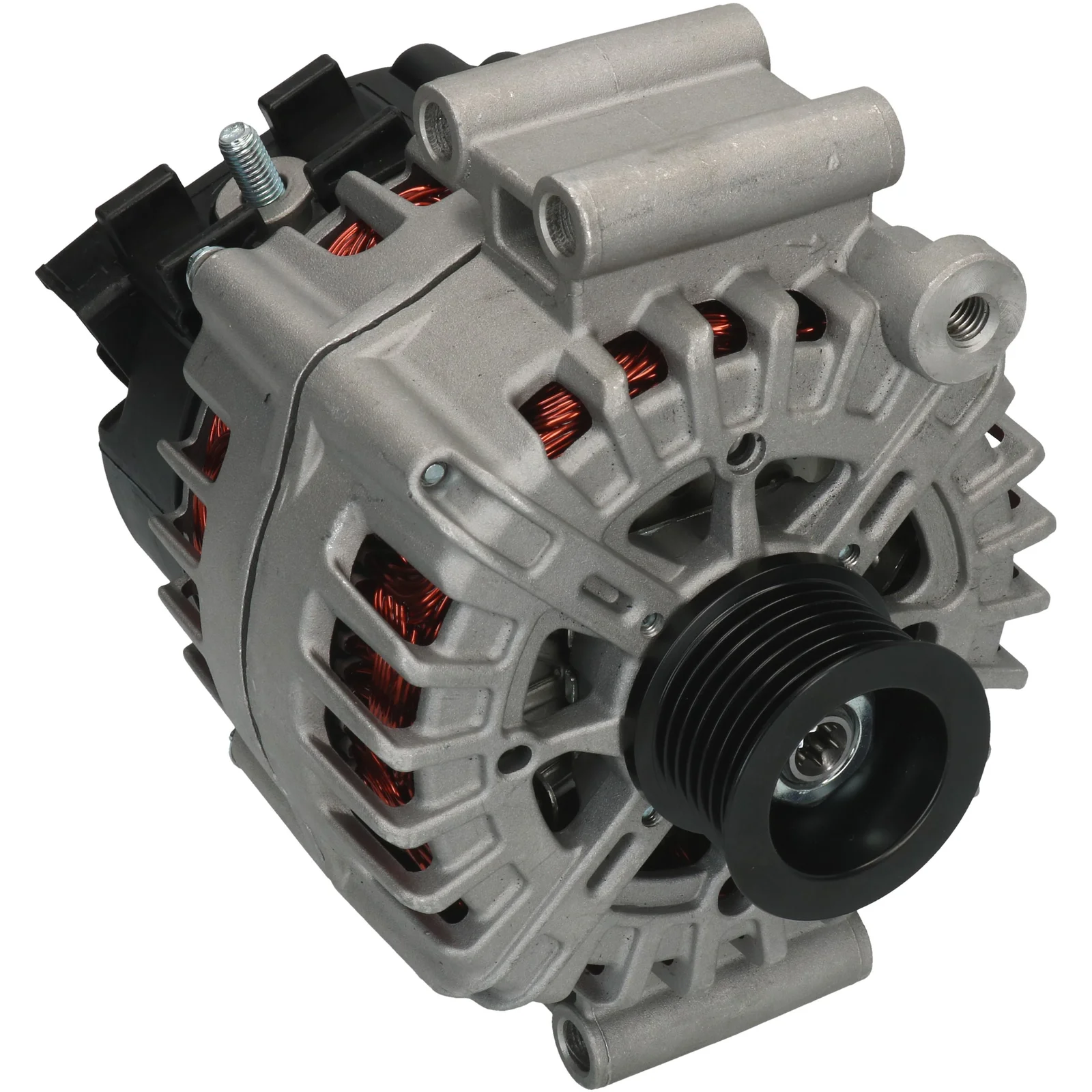

HC-Cargo Alternator
Article no.: F032115807

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 230, Rotation: CW, Mounting bracket distributor: 41.00

Description

Voltage: 14
Amp: 230
Pulley dist.: 30.00
Width/holder arm: 62.50
Mount. bracket dist.: 41.00
Bracket hole: 8.20
Belt. adj. bracket hole 1: 8.20/9.20
Pulley dia.: 48.50
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 4
Rotation: CW
Plug no.: PL86
Total length mm: 188.00
Terminal type: COM
Communication: BSS
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115807, FG23S010, FG23S043, fg23s054, 2543518, 12317575344, 12317575347, 12317603779, 12317603782

  • Normalised article numbler
    a3409s, cal15440, dra0737, f032115807, fg23s010, fg23s043, fg23s054, lra03209, 8el011713881, 11393n, 209208, 209208a, 285821, 439636, 440203, 554173ri, 2543518, 12090408, 32439636, 2151862202, 12317575344, 12317575347, 12317603779, 12317603782
  • Description
    Voltage: 14
    Amp: 230
    Pulley dist.: 30.00
    Width/holder arm: 62.50
    Mount. bracket dist.: 41.00
    Bracket hole: 8.20
    Belt. adj. bracket hole 1: 8.20/9.20
    Pulley dia.: 48.50
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 4
    Rotation: CW
    Plug no.: PL86
    Total length mm: 188.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115807, FG23S010, FG23S043, fg23s054, 2543518, 12317575344, 12317575347, 12317603779, 12317603782

    • Normalised article numbler
      a3409s, cal15440, dra0737, f032115807, fg23s010, fg23s043, fg23s054, lra03209, 8el011713881, 11393n, 209208, 209208a, 285821, 439636, 440203, 554173ri, 2543518, 12090408, 32439636, 2151862202, 12317575344, 12317575347, 12317603779, 12317603782
