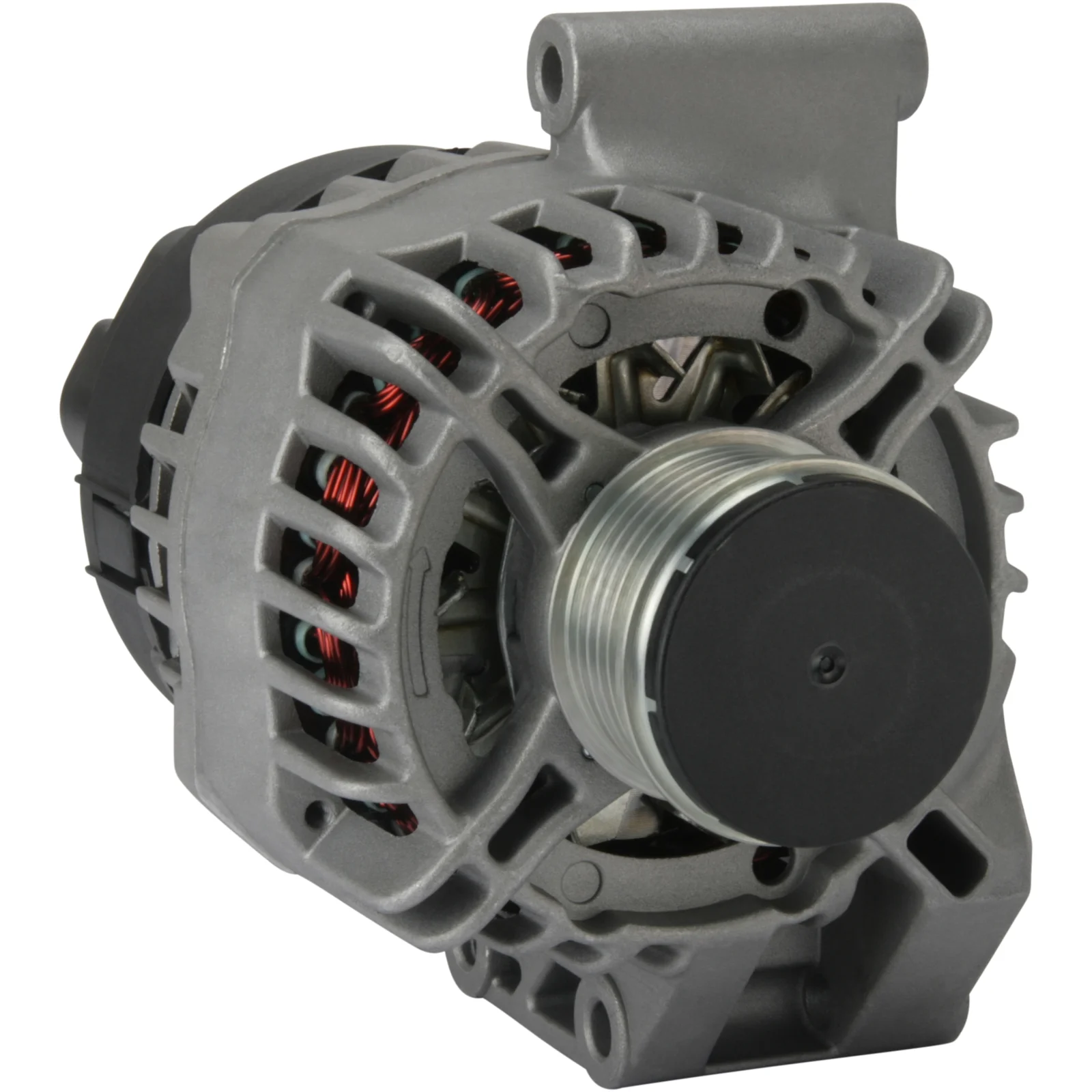

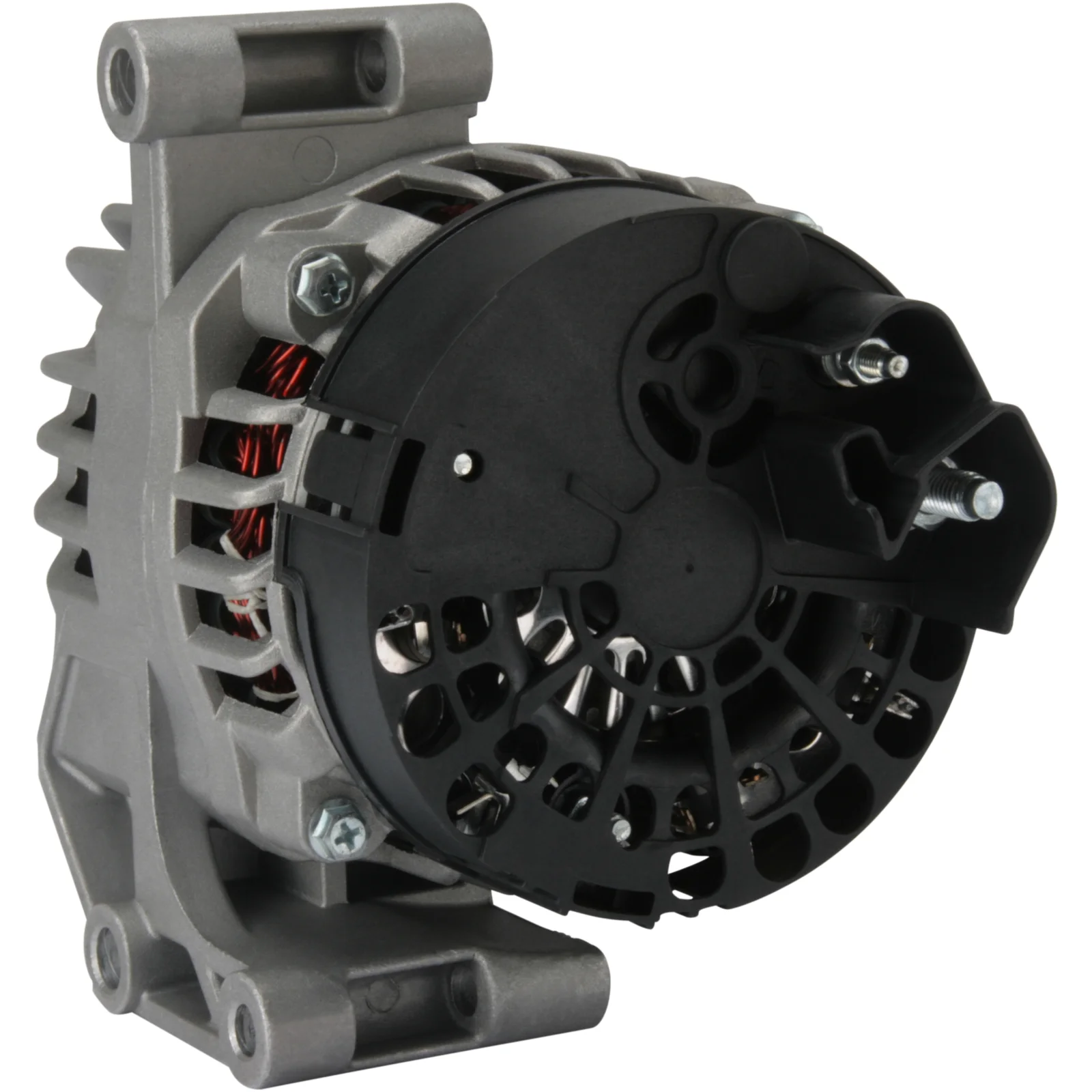

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114451

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 105, Rotation: CW, Mounting bracket distance: 55.00

Description

Opel/Fiat CDTI Alternator12V-105A 12V - 105A, 6-rib. pulley 12V - 105A, 6-rib. pulley For Yourrex product order 90-430-7533 Voltage: 14 Amp: 105 Pulley distance: 41.00 Width/holder arm: 63.50 Mounting bracket distance: 55.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 9.00/10.50 Pulley diameter: 54.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 13 D+ size: M5 Rotation: CW Total length mm: 185.00 Pulley: SP/FW Regulator type: IR

Files

  • OEM
    AZ13256929, F032114451, GM 13256929, TG9S 011, TG9S 039, TG9S011, tg9s027, TG9S039, 1934ir, 1986A01712, 101210-1130, 101210-1131, 101210-1200, 101210-1201, 102211-8620, 102211-8621, 102211-8622, 114451, 2542729, 2543479, 2543479A, 6204213, 13197578, 13243463, 13256929, 46835095, 51727335, 51784846, 51787210, 51805801, 51854911, 51854916, 52003518, 63310504, 63377023, 63377029, 63377494, 93185261, 703000096

  • Normalised article numbler
    a3133, a3133valeo, a4093, a6482denso, az13256929, cal15320, cal30217, cal30218, dan1033, dendan1033, dra0207, f032114451, gm13256929, man7023, tg9s011, tg9s027, tg9s039, 8el012241061, 8el012430041, 1934ir, 1986a01712, 9459, 22795n, 112279, 114451, 210550, 210550a, 210748, 210748a, 210752, 210752a, 285836, 301934ri, 406751, 439539, 446751, 747031, 839073, 2542729, 2543479, 2543479a, 6204213, 12090377, 12090378, 12090463, 13197578, 13243463, 13256929, 46835095, 51727335, 51784846, 51787210, 51805801, 51854911, 51854916, 52003518, 63310504, 63377023, 63377029, 063377494, 63377494, 93185261, 505573105, 703000096, 0986080980, 1012101130, 1012101131, 1012101200, 1012101201, 1022118620, 1022118621, 1022118622, 2281511052
  • Description
    Opel/Fiat CDTI Alternator12V-105A 12V - 105A, 6-rib. pulley 12V - 105A, 6-rib. pulley For Yourrex product order 90-430-7533 Voltage: 14 Amp: 105 Pulley distance: 41.00 Width/holder arm: 63.50 Mounting bracket distance: 55.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 9.00/10.50 Pulley diameter: 54.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 13 D+ size: M5 Rotation: CW Total length mm: 185.00 Pulley: SP/FW Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AZ13256929, F032114451, GM 13256929, TG9S 011, TG9S 039, TG9S011, tg9s027, TG9S039, 1934ir, 1986A01712, 101210-1130, 101210-1131, 101210-1200, 101210-1201, 102211-8620, 102211-8621, 102211-8622, 114451, 2542729, 2543479, 2543479A, 6204213, 13197578, 13243463, 13256929, 46835095, 51727335, 51784846, 51787210, 51805801, 51854911, 51854916, 52003518, 63310504, 63377023, 63377029, 63377494, 93185261, 703000096

    • Normalised article numbler
      a3133, a3133valeo, a4093, a6482denso, az13256929, cal15320, cal30217, cal30218, dan1033, dendan1033, dra0207, f032114451, gm13256929, man7023, tg9s011, tg9s027, tg9s039, 8el012241061, 8el012430041, 1934ir, 1986a01712, 9459, 22795n, 112279, 114451, 210550, 210550a, 210748, 210748a, 210752, 210752a, 285836, 301934ri, 406751, 439539, 446751, 747031, 839073, 2542729, 2543479, 2543479a, 6204213, 12090377, 12090378, 12090463, 13197578, 13243463, 13256929, 46835095, 51727335, 51784846, 51787210, 51805801, 51854911, 51854916, 52003518, 63310504, 63377023, 63377029, 063377494, 63377494, 93185261, 505573105, 703000096, 0986080980, 1012101130, 1012101131, 1012101200, 1012101201, 1022118620, 1022118621, 1022118622, 2281511052
