HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113519

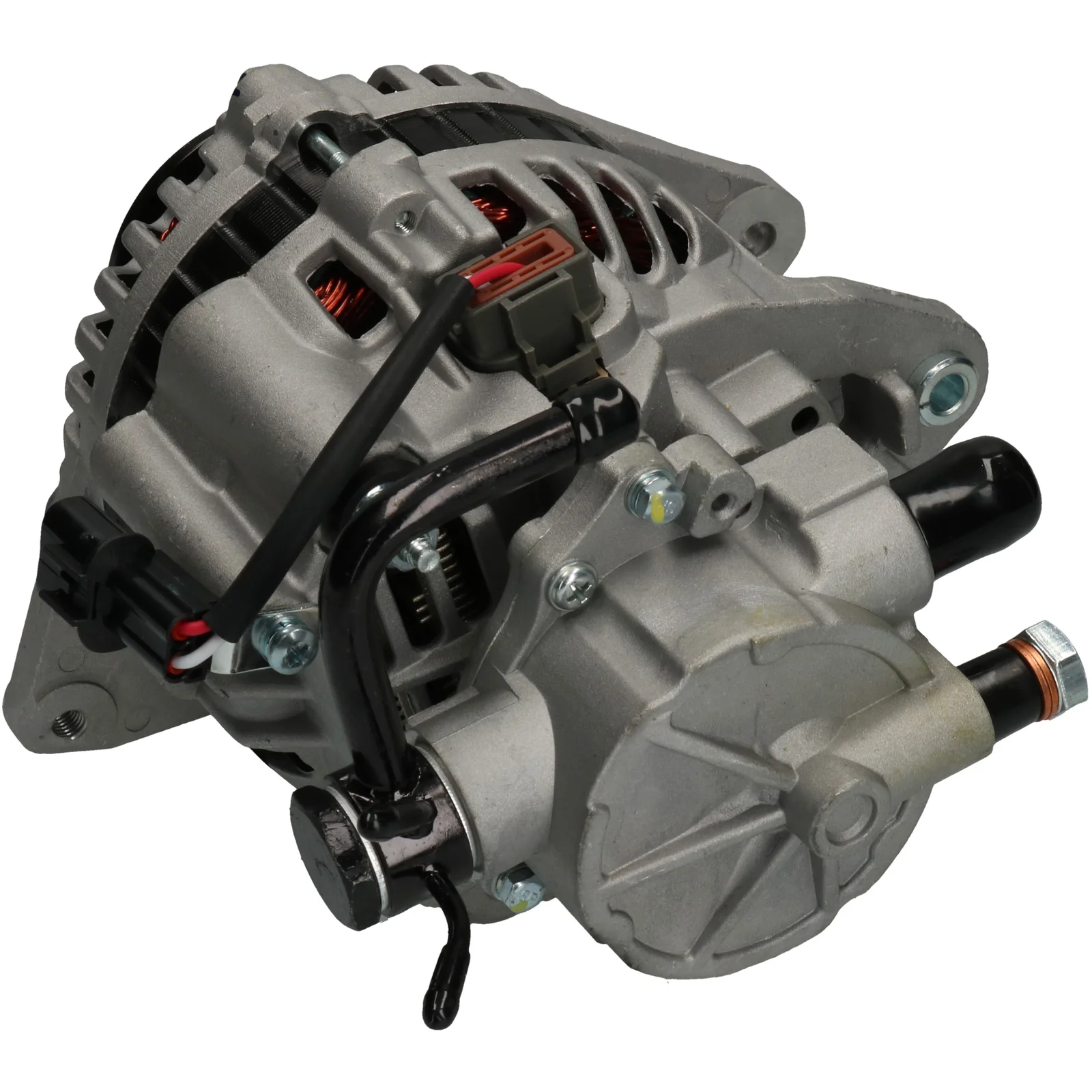

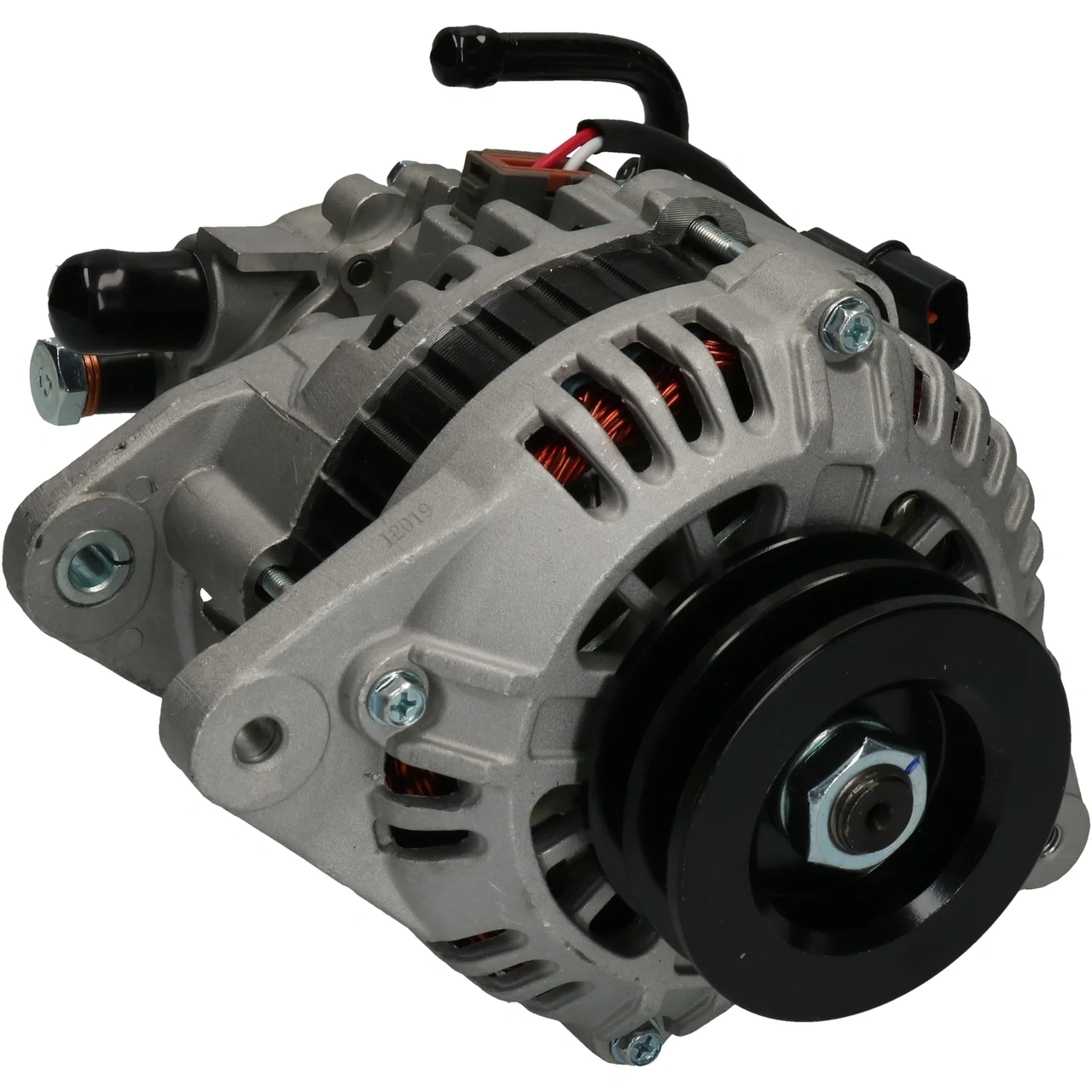

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 90
Pulley Diameter: 42.00
Width/holder arm: 13.00
Mount. bracket distance: 55.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 79.50
Grooves/pulley: 2
Radius: 90.00
Radius 2: 98.00
B+: M6
Position/B+ in minutes: 10
D+ Size: Plug
Rotation: clockwise
Plug number: PL111
Total length mm: 223.00
Pulley: DP
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Hyundai

Files

  • OEM
    af175207, AF175362, AF175385, af190216, AF190217, F032113519, ja1717ir, N370-18-300, N370-18-300A, N370-18-300B, N370-18-300H, TA000A58602, 37300-42542, 37300-42860, 37300-42870, 37300-42871, 37300-47500, 37300-47501, 37300-47502, 37300-47503

  • Normalised article numbler
    a3246valeo, a3255valeo, a5244, a9037, a9280s, af175207, af175362, af175385, af190216, af190217, alth145, ama392, cal32113, cal32118, dra3178, dra4175, dra4176, dra4176x, f032113519, f042a0h145, j5110516, j5110526, j5113028, ja1717ir, lra01372, lra01682, lra01956, lra02340, n37018300, n37018300a, n37018300b, n37018300h, ta000a58602, 8el011711261, 8el011711271, 8el738103001, 8el738104001, 9404, 13337n, 13337r, 22956n, 111215, 210331, 210331a, 210332, 210332a, 210385, 210385a, 210644, 210644a, 281780, 282906, 283852, 284840, 401716ri, 401717ri, 600006, 600018, 600021, 600278, 600283, 608359, 2451328, 2451329, 9213286, 12060115, 12060764, 12060811, 063532603, 063532606, 224128802, 526127752, 526127902, 526139752, 0986049720, 0986080130, 3730042542, 3730042860, 3730042870, 3730042871, 3730047500, 3730047501, 3730047502, 3730047503, 063532603010, 063532606010, 944390605030, 944390904510
  • Description
    Voltage: 14
    Amp: 90
    Pulley Diameter: 42.00
    Width/holder arm: 13.00
    Mount. bracket distance: 55.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 79.50
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 98.00
    B+: M6
    Position/B+ in minutes: 10
    D+ Size: Plug
    Rotation: clockwise
    Plug number: PL111
    Total length mm: 223.00
    Pulley: DP
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      af175207, AF175362, AF175385, af190216, AF190217, F032113519, ja1717ir, N370-18-300, N370-18-300A, N370-18-300B, N370-18-300H, TA000A58602, 37300-42542, 37300-42860, 37300-42870, 37300-42871, 37300-47500, 37300-47501, 37300-47502, 37300-47503

    • Normalised article numbler
      a3246valeo, a3255valeo, a5244, a9037, a9280s, af175207, af175362, af175385, af190216, af190217, alth145, ama392, cal32113, cal32118, dra3178, dra4175, dra4176, dra4176x, f032113519, f042a0h145, j5110516, j5110526, j5113028, ja1717ir, lra01372, lra01682, lra01956, lra02340, n37018300, n37018300a, n37018300b, n37018300h, ta000a58602, 8el011711261, 8el011711271, 8el738103001, 8el738104001, 9404, 13337n, 13337r, 22956n, 111215, 210331, 210331a, 210332, 210332a, 210385, 210385a, 210644, 210644a, 281780, 282906, 283852, 284840, 401716ri, 401717ri, 600006, 600018, 600021, 600278, 600283, 608359, 2451328, 2451329, 9213286, 12060115, 12060764, 12060811, 063532603, 063532606, 224128802, 526127752, 526127902, 526139752, 0986049720, 0986080130, 3730042542, 3730042860, 3730042870, 3730042871, 3730047500, 3730047501, 3730047502, 3730047503, 063532603010, 063532606010, 944390605030, 944390904510
