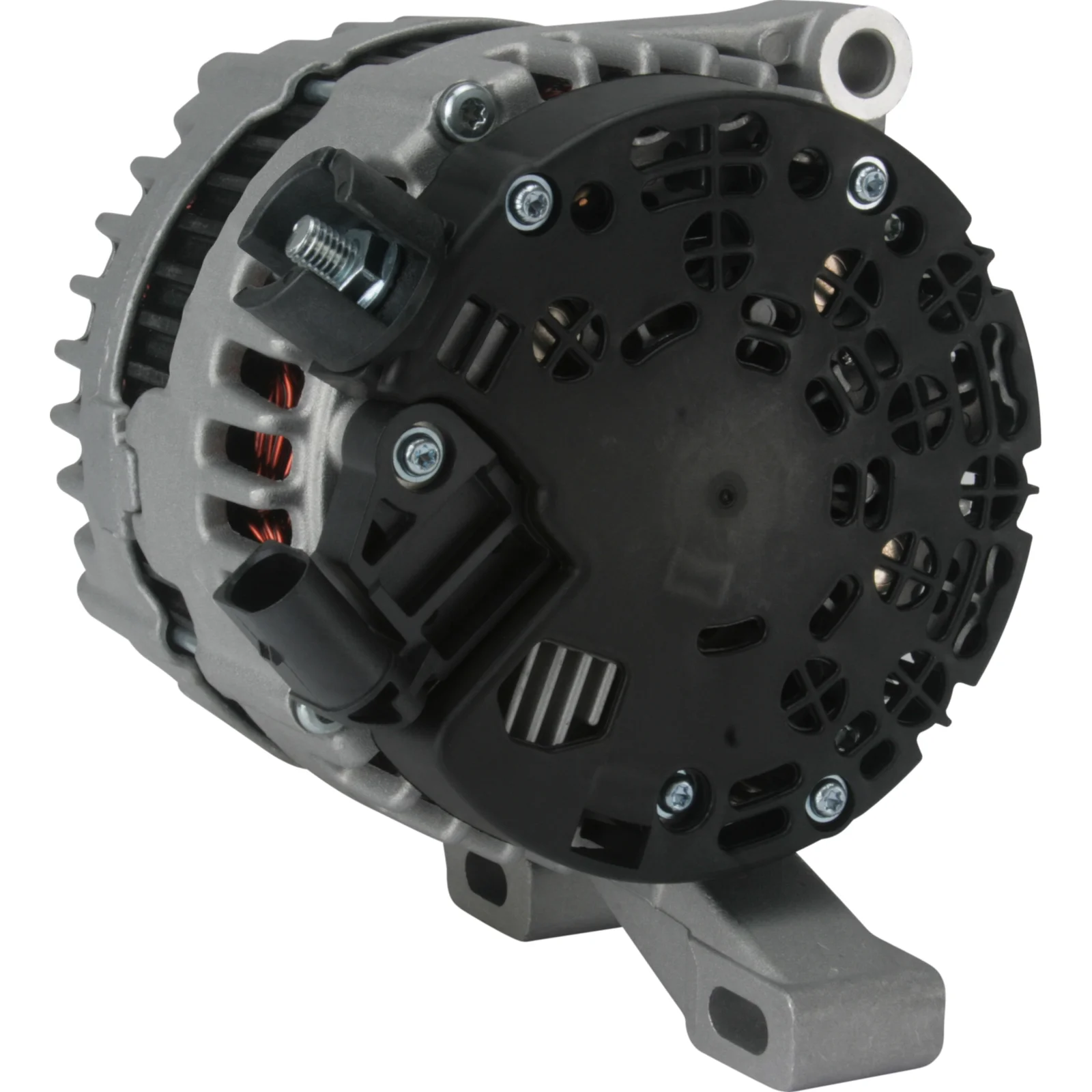

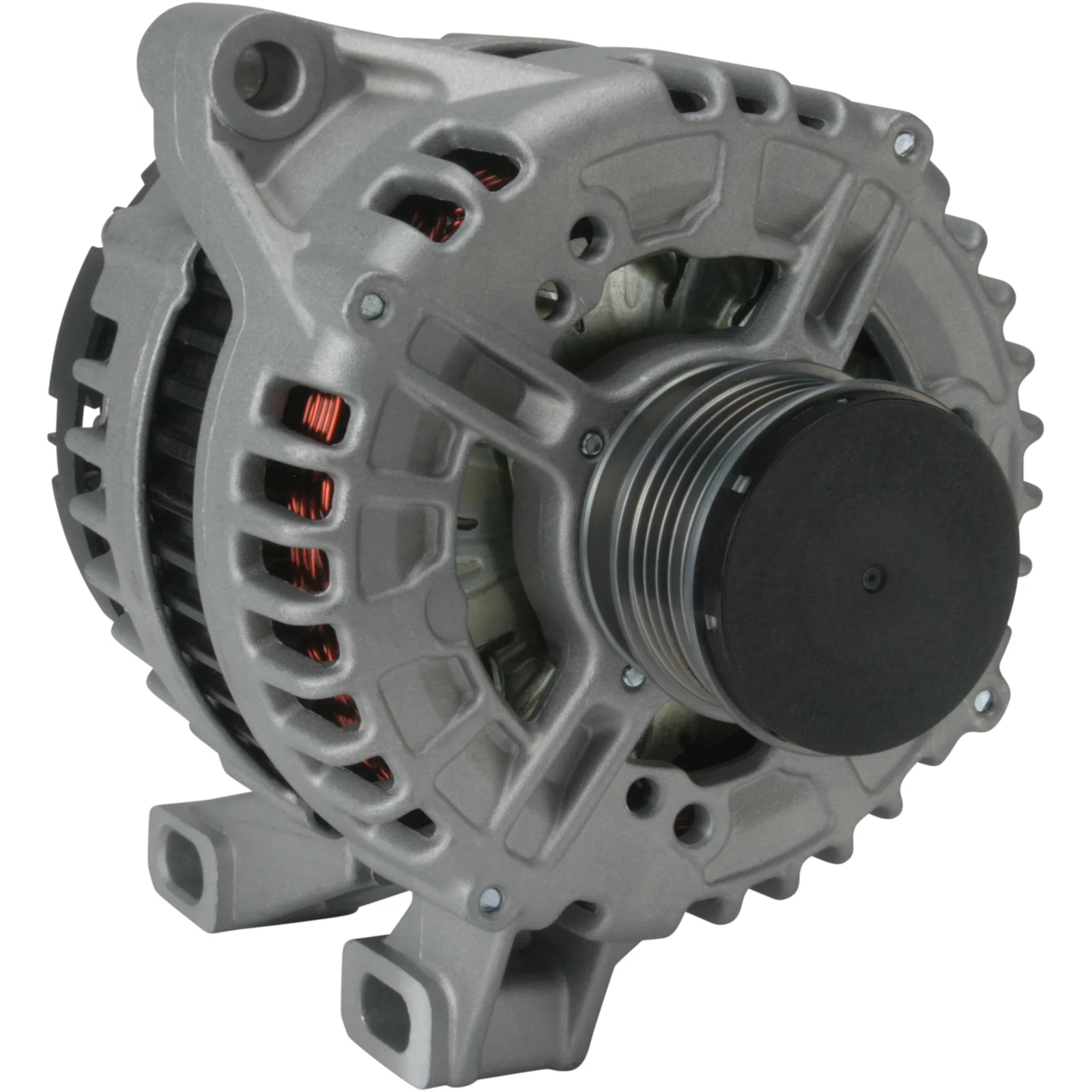

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115412

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 92.00

Description

Generator 12V-180A fits Volvo 12V - 180A, 5-pin connector (LIN) ID code: 88 5-pin connector (LIN), For Yourex product order 91-600-6093

Voltage: 14
Amp: 180
Pulley distance: 61.00
Width/holder arm: 32.00
Mounting bracket distance: 92.00
Bracket hole: 9.00x18.00
Belt adjustment bracket hole position: 54
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 50
Rotation: CW
Plug number: PL137
Total length mm: 194.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115412, 6G9N-10300JB, 6G9N-10300JD, 6g9n10300jb, 6G9N10300JD, 90-600-6093, 0121 715 008, 0121 715 079, 0121 715 179, 0125 811 005, 0125 811 020, 0125 811 109, 0125 811 110, 0986 048 400, 1986A01054, 2001ir, 115412, 3601261, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410

  • Normalised article numbler
    a0432, a0432pr, a0439, a0439bosch, a0564s, cal10449, dra0283, dra0871, f032115412, lea0788, lra03376, lra03568, 6g9n10300jb, 6g9n10300jd, 8el011712231, 8el738212611, 1986a01054, 2001ir, 11478n, 20620r, 113048, 115412, 209032, 209032a, 285988, 286678, 302001ri, 440906, 443397, 3601261, 9090555, 12090230, 12090425, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 32048400, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410, 815532180, 906006093, 0986048400, 0986048407, 2191921802, 2381591802
  • Description

    Generator 12V-180A fits Volvo 12V - 180A, 5-pin connector (LIN) ID code: 88 5-pin connector (LIN), For Yourex product order 91-600-6093

    Voltage: 14
    Amp: 180
    Pulley distance: 61.00
    Width/holder arm: 32.00
    Mounting bracket distance: 92.00
    Bracket hole: 9.00x18.00
    Belt adjustment bracket hole position: 54
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 50
    Rotation: CW
    Plug number: PL137
    Total length mm: 194.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115412, 6G9N-10300JB, 6G9N-10300JD, 6g9n10300jb, 6G9N10300JD, 90-600-6093, 0121 715 008, 0121 715 079, 0121 715 179, 0125 811 005, 0125 811 020, 0125 811 109, 0125 811 110, 0986 048 400, 1986A01054, 2001ir, 115412, 3601261, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410

    • Normalised article numbler
      a0432, a0432pr, a0439, a0439bosch, a0564s, cal10449, dra0283, dra0871, f032115412, lea0788, lra03376, lra03568, 6g9n10300jb, 6g9n10300jd, 8el011712231, 8el738212611, 1986a01054, 2001ir, 11478n, 20620r, 113048, 115412, 209032, 209032a, 285988, 286678, 302001ri, 440906, 443397, 3601261, 9090555, 12090230, 12090425, 30659131, 30659136, 30659341, 30667119, 31285628, 31419556, 32048400, 36000038, 36001341, 36001454, 36012619, 0121715008, 0121715079, 0121715108, 0121715179, 0125811002, 0125811005, 0125811019, 0125811020, 0125811109, 0125811110, 360013410, 815532180, 906006093, 0986048400, 0986048407, 2191921802, 2381591802
