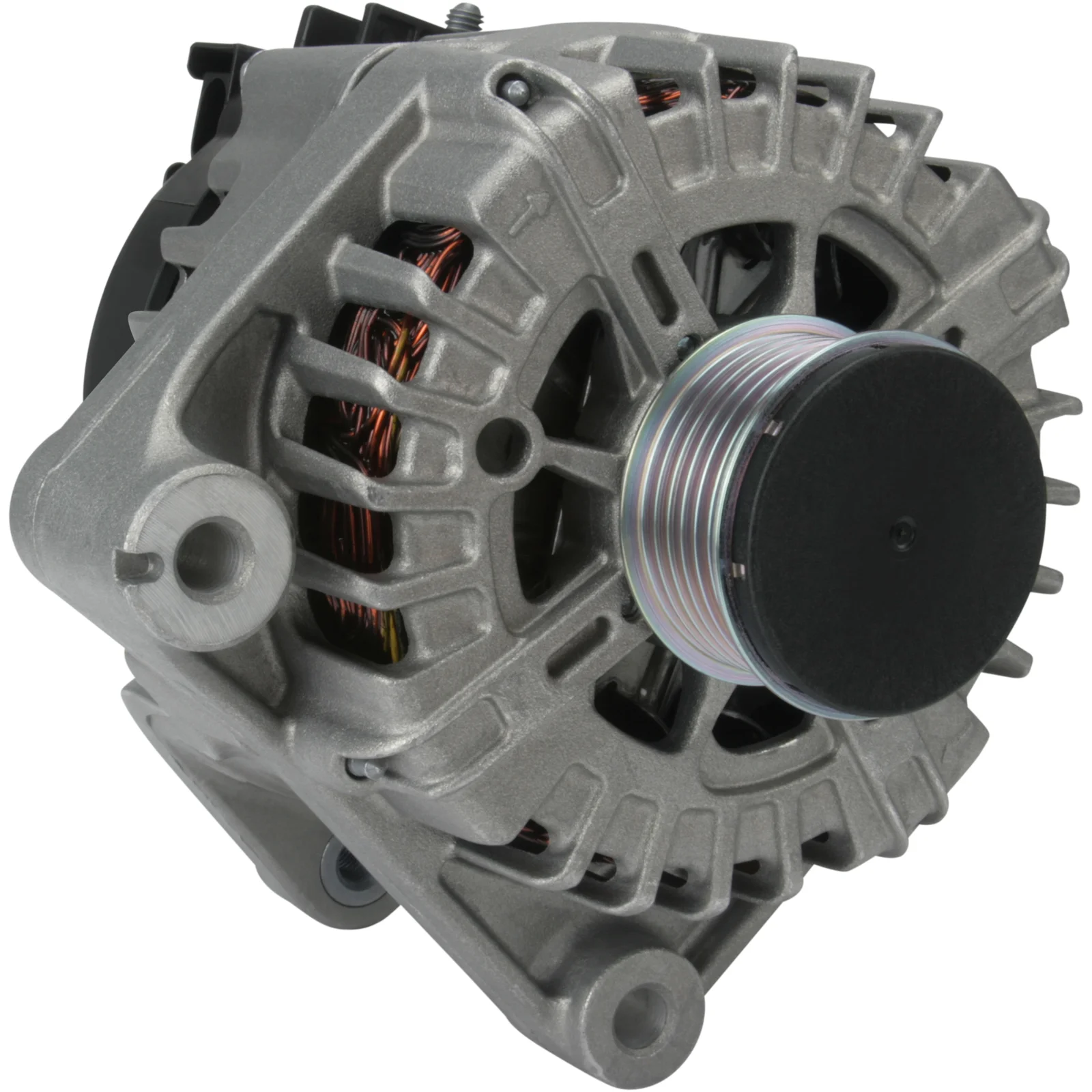

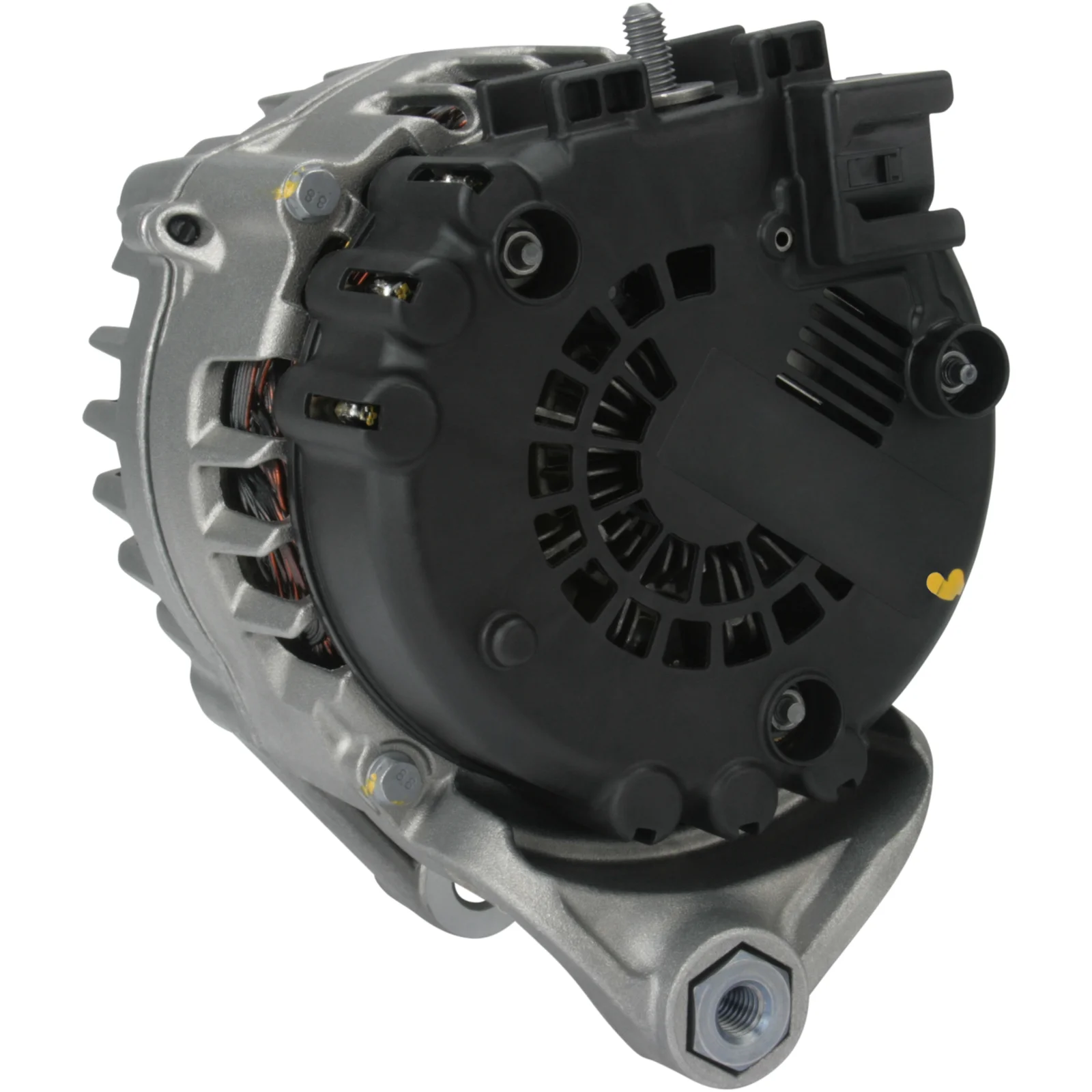

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114292

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 75.00

Description

BMW Diesel Alternator 12V-180A 12V - 180A, 6grooves (BSS) For Yourex product order 90-040-8220

Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.00
Mounting bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, F032114292, FG18S 019, FGN18S019, LRA03100, TG18S052, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 0986 082 200, 1231 7802261, 1231 7802619, 1986A00560, 4786, 24100, 24100N, 24100R, 114292, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 2543461, 2543461B, 2543461C, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023

  • Normalised article numbler
    a3264, a3264pr, a3264s, a3264valeo, cal15368, f032114292, fg18s019, fgn18s019, lra03100, tg18s052, 8el012430231, 8el738212671, 1986a00560, 4786, 24100, 24100n, 24100r, 114292, 200201, 210771, 210771a, 285712, 439613, 440183, 553395ri, 747117, 2543461, 2543461b, 2543461c, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 215538180, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023
  • Description
    BMW Diesel Alternator 12V-180A 12V - 180A, 6grooves (BSS) For Yourex product order 90-040-8220

    Voltage: 14
    Amp: 180
    Pulley dist.: 57.00
    Width/holder arm: 28.00
    Mounting bracket dist.: 75.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 10.30
    Pulley dia.: 53.50
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 59
    Rotation: CW
    Plug no.: PL125
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, F032114292, FG18S 019, FGN18S019, LRA03100, TG18S052, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 0986 082 200, 1231 7802261, 1231 7802619, 1986A00560, 4786, 24100, 24100N, 24100R, 114292, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 2543461, 2543461B, 2543461C, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023

    • Normalised article numbler
      a3264, a3264pr, a3264s, a3264valeo, cal15368, f032114292, fg18s019, fgn18s019, lra03100, tg18s052, 8el012430231, 8el738212671, 1986a00560, 4786, 24100, 24100n, 24100r, 114292, 200201, 210771, 210771a, 285712, 439613, 440183, 553395ri, 747117, 2543461, 2543461b, 2543461c, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 215538180, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023
