HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116242

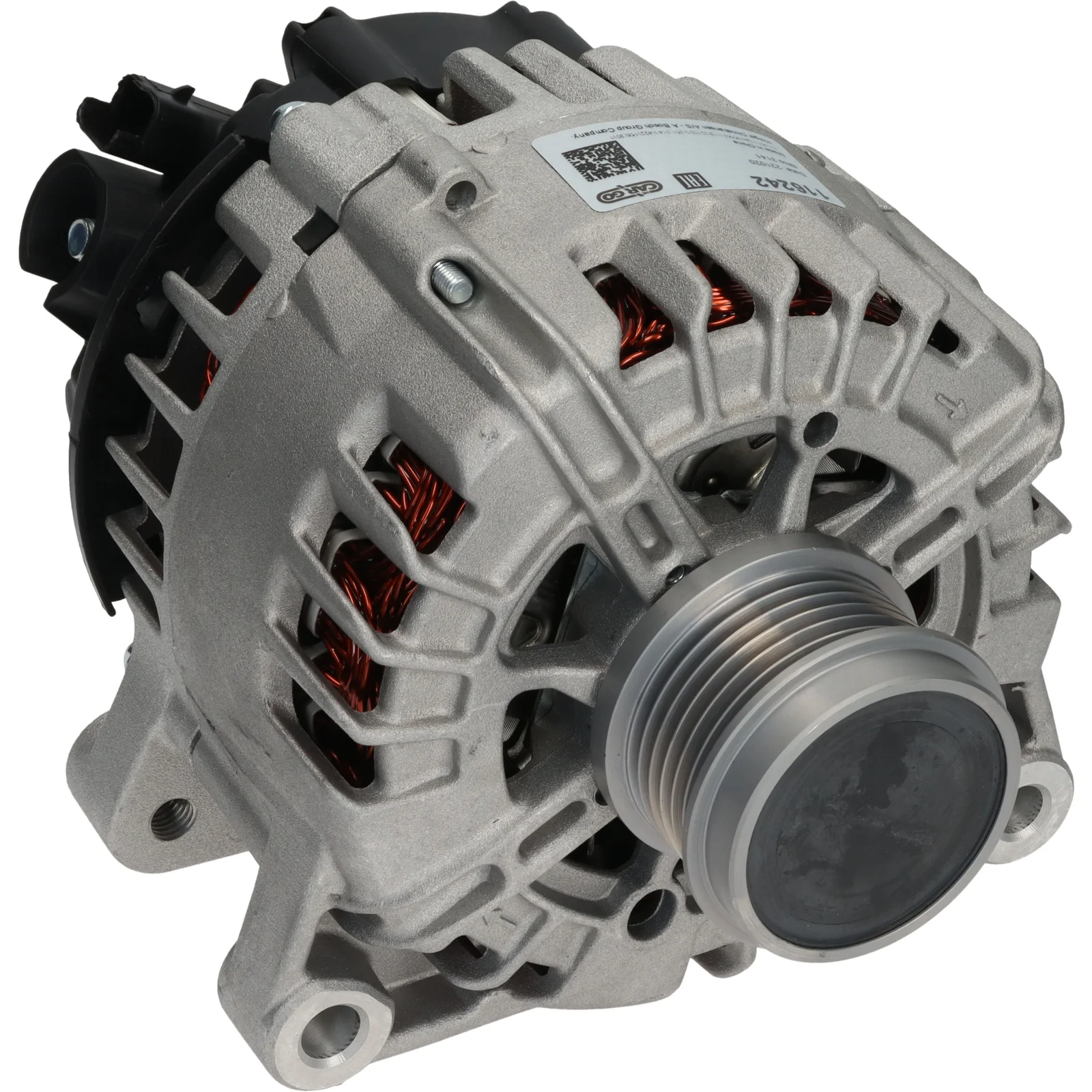

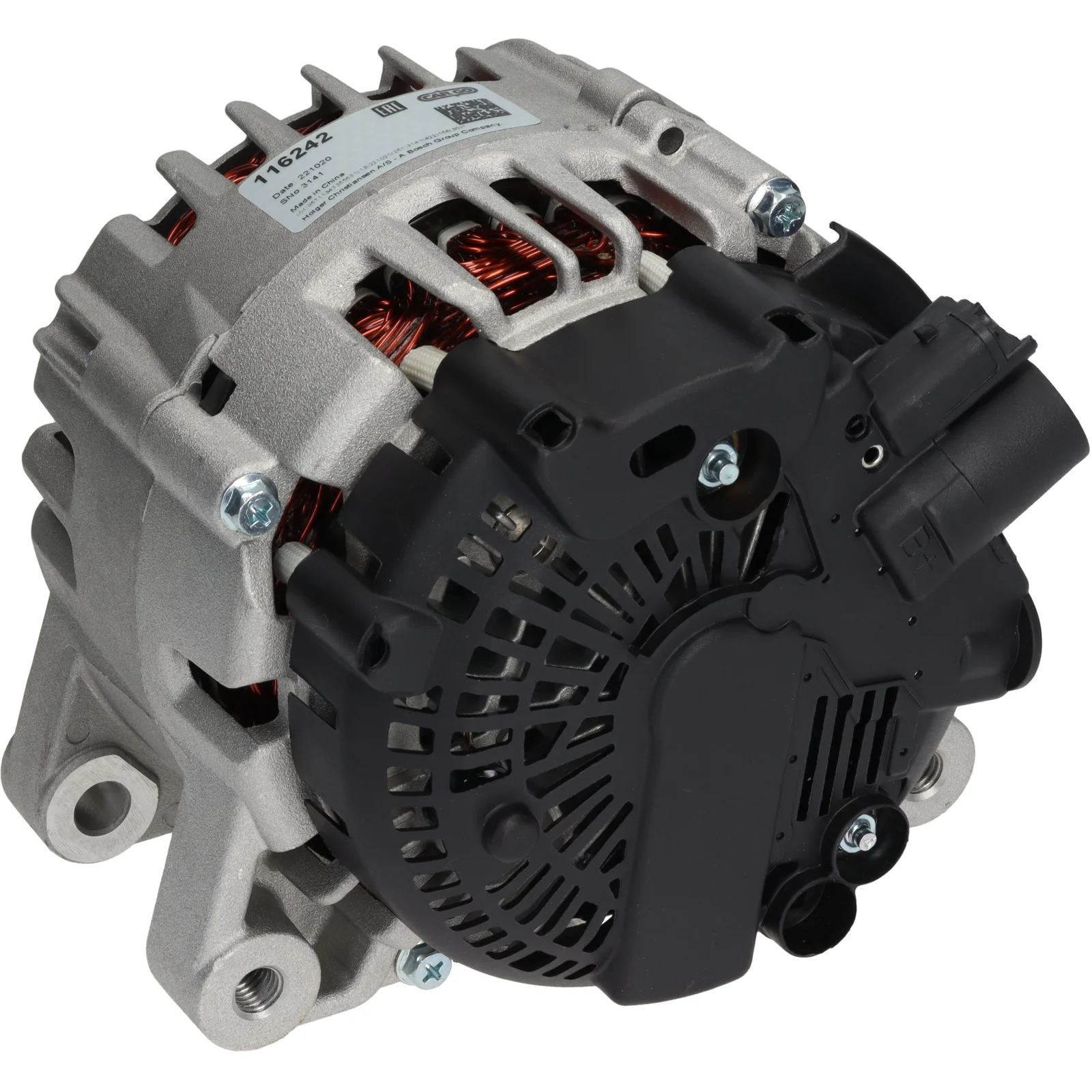

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 45.50

Description

Voltage: 14
Amp: 180
Pulley distributor: 42.50
Width/holder arm: 21.00
Mounting bracket distributor: 45.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL132
Total length mm: 186.00
Terminal type: COM
ID Code: 41
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116242, FG18T 145, FG18T106, FG18T145, SU001-A4986, 1986A00601, 2624328, 2624328A, 9678058480, 9810527180

  • Normalised article numbler
    a3193pr, a3193s, cal15030, dra1599, f032116242, fg18t106, fg18t145, su001a4986, 1986a00601, 20649n, 20649noe, 439932, 440676, 2624328, 2624328a, 32082510, 225572180, 0986084650, 9678058480, 9810527180
  • Description
    Voltage: 14
    Amp: 180
    Pulley distributor: 42.50
    Width/holder arm: 21.00
    Mounting bracket distributor: 45.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL132
    Total length mm: 186.00
    Terminal type: COM
    ID Code: 41
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116242, FG18T 145, FG18T106, FG18T145, SU001-A4986, 1986A00601, 2624328, 2624328A, 9678058480, 9810527180

    • Normalised article numbler
      a3193pr, a3193s, cal15030, dra1599, f032116242, fg18t106, fg18t145, su001a4986, 1986a00601, 20649n, 20649noe, 439932, 440676, 2624328, 2624328a, 32082510, 225572180, 0986084650, 9678058480, 9810527180
