HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114131

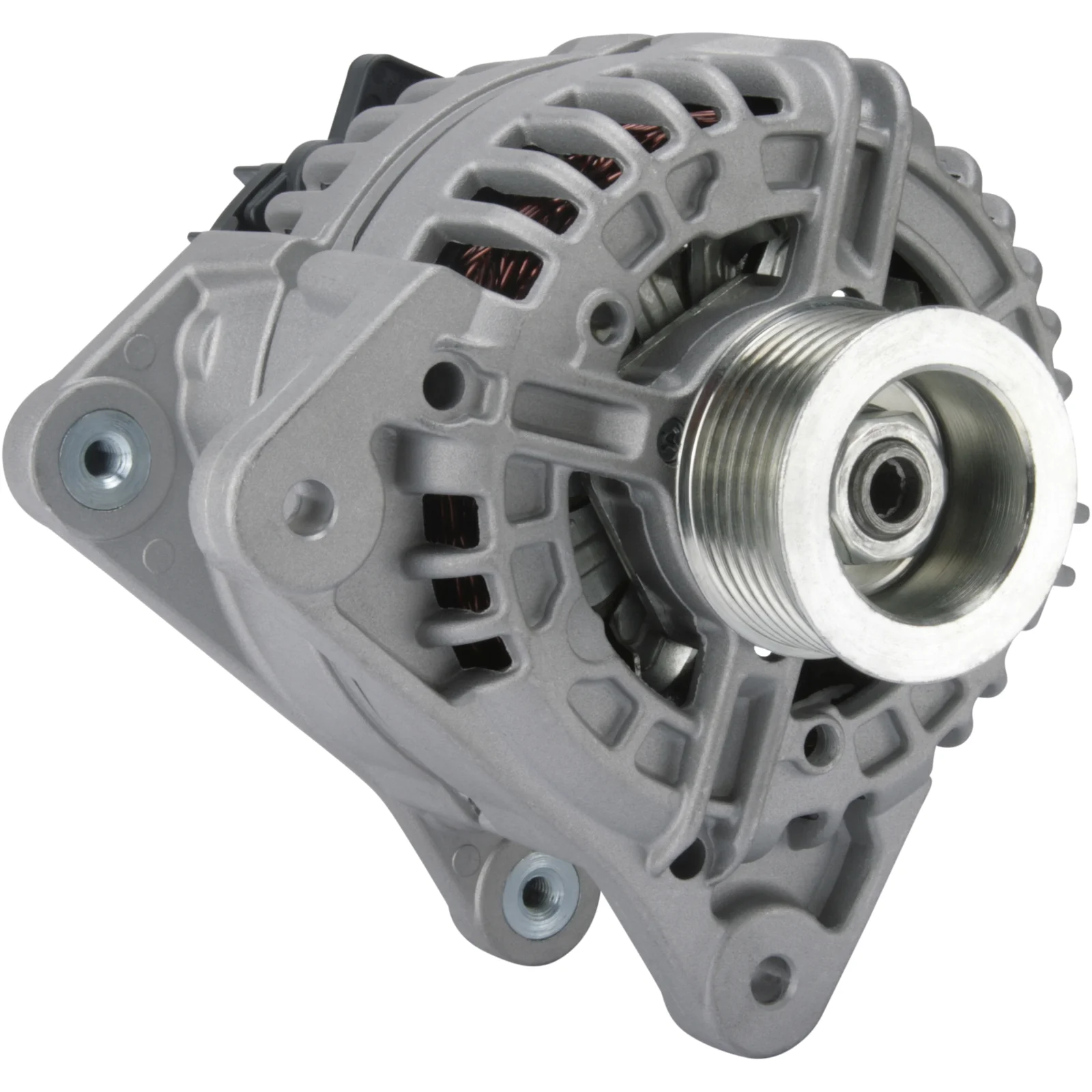

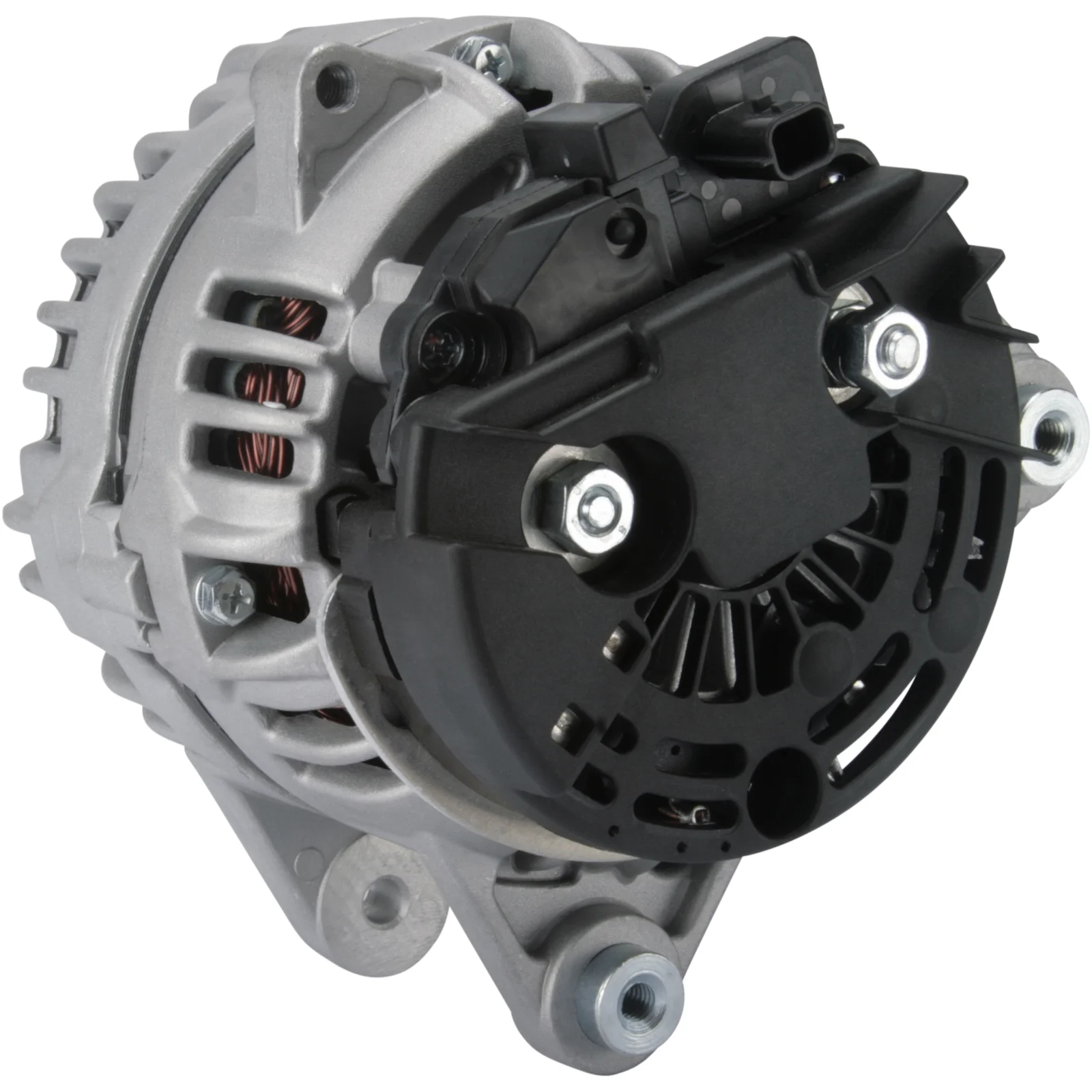

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Renault Alternator 12V-90A 12V - 90A, 7 teeth. (COM) B2+ (M8), COM For Yourex product order 90-480-4644 Voltage: 14 Amp: 90 Pulley distance: 32.00 Width/holder arm: 14.20 Mounting bracket distance: 61.00 Bracket hole: 8.70 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.70 Pulley diameter: 57.00 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 10 Rotation: CW Plug number: PL124 Total length mm: 182.00 Terminal type: COM Communication: BSS Pulley: SP Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114131, TG9B 042, 0124 325 102, 0124 325 139, 0124 325 186, 0986 046 440, 1866ir, 1986A00810, 8200 429 898, 114131, 440185, 0124325102, 0124325139, 0124325176, 0124325186, 8200269448, 8200323138, 8200406207, 8200406270, 8200429898, 8200634135, 8200660037

  • Normalised article numbler
    a3139, a3139pr, a3139s, a3139valeo, alth198, cal10285, drb6440, drb6440x, f032114131, f042a0h198, lra02881, tg9b042, 8el011360941, 8el012430221, 8el738211411, 1866ir, 1986a00810, 4674, 23880n, 23880r, 111577, 112646, 114131, 210696, 210696a, 284998, 301866ri, 440185, 9046440, 32325186, 0124325102, 0124325139, 0124325176, 0124325186, 230329902, 0986046440, 8200269448, 8200323138, 8200406207, 8200406270, 8200429898, 8200634135, 8200660037
  • Description
    Renault Alternator 12V-90A 12V - 90A, 7 teeth. (COM) B2+ (M8), COM For Yourex product order 90-480-4644 Voltage: 14 Amp: 90 Pulley distance: 32.00 Width/holder arm: 14.20 Mounting bracket distance: 61.00 Bracket hole: 8.70 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.70 Pulley diameter: 57.00 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 10 Rotation: CW Plug number: PL124 Total length mm: 182.00 Terminal type: COM Communication: BSS Pulley: SP Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114131, TG9B 042, 0124 325 102, 0124 325 139, 0124 325 186, 0986 046 440, 1866ir, 1986A00810, 8200 429 898, 114131, 440185, 0124325102, 0124325139, 0124325176, 0124325186, 8200269448, 8200323138, 8200406207, 8200406270, 8200429898, 8200634135, 8200660037

    • Normalised article numbler
      a3139, a3139pr, a3139s, a3139valeo, alth198, cal10285, drb6440, drb6440x, f032114131, f042a0h198, lra02881, tg9b042, 8el011360941, 8el012430221, 8el738211411, 1866ir, 1986a00810, 4674, 23880n, 23880r, 111577, 112646, 114131, 210696, 210696a, 284998, 301866ri, 440185, 9046440, 32325186, 0124325102, 0124325139, 0124325176, 0124325186, 230329902, 0986046440, 8200269448, 8200323138, 8200406207, 8200406270, 8200429898, 8200634135, 8200660037
