HC-Cargo Alternator

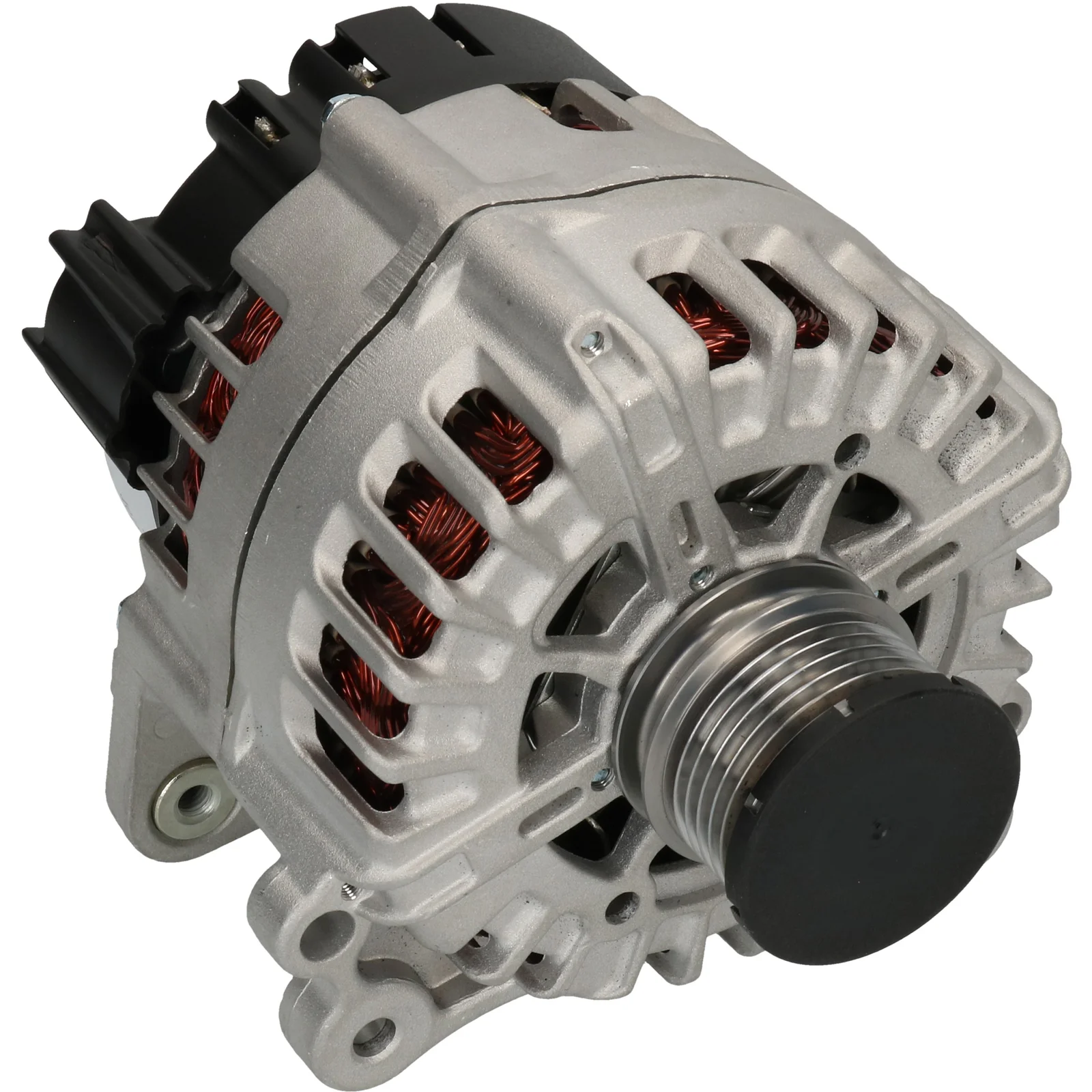

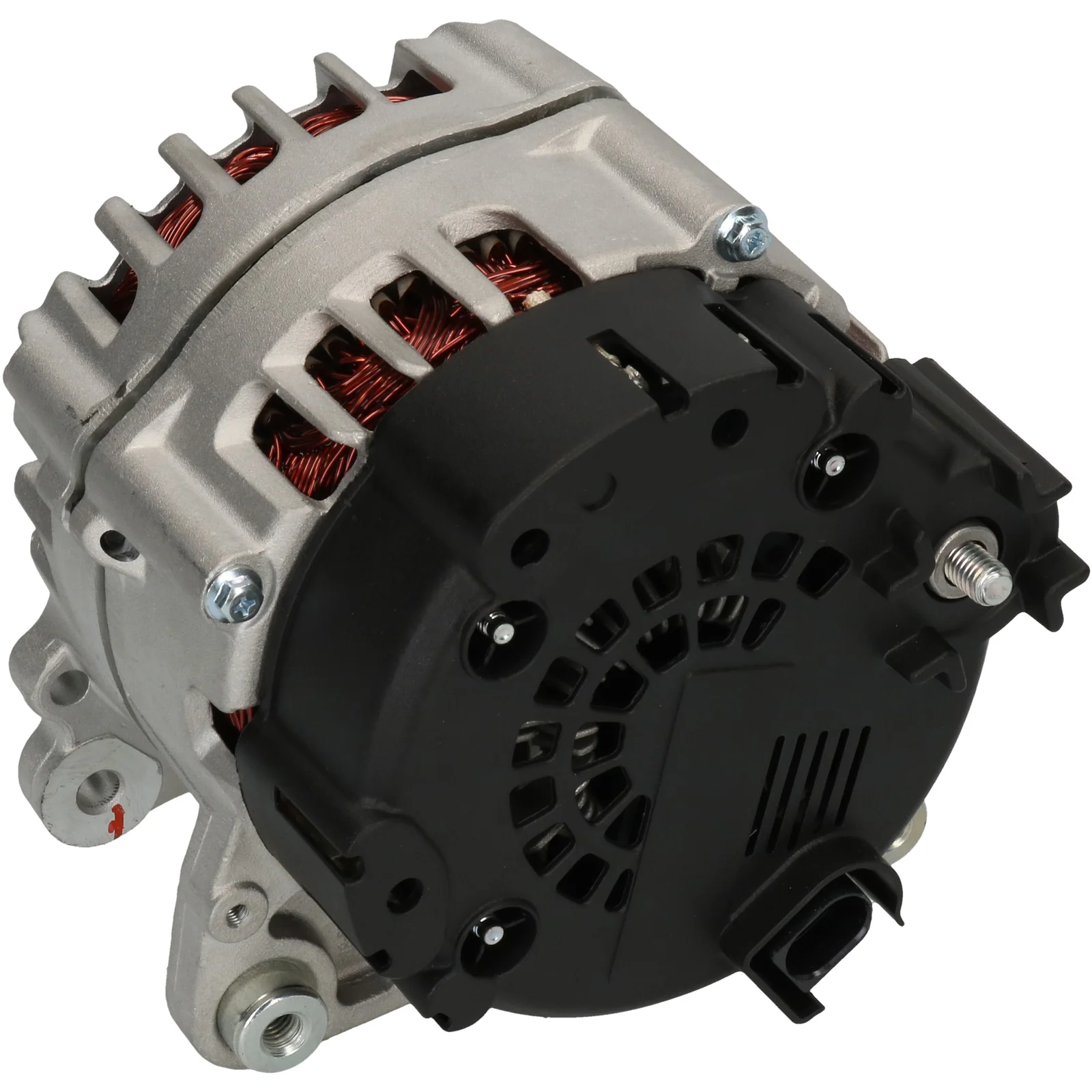

HC-Cargo Alternator
Article no.: F032116146

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 200, Rotation: CW, Mounting bracket distributor: 60.00

Description

Voltage: 14
Amp: 200
Pulley diameter: 40.50
Width/holder arm: 14.00
Mounting bracket distance: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 4
Rotation: CW
Plug number: PL181
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116146, FG20S014, FG20S016, FGN20S014, 03L903016A, 03L903016AX, 03L903017B, 1986A01494, 2613304, 2613304A, 2614130D, 2614130E

  • Normalised article numbler
    a3304pr, a3304s, a3490s, cal15491, dra0955, dra1073, f032116146, fg20s014, fg20s016, fgn20s014, lra03396, 03l903016a, 03l903016ax, 03l903017b, 1986a01494, 20339r, 20660n, 20660os, 209202, 209202a, 286508, 439771, 440362, 553619ri, 2613304, 2613304a, 2614130d, 2614130e, 9090626, 12090668, 12090671, 32000020, 205543200, 0986084730, 2113791802
  • Description
    Voltage: 14
    Amp: 200
    Pulley diameter: 40.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 4
    Rotation: CW
    Plug number: PL181
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116146, FG20S014, FG20S016, FGN20S014, 03L903016A, 03L903016AX, 03L903017B, 1986A01494, 2613304, 2613304A, 2614130D, 2614130E

    • Normalised article numbler
      a3304pr, a3304s, a3490s, cal15491, dra0955, dra1073, f032116146, fg20s014, fg20s016, fgn20s014, lra03396, 03l903016a, 03l903016ax, 03l903017b, 1986a01494, 20339r, 20660n, 20660os, 209202, 209202a, 286508, 439771, 440362, 553619ri, 2613304, 2613304a, 2614130d, 2614130e, 9090626, 12090668, 12090671, 32000020, 205543200, 0986084730, 2113791802
