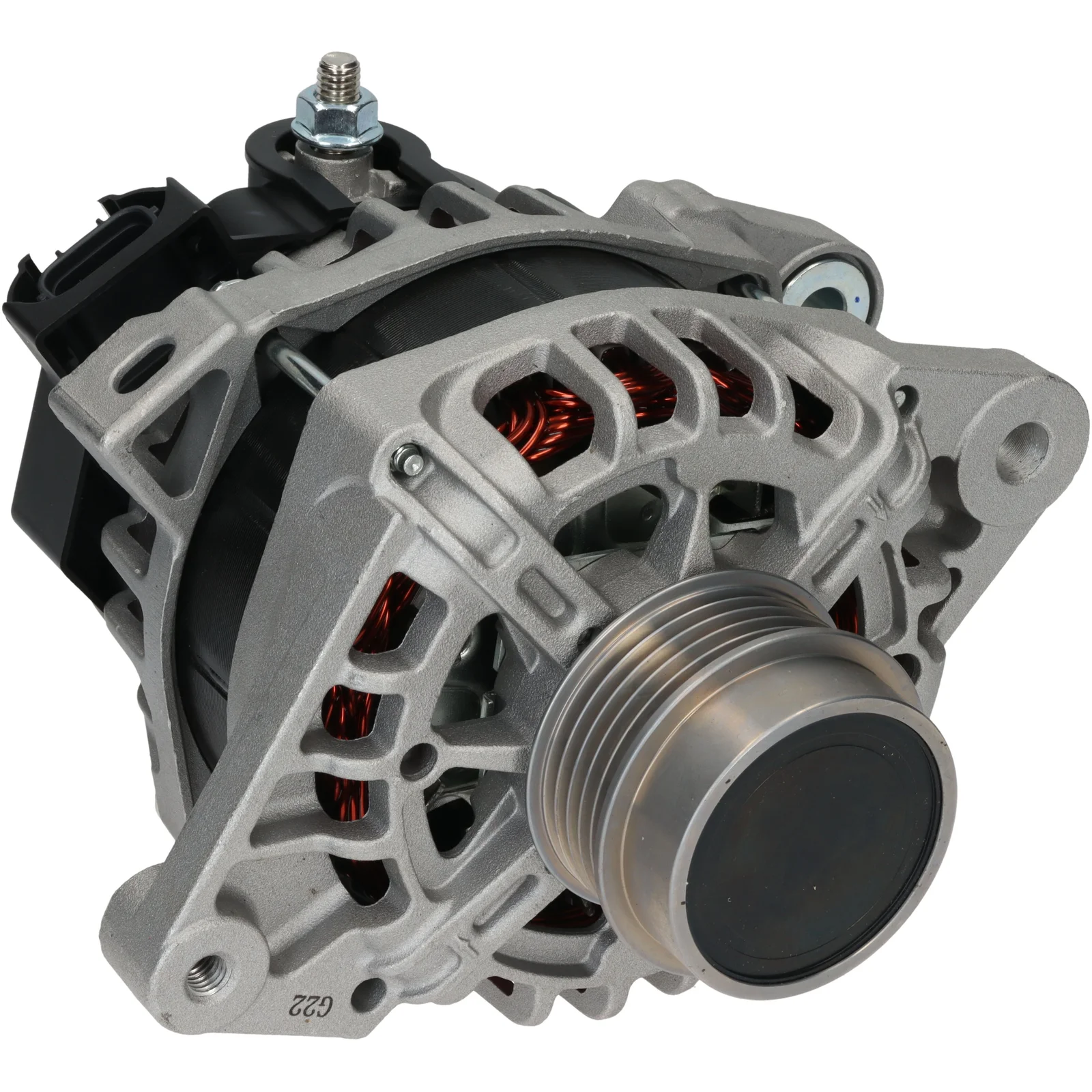

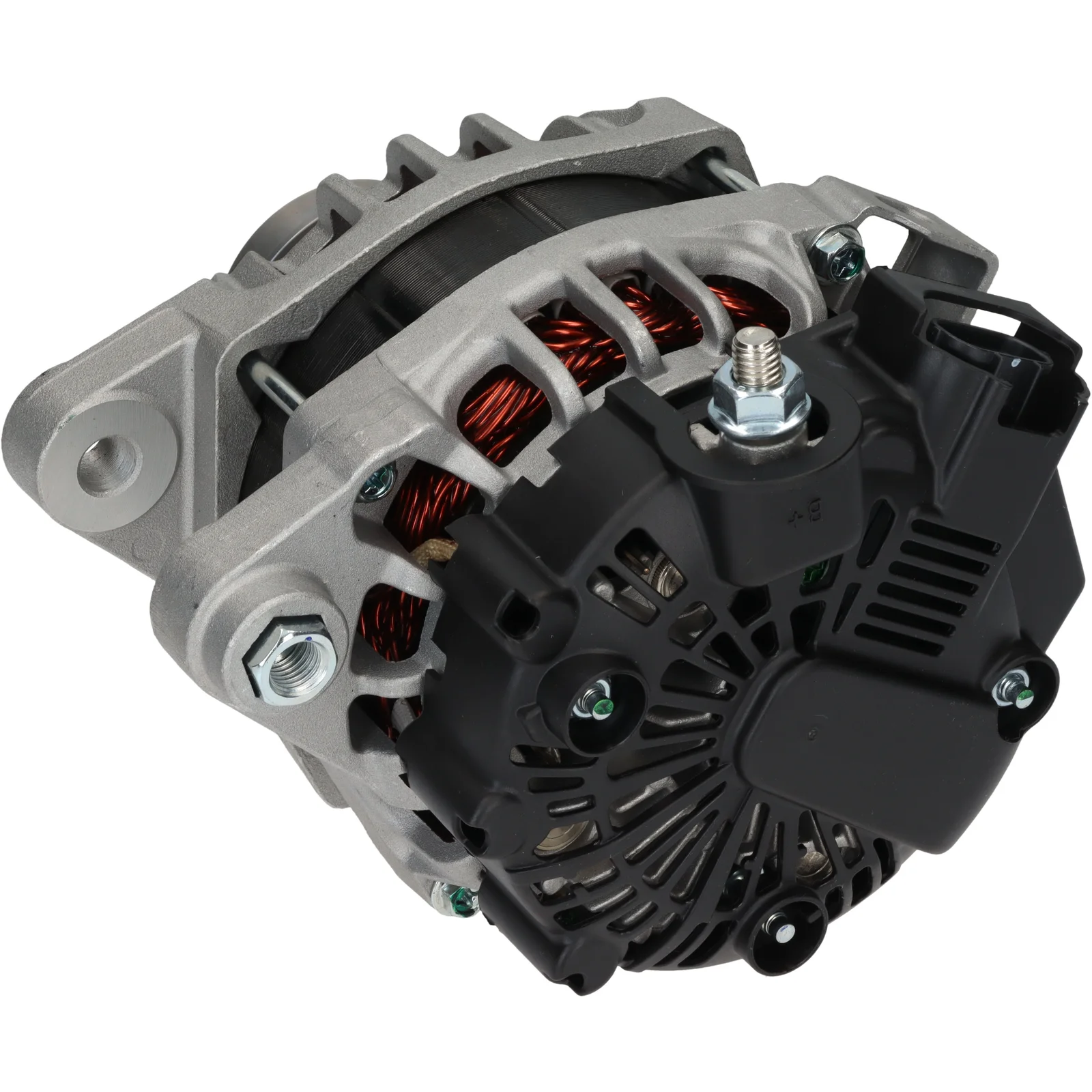

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115430

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 46.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 35.50
Width/holder arm: 15.00
Mount. bracket dist.: 46.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 5
Radius: 81.50
Radius 2: 85.00
B+: M8
Position/B+ in min.: 41
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 177.00
Alternator: SP/FW
Regulator type: IR

Files

  • OEM
    A0002609501, F032115430, 1986A01698, 37300-03600, 37300-03605, 2609501, 2624205

  • Normalised article numbler
    a0002609501, a3530s, cal32163, dra1187, dra1187n, f032115430, lra03647, 8el011713781, 1986a01698, 20715n, 209029, 209029a, 286787, 443240, 444347, 608385, 2609501, 2624205, 12061011, 155588090, 224311902, 0986083380, 3730003600, 3730003605
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 35.50
    Width/holder arm: 15.00
    Mount. bracket dist.: 46.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 58.00
    Grooves/pulley: 5
    Radius: 81.50
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 41
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 177.00
    Alternator: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0002609501, F032115430, 1986A01698, 37300-03600, 37300-03605, 2609501, 2624205

    • Normalised article numbler
      a0002609501, a3530s, cal32163, dra1187, dra1187n, f032115430, lra03647, 8el011713781, 1986a01698, 20715n, 209029, 209029a, 286787, 443240, 444347, 608385, 2609501, 2624205, 12061011, 155588090, 224311902, 0986083380, 3730003600, 3730003605
