HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116206

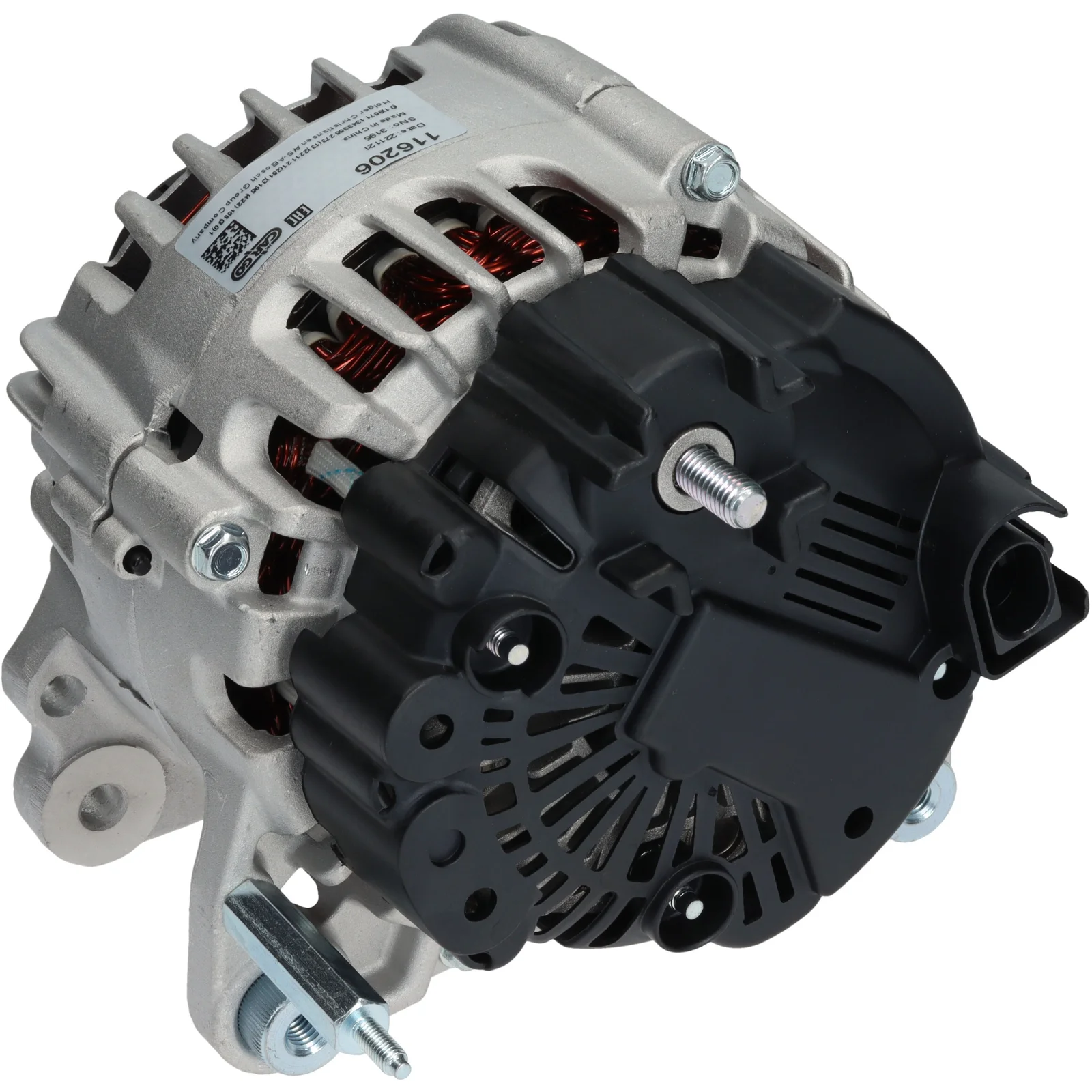

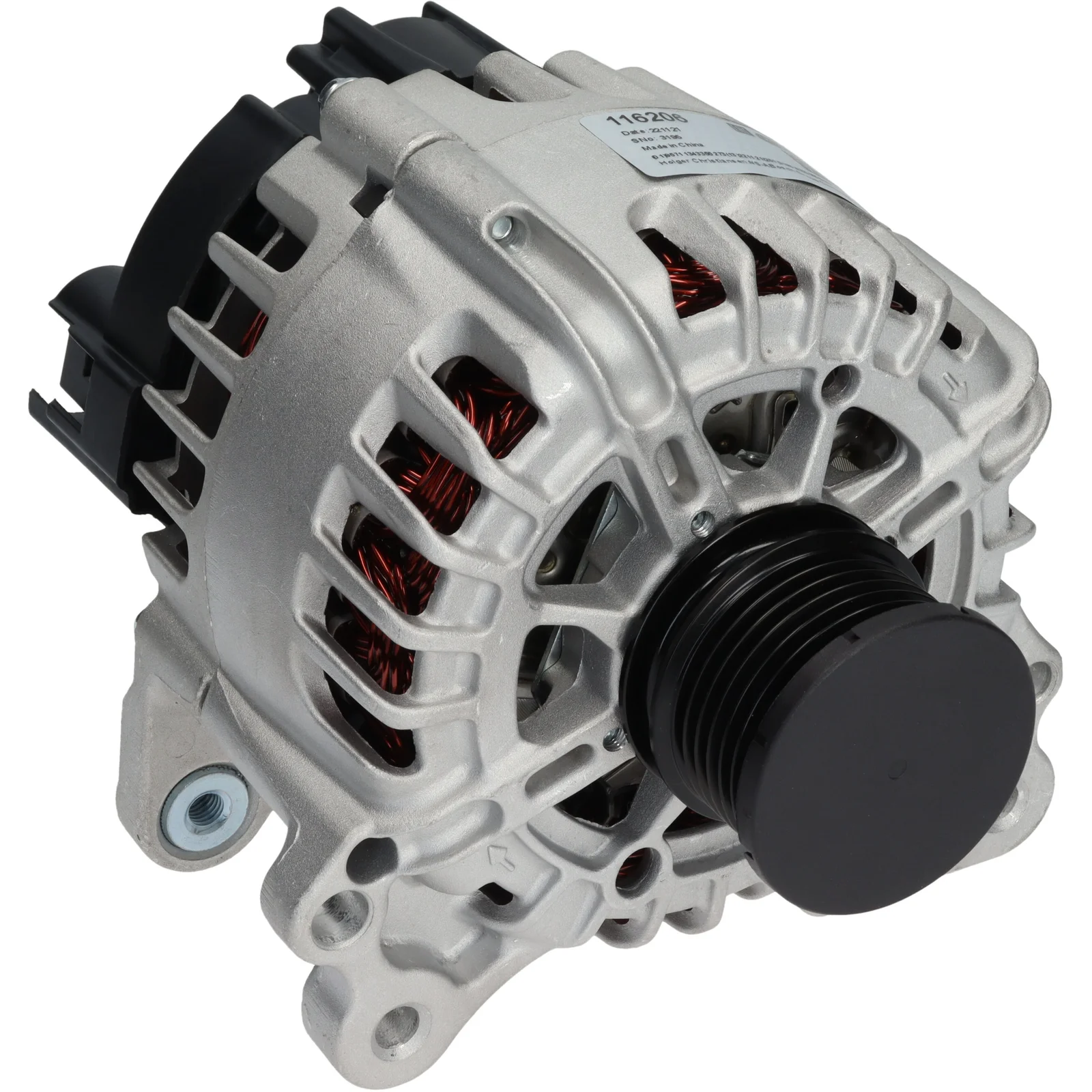

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mounting bracket distributor: 60.50

Description

Voltage: 14
Amp: 110
Pulley dist.: 39.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL166
Total length mm: 192.00
Terminal type: COM
ID Code: 17
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116206, TG12C 113, TG12C 278, TG12C113, 03L 903 023J, 03L903023J, 0986 083 910, 1986A02006, 439874, 440609, 2611875, 2715268, 2715268C

  • Normalised article numbler
    a3368pr, a3368valeo, f032116206, tg12c113, tg12c278, 03l903023j, 8el015630221, 1986a02006, 20646, 20646n, 20646noe, 287625, 439874, 440609, 2611875, 2715268, 2715268c, 12090780, 32083910, 0986083910
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 39.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL166
    Total length mm: 192.00
    Terminal type: COM
    ID Code: 17
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116206, TG12C 113, TG12C 278, TG12C113, 03L 903 023J, 03L903023J, 0986 083 910, 1986A02006, 439874, 440609, 2611875, 2715268, 2715268C

    • Normalised article numbler
      a3368pr, a3368valeo, f032116206, tg12c113, tg12c278, 03l903023j, 8el015630221, 1986a02006, 20646, 20646n, 20646noe, 287625, 439874, 440609, 2611875, 2715268, 2715268c, 12090780, 32083910, 0986083910
