HC-Cargo Alternator

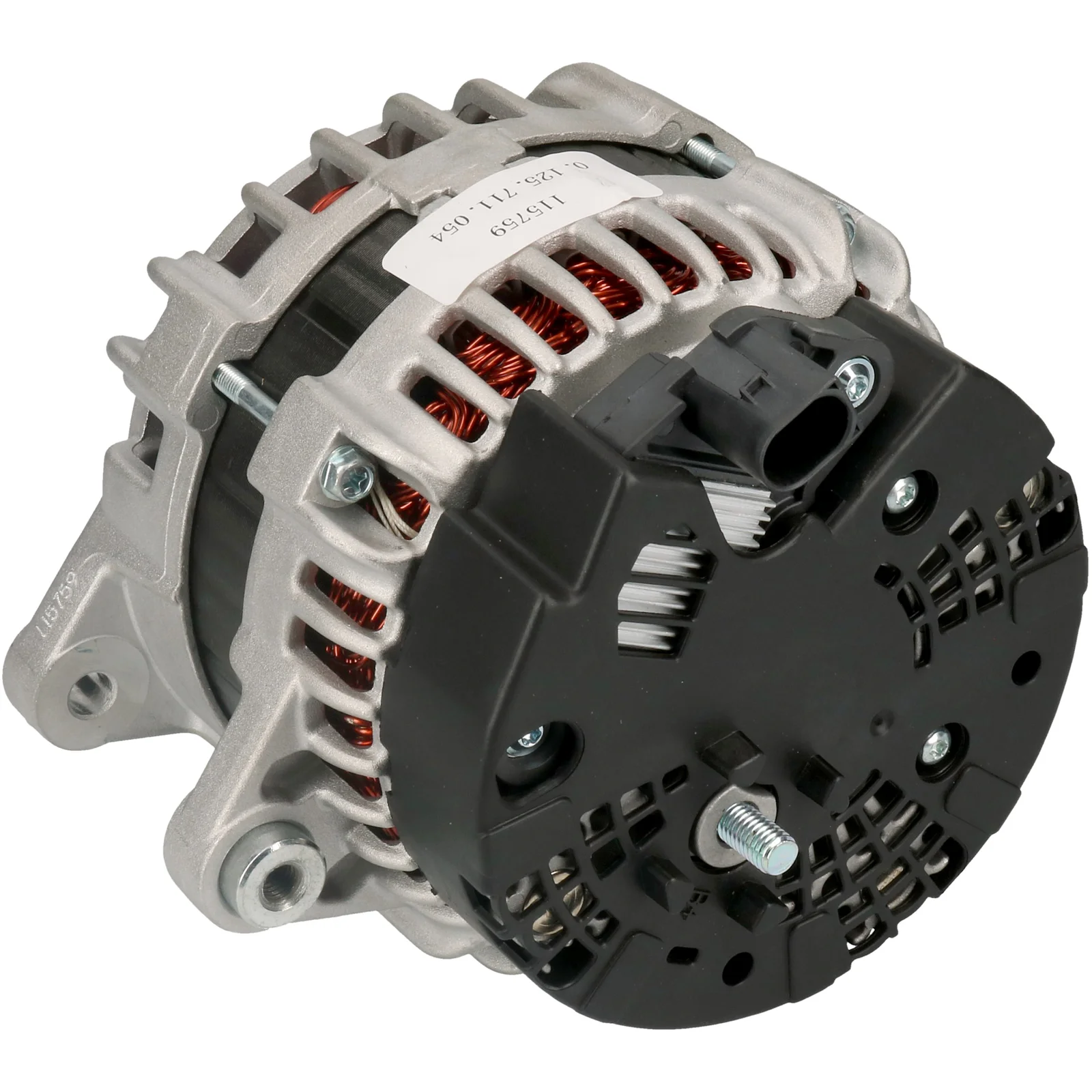

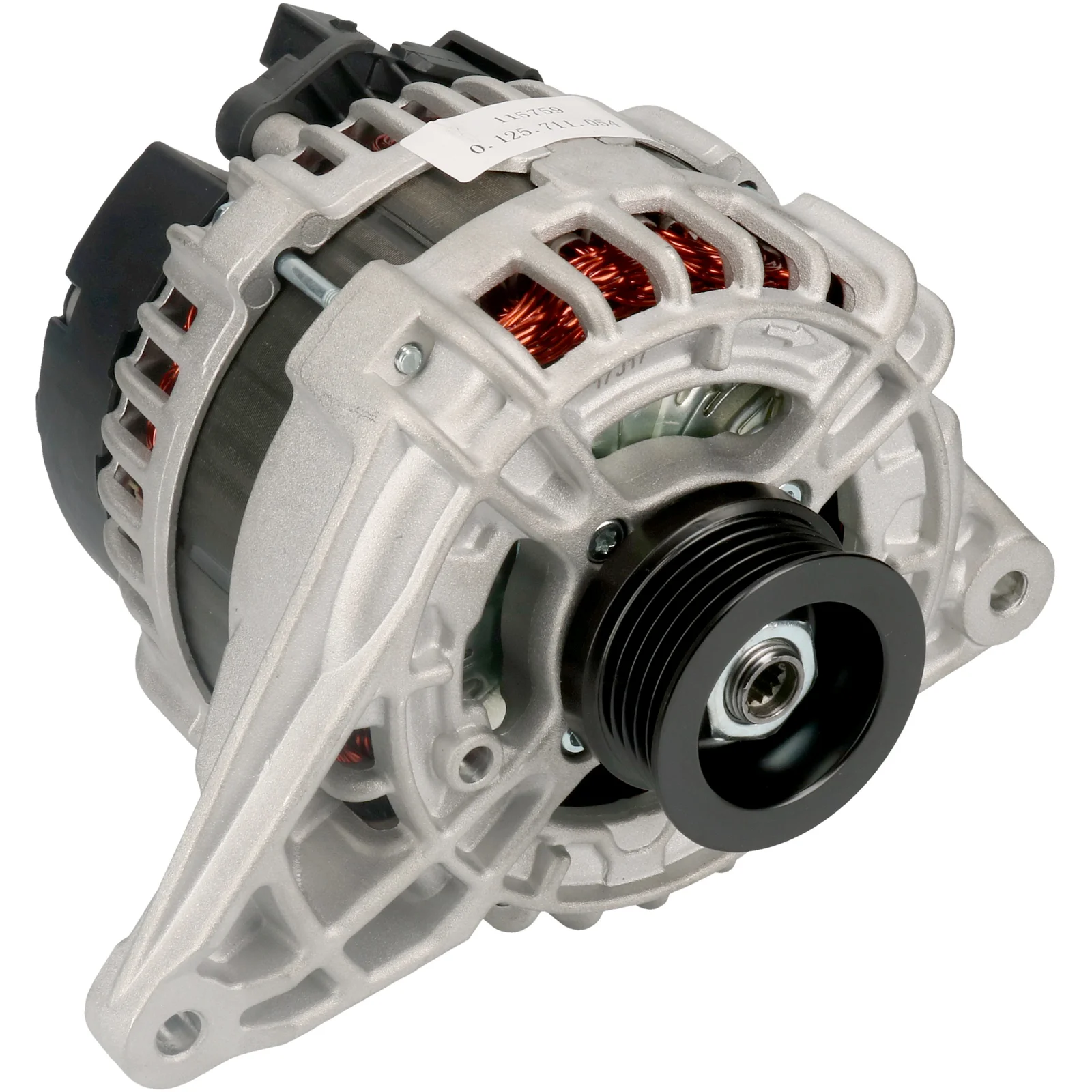

HC-Cargo Alternator
Article no.: F032115759

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 150, Rotation: clockwise, Mounting bracket distance: 51.00

Description

Voltage: 14
Amp: 150
Pulley: Groove diameter: 32.50
Width/holder arm: 15.00
Mounting bracket distance: 51.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 52
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 85.50
Radius 2: 116.00
B+: M8
Position/B+ in min.: 23
Rotation: CW
Plug no.: PL125
Total length mm: 175.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0009060122, A0009063322, A00090633220080, F032115759, 1986A01406, 0009060122, 0009063322, 0125711028, 0125711054, 00090633220080

  • Normalised article numbler
    a0009060122, a0009063322, a00090633220080, a0531s, cal10451, dra1065, f032115759, lra03651, 8el011713521, 1986a01406, 24400n, 24400noe, 209033, 209033a, 286791, 443409, 444286, 554301ri, 0009060122, 0009063322, 9090797, 12090489, 32082150, 0125711028, 0125711054, 555515150, 0986082150, 0986082153, 2253111502, 00090633220080
  • Description
    Voltage: 14
    Amp: 150
    Pulley: Groove diameter: 32.50
    Width/holder arm: 15.00
    Mounting bracket distance: 51.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 52
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 85.50
    Radius 2: 116.00
    B+: M8
    Position/B+ in min.: 23
    Rotation: CW
    Plug no.: PL125
    Total length mm: 175.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0009060122, A0009063322, A00090633220080, F032115759, 1986A01406, 0009060122, 0009063322, 0125711028, 0125711054, 00090633220080

    • Normalised article numbler
      a0009060122, a0009063322, a00090633220080, a0531s, cal10451, dra1065, f032115759, lra03651, 8el011713521, 1986a01406, 24400n, 24400noe, 209033, 209033a, 286791, 443409, 444286, 554301ri, 0009060122, 0009063322, 9090797, 12090489, 32082150, 0125711028, 0125711054, 555515150, 0986082150, 0986082153, 2253111502, 00090633220080
