HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110374

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 45, Rotation: CW, Pulley diameter: 63.00

Description

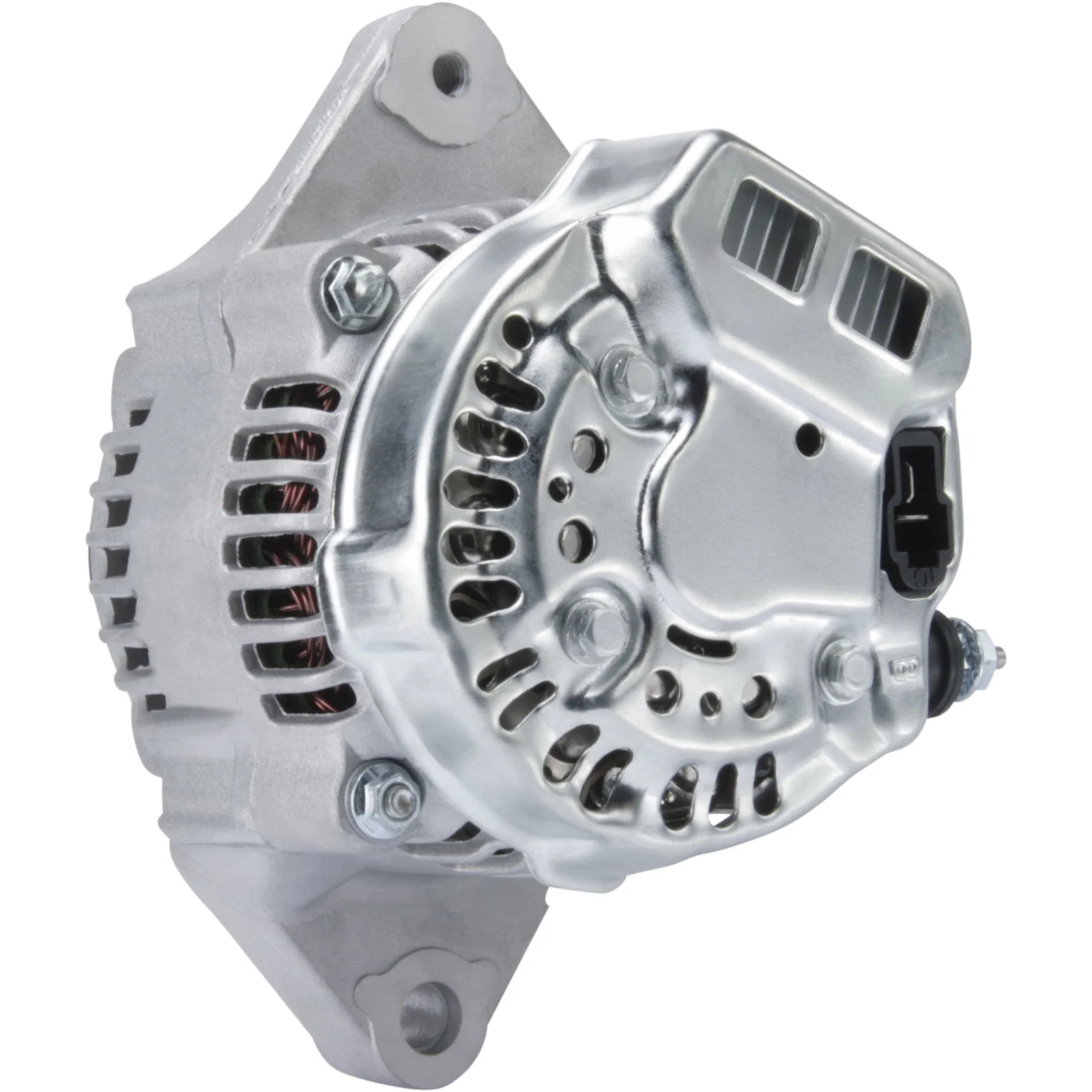

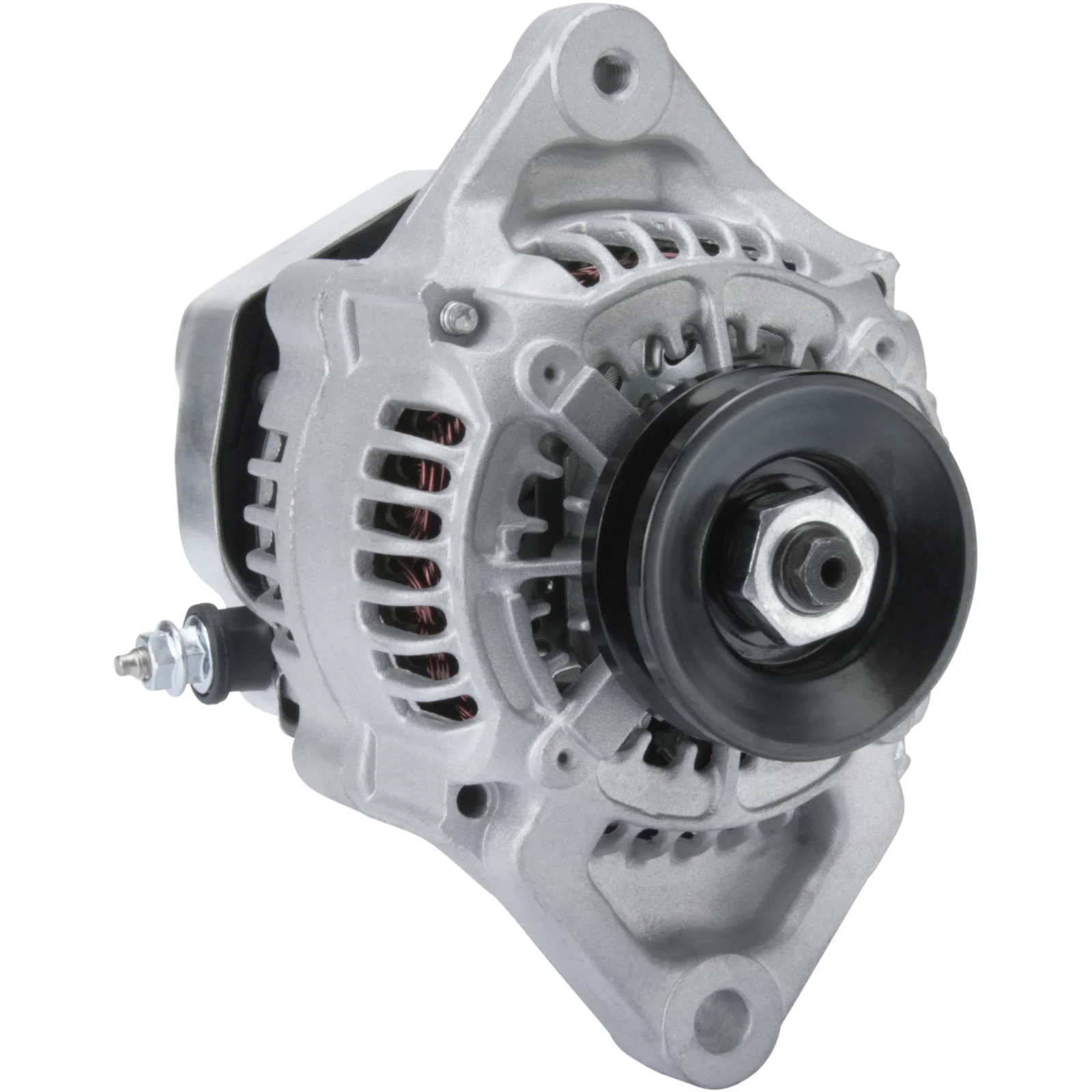

Daihatsu / Kubota Alternator 12V-45A 12V - 45A, 1V, (IG, L) For Yourex product order 90-123-7705

Voltage: 14
Amp: 45
Pulley dist.: 43.50
Width/holder arm: 19.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 63.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 75.00
B+: M5
Position/B+ in min.: 35
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 169.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Daihatsu

Files

  • OEM
    F032110374, ja160ir, LRA 543, 11-0374, 0986 036 641, 17356-64015, 17369-64011, 021000-9510, 021080-0870, 27060-87701, 27060-87701-000, 27060-87704, 27060-87704-000, 27060-87705, 27060-87705-000, 27060-97705-000, 100211-1400, 100211-1401, 100211-1402, 100211-4080, 100211-4120, 100211-4180, 100211-4390, 100211-6802, 100211-6803, 101211-2841, 119254-77200

  • Normalised article numbler
    a6188, aia104, aia105, alt30004, alt30035, cal40412, dan2018, dra3461, dra6641, f032110374, j5116008, ja160ir, lra00142, lra00543, lra543, qa1075, va298, 8el726306001, 2516, 12180n, 12180r, 20543r, 40160ri, 55596, 55934, 110374, 118348, 118775, 210148, 210148a, 280968, 436498, 436525, 437153, 553415ri, 1851608, 12060014, 12060021, 115002040, 115502040, 115530045, 0210009510, 0210800870, 217001402, 217102452, 695518045, 0986036641, 1002111400, 1002111401, 1002111402, 1002114080, 1002114120, 1002114180, 1002114390, 1002116802, 1002116803, 1012112841, 1735664015, 1736964011, 2706087701, 2706087704, 2706087705, 11925477200, 2706087701000, 2706087704000, 2706087705000, 2706097705000
  • Description
    Daihatsu / Kubota Alternator 12V-45A 12V - 45A, 1V, (IG, L) For Yourex product order 90-123-7705

    Voltage: 14
    Amp: 45
    Pulley dist.: 43.50
    Width/holder arm: 19.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 63.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 75.00
    B+: M5
    Position/B+ in min.: 35
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 169.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Daihatsu

    Files

  • Suitable for these vehicles

    • OEM
      F032110374, ja160ir, LRA 543, 11-0374, 0986 036 641, 17356-64015, 17369-64011, 021000-9510, 021080-0870, 27060-87701, 27060-87701-000, 27060-87704, 27060-87704-000, 27060-87705, 27060-87705-000, 27060-97705-000, 100211-1400, 100211-1401, 100211-1402, 100211-4080, 100211-4120, 100211-4180, 100211-4390, 100211-6802, 100211-6803, 101211-2841, 119254-77200

    • Normalised article numbler
      a6188, aia104, aia105, alt30004, alt30035, cal40412, dan2018, dra3461, dra6641, f032110374, j5116008, ja160ir, lra00142, lra00543, lra543, qa1075, va298, 8el726306001, 2516, 12180n, 12180r, 20543r, 40160ri, 55596, 55934, 110374, 118348, 118775, 210148, 210148a, 280968, 436498, 436525, 437153, 553415ri, 1851608, 12060014, 12060021, 115002040, 115502040, 115530045, 0210009510, 0210800870, 217001402, 217102452, 695518045, 0986036641, 1002111400, 1002111401, 1002111402, 1002114080, 1002114120, 1002114180, 1002114390, 1002116802, 1002116803, 1012112841, 1735664015, 1736964011, 2706087701, 2706087704, 2706087705, 11925477200, 2706087701000, 2706087704000, 2706087705000, 2706097705000
