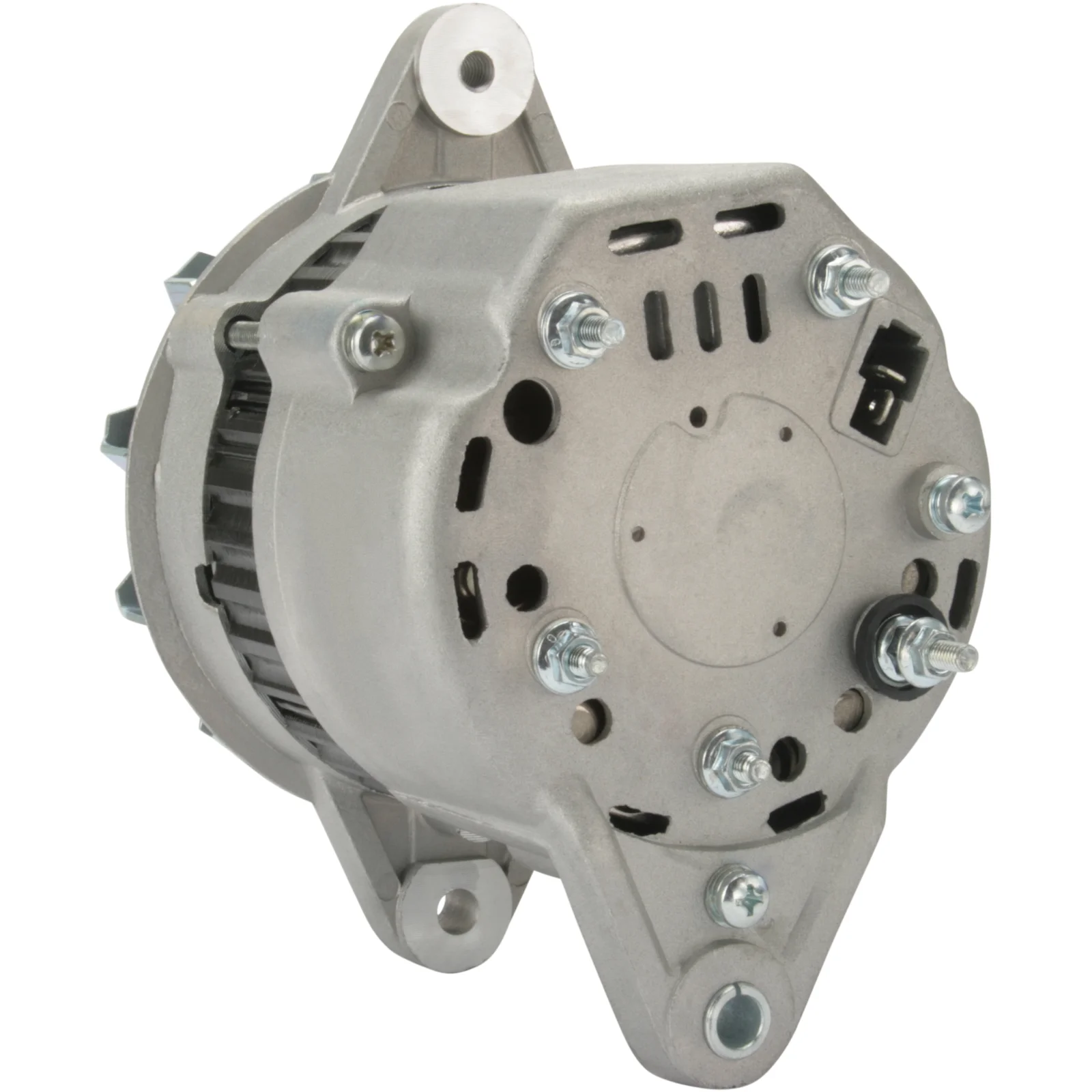

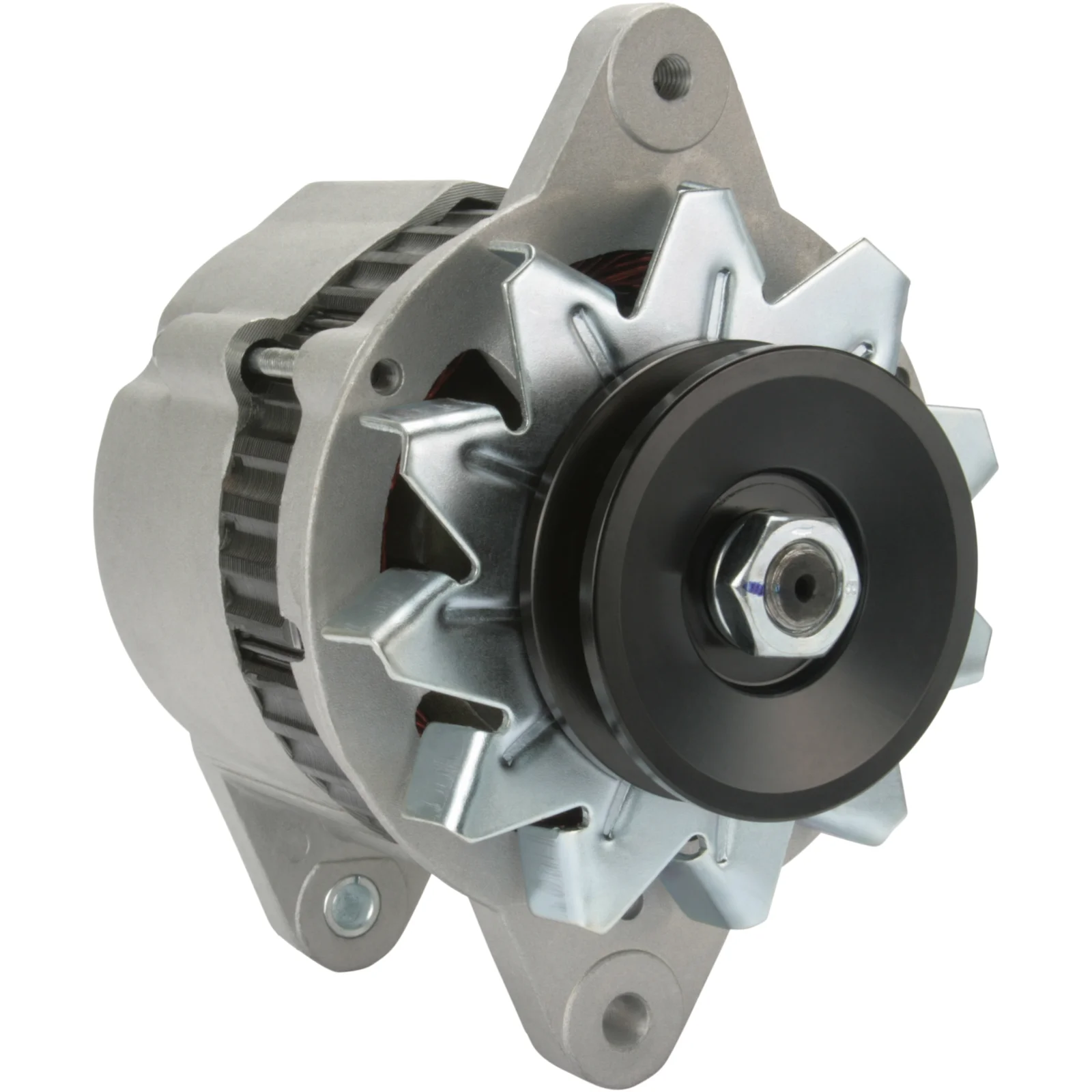

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113347

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 20, Mount. bracket dist.: 80.50, Pulley dia.: 75.00

Description

Voltage: 14
Ampere: 20
Pulley shape: 42.50
Width/holder arm: 14.50
Mounting bracket shape: 80.50
Bracket hole: 8.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole: M8
Pulley diameter: 75.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 77.50
Positive terminal: M5
Position/Positive terminal in minutes: 20
D+ size: Plug
Plug number: PL09
Total length mm: 162.00
Pulley: P

Files

  • OEM
    F032113347, lr120-23, 5812003580, 5812210540

  • Normalised article numbler
    a2135s, cal20172, dra3813, f032113347, lr12023, lra01297, 12126, 12126n, 281571, 1231301hi, 2081011, 2081019, 5812003580, 5812210540
  • Description
    Voltage: 14
    Ampere: 20
    Pulley shape: 42.50
    Width/holder arm: 14.50
    Mounting bracket shape: 80.50
    Bracket hole: 8.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole: M8
    Pulley diameter: 75.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 77.50
    Positive terminal: M5
    Position/Positive terminal in minutes: 20
    D+ size: Plug
    Plug number: PL09
    Total length mm: 162.00
    Pulley: P

    Files

  • Suitable for these vehicles

    • OEM
      F032113347, lr120-23, 5812003580, 5812210540

    • Normalised article numbler
      a2135s, cal20172, dra3813, f032113347, lr12023, lra01297, 12126, 12126n, 281571, 1231301hi, 2081011, 2081019, 5812003580, 5812210540
