Article no.: F032113376

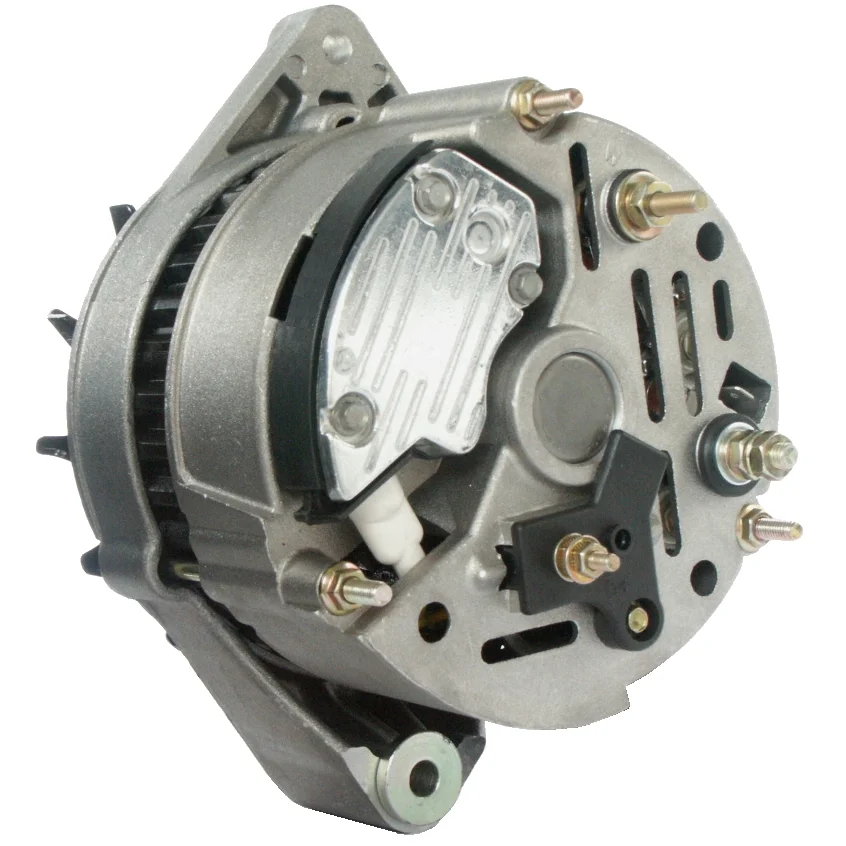

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Pulley diameter: 70.70

Description

Voltage: 14
Amp: 55
Terminal: W
Pulley distributor: 76.50
Width/holder arm: 56.00
Bracket hole: 8.30
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.20
Pulley diameter: 70.70
Grooves/pulley: 1
Radius: 86.00
Radius 2: 88.00
B+: M6
Position/B+ in min.: 35
D+ Size: M4
Rotation: CW
W socket type: M5-6.30
Total length mm: 167.50
Pulley: P
Regulator type: IR
Production information: BN
Servicing: Opel

Files

  • OEM
    aak1131, aak1181, aak3130, aak4143, F032113376, LR170-420A, V701M10300BA, 9ar2904, 9ar2904k, 9ar2904l, 11.201.214, 11.201.309, 11.201.928, 99ir, 549399, 609194, 692057, 1204007, 3472022, 3472024, 3472038, 3472039, 3472049, 3472061, 3472104, 3472204, 3493204, 6020940mo30sm, 61920201, 82311188, 82329714, 82378025, 90093799, 0120400614, 0120400833, 0120400834, 0120488158, 0120489118, 0120489119, 0120489585, 0120489586, 0120489625, 0120489626, 0120489635, 0120489636, 0120489768, 0120489769, 1840010150

  • Normalised article numbler
    a0792s, a2026, a2077, aak1131, aak1181, aak3130, aak4143, alt10149, alth245, bao3029, cal10177, dra0880, dra0882, f032113376, f032ua0001, ia0309, lea0073, lr170420a, lra00313, lra00346, lra00543, lra02569, lrb00131, mg396, v701m10300ba, va114, va163, va298, 8el012427461, 8el725812001, 8el725959001, 8el725960001, 9ar2904, 9ar2904k, 9ar2904l, 99ir, 3068, 5130, 5301, 20790r, 20819n, 55699, 55798, 55799, 56197, 56413, 56415, 200110, 209090, 209090a, 210083, 210083a, 210156, 210156a, 270578, 280578, 280797, 281680, 281703, 436150, 549399, 609194, 692057, 746063, 746863, 1204007, 2330950, 2930870, 2930880, 2930881, 2930891, 3472022, 3472024, 3472038, 3472039, 3472049, 3472061, 3472104, 3472204, 3493204, 6020940mo30sm, 9030880, 11201214, 11201309, 11201928, 12030880, 12036520, 32121242, 61920201, 82311188, 82329714, 82378025, 90093799, 0120400614, 0120400833, 0120400834, 0120488158, 0120489118, 0120489119, 0120489585, 0120489586, 0120489625, 0120489626, 0120489635, 0120489636, 0120489768, 0120489769, 228006552, 228106452, 228106552, 228110552, 231001352, 943356502, 0986030880, 0986030881, 0986030891, 1840010150
  • Description
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley distributor: 76.50
    Width/holder arm: 56.00
    Bracket hole: 8.30
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.20
    Pulley diameter: 70.70
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 88.00
    B+: M6
    Position/B+ in min.: 35
    D+ Size: M4
    Rotation: CW
    W socket type: M5-6.30
    Total length mm: 167.50
    Pulley: P
    Regulator type: IR
    Production information: BN
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      aak1131, aak1181, aak3130, aak4143, F032113376, LR170-420A, V701M10300BA, 9ar2904, 9ar2904k, 9ar2904l, 11.201.214, 11.201.309, 11.201.928, 99ir, 549399, 609194, 692057, 1204007, 3472022, 3472024, 3472038, 3472039, 3472049, 3472061, 3472104, 3472204, 3493204, 6020940mo30sm, 61920201, 82311188, 82329714, 82378025, 90093799, 0120400614, 0120400833, 0120400834, 0120488158, 0120489118, 0120489119, 0120489585, 0120489586, 0120489625, 0120489626, 0120489635, 0120489636, 0120489768, 0120489769, 1840010150

    • Normalised article numbler
      a0792s, a2026, a2077, aak1131, aak1181, aak3130, aak4143, alt10149, alth245, bao3029, cal10177, dra0880, dra0882, f032113376, f032ua0001, ia0309, lea0073, lr170420a, lra00313, lra00346, lra00543, lra02569, lrb00131, mg396, v701m10300ba, va114, va163, va298, 8el012427461, 8el725812001, 8el725959001, 8el725960001, 9ar2904, 9ar2904k, 9ar2904l, 99ir, 3068, 5130, 5301, 20790r, 20819n, 55699, 55798, 55799, 56197, 56413, 56415, 200110, 209090, 209090a, 210083, 210083a, 210156, 210156a, 270578, 280578, 280797, 281680, 281703, 436150, 549399, 609194, 692057, 746063, 746863, 1204007, 2330950, 2930870, 2930880, 2930881, 2930891, 3472022, 3472024, 3472038, 3472039, 3472049, 3472061, 3472104, 3472204, 3493204, 6020940mo30sm, 9030880, 11201214, 11201309, 11201928, 12030880, 12036520, 32121242, 61920201, 82311188, 82329714, 82378025, 90093799, 0120400614, 0120400833, 0120400834, 0120488158, 0120489118, 0120489119, 0120489585, 0120489586, 0120489625, 0120489626, 0120489635, 0120489636, 0120489768, 0120489769, 228006552, 228106452, 228106552, 228110552, 231001352, 943356502, 0986030880, 0986030881, 0986030891, 1840010150
