HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113403

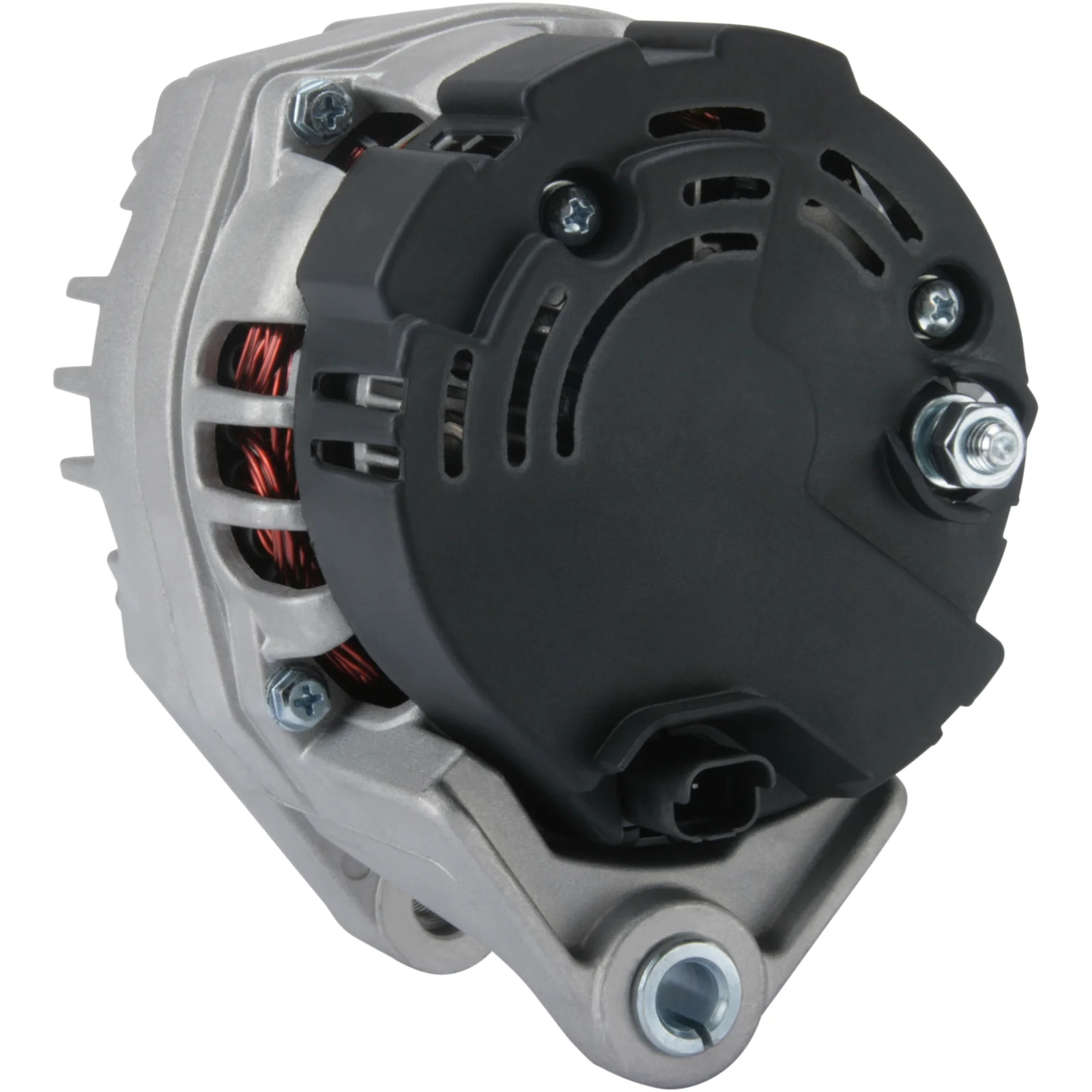

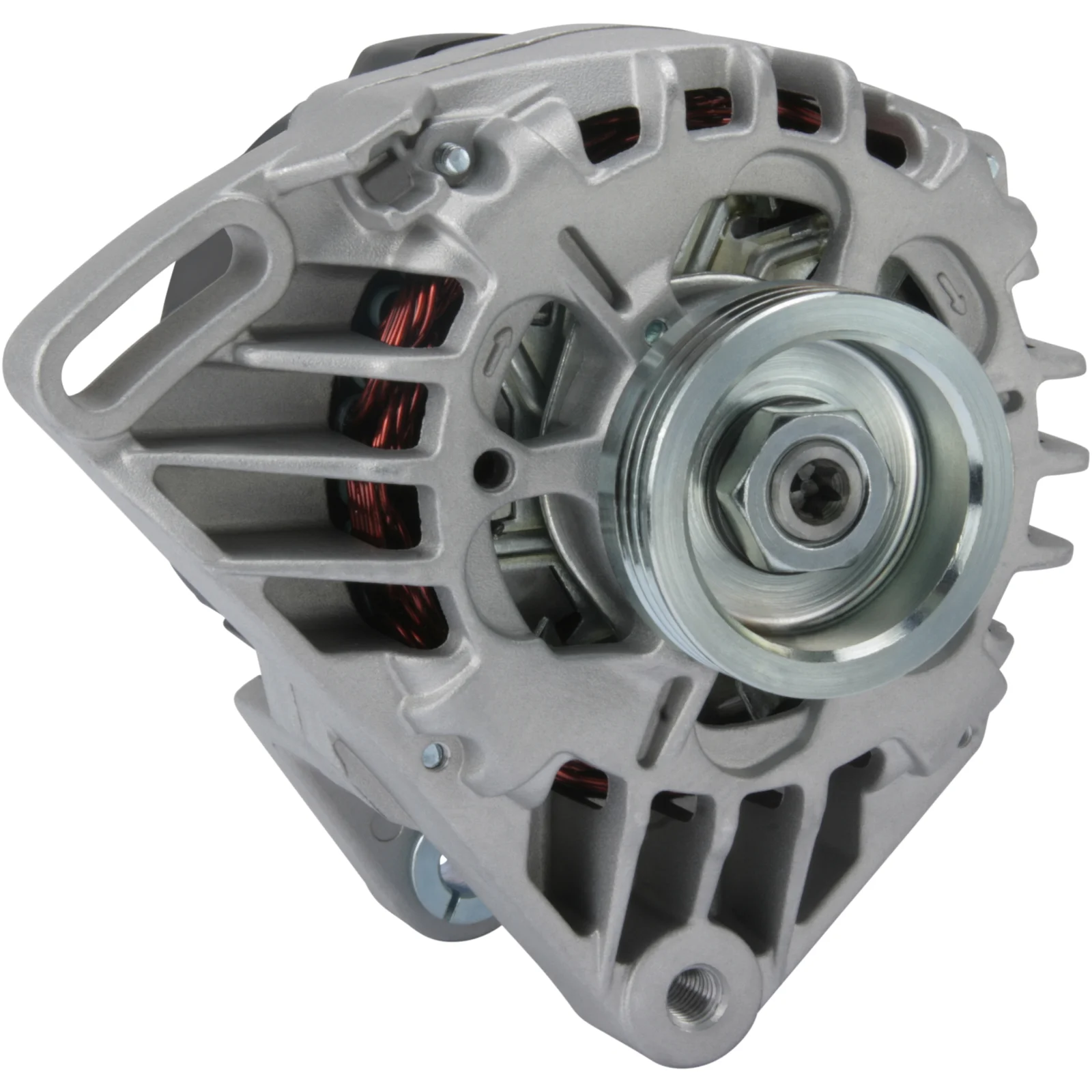

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 75, Rotation: CW, Mounting bracket distributor: 66.50

Description

Voltage: 14
Amp: 75
Pulley dist.: 53.50
Width/holder arm: 27.00
Mount. bracket dist.: 66.50
Bracket hole: M10
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 9.30
Pulley dia.: 59.70
Grooves/pulley: 3
Radius: 85.00
Radius 2: 100.00
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 160.00
Pulley: SP
Regulator type: IR
Prod. info: BN/OE
Servicing: Renault

Files

  • OEM
    A001TA2291, A001TA2293, a11vi110, a1ta2291, a1ta2293, aoo1ta2293, F032113403, SG7S012, SG7S070, 1637ir, 1986A00566, 23100-00q1c, 23100-00q1d, 23100-00q1j, 23100-00QA0, 2542464, 2542464A, 2542540, 2542540C, 2542540D, 2543550, 2543550A, 8253797, 7711134752, 8200060816, 8200064344, 8200065730, 8200660045

  • Normalised article numbler
    a001ta2291, a001ta2293, a11vi110, a1ta2291, a1ta2293, a3171, a3171pr, a5433pr, alt10099, alth135, aoo1ta2293, cal35104, dra3914, f032113403, f042205172, f042a0h135, lea0677, lra01823, lrb00503, sg7s012, sg7s070, 8el011360791, 8el012426821, 8el737928001, 1637ir, 1986a00566, 4019, 5705at, 21620n, 111119, 111606, 200187, 210286, 210286a, 283648, 283965, 301637ri, 437323, 437428, 439429, 747000, 747002, 2310000q1c, 2310000q1d, 2310000q1j, 2310000qa0, 2542464, 2542464a, 2542540, 2542540c, 2542540d, 2543550, 2543550a, 8253797, 9212174, 12045260, 32045261, 230166702, 230189752, 0986045261, 7711134752, 8200060816, 8200064344, 8200065730, 8200660045
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 53.50
    Width/holder arm: 27.00
    Mount. bracket dist.: 66.50
    Bracket hole: M10
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 9.30
    Pulley dia.: 59.70
    Grooves/pulley: 3
    Radius: 85.00
    Radius 2: 100.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 160.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      A001TA2291, A001TA2293, a11vi110, a1ta2291, a1ta2293, aoo1ta2293, F032113403, SG7S012, SG7S070, 1637ir, 1986A00566, 23100-00q1c, 23100-00q1d, 23100-00q1j, 23100-00QA0, 2542464, 2542464A, 2542540, 2542540C, 2542540D, 2543550, 2543550A, 8253797, 7711134752, 8200060816, 8200064344, 8200065730, 8200660045

    • Normalised article numbler
      a001ta2291, a001ta2293, a11vi110, a1ta2291, a1ta2293, a3171, a3171pr, a5433pr, alt10099, alth135, aoo1ta2293, cal35104, dra3914, f032113403, f042205172, f042a0h135, lea0677, lra01823, lrb00503, sg7s012, sg7s070, 8el011360791, 8el012426821, 8el737928001, 1637ir, 1986a00566, 4019, 5705at, 21620n, 111119, 111606, 200187, 210286, 210286a, 283648, 283965, 301637ri, 437323, 437428, 439429, 747000, 747002, 2310000q1c, 2310000q1d, 2310000q1j, 2310000qa0, 2542464, 2542464a, 2542540, 2542540c, 2542540d, 2543550, 2543550a, 8253797, 9212174, 12045260, 32045261, 230166702, 230189752, 0986045261, 7711134752, 8200060816, 8200064344, 8200065730, 8200660045
