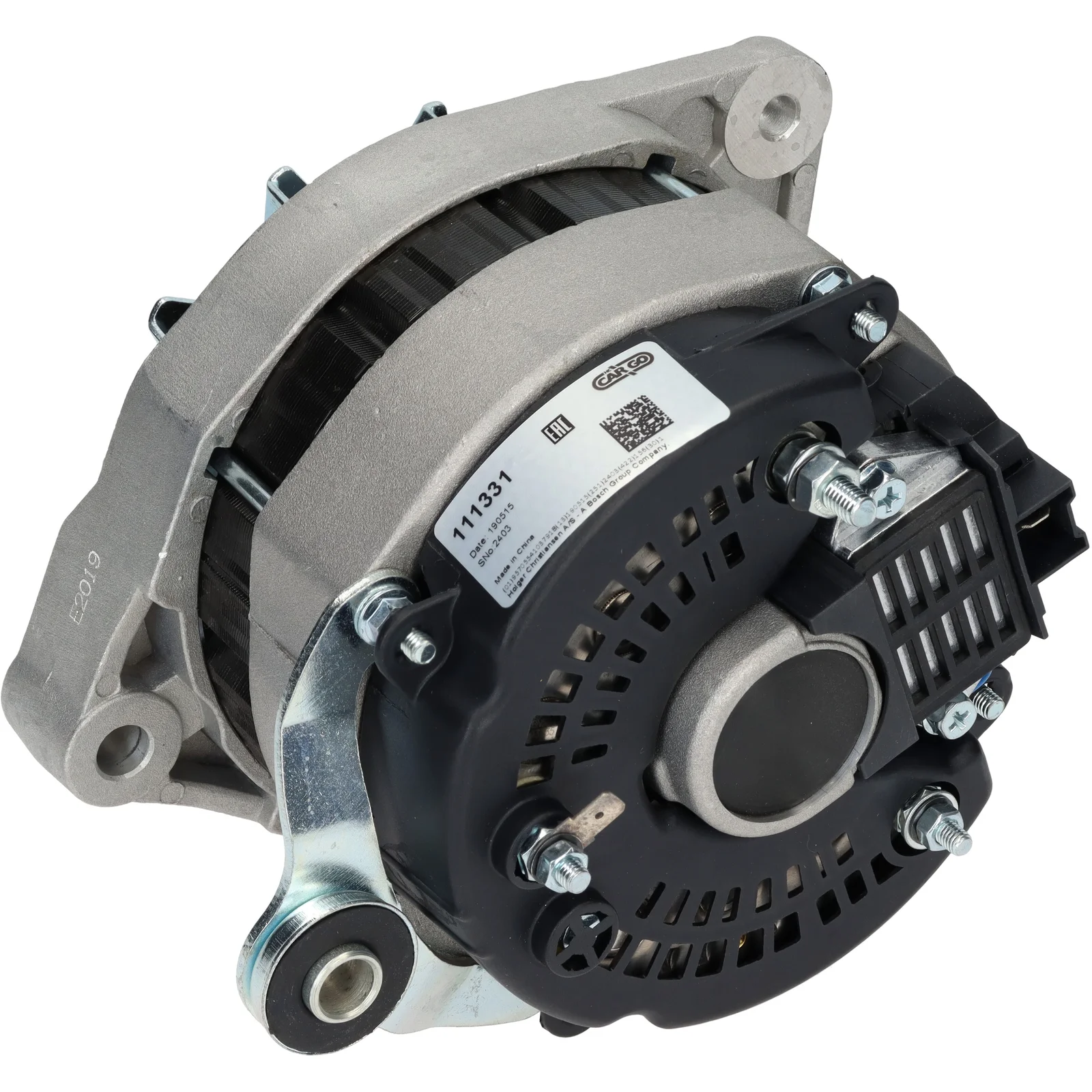

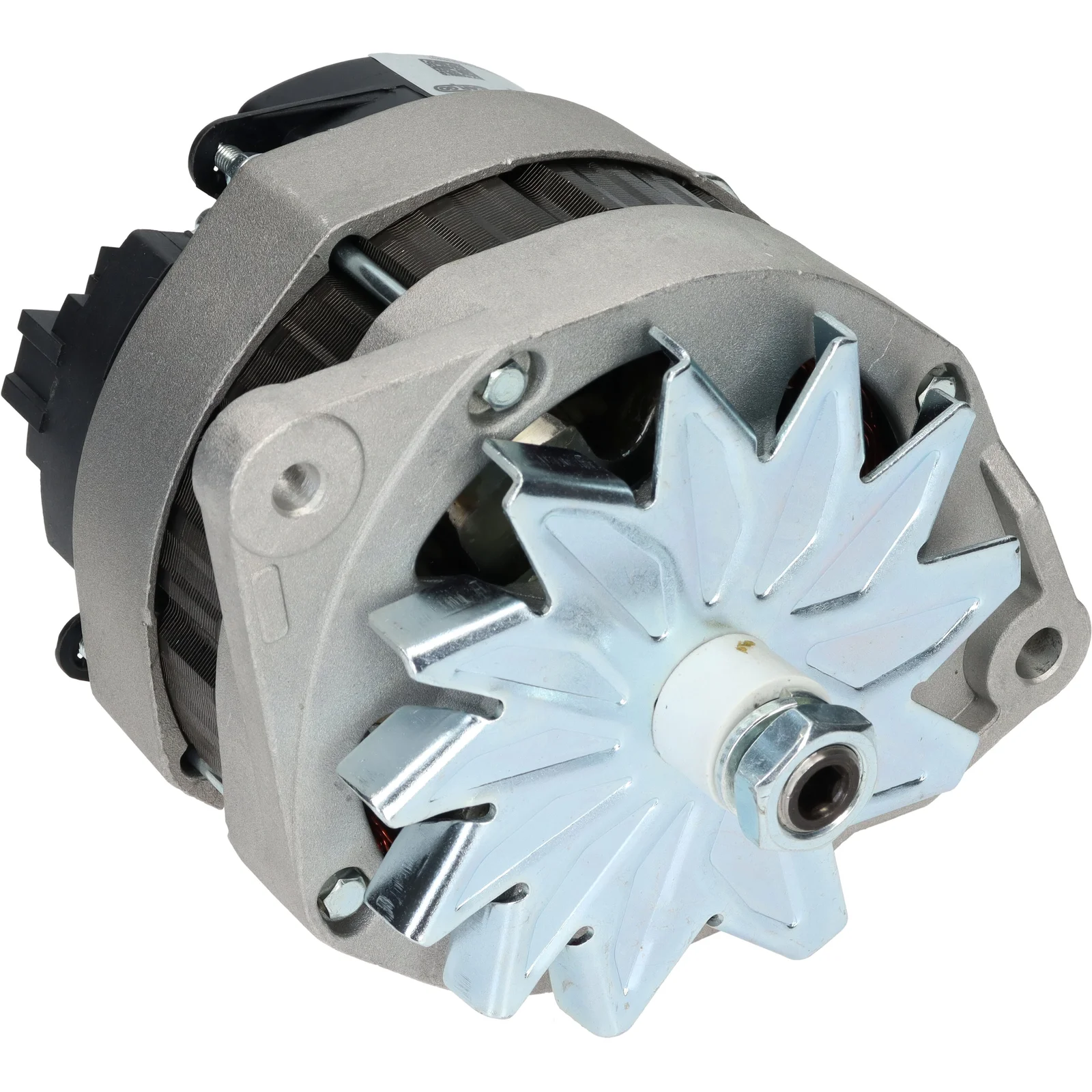

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111331

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 60, Rotation: CW, Mounting bracket distributor: 69.80

Description

Voltage: 28
Amp: 60
Terminal: W
Width/holder arm: 27.30
Mounting bracket distance: 69.80
Bracket hole: 10.20
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 8.40
Radius: 86.00
Radius 2: 89.00
B+: M6
Position/B+ in minutes: 48
Rotation: clockwise
Plug number: PL26
W plug type: M5
Total length mm: 172.50
Pulley: without
Relay: with
Voltage regulator: with
Product info: BN
Servicing: Renault VI
Remarks: Please note! This alternator has built-in relay. OE unit has no built-in relay.

Files

  • OEM
    A14N28, a14n28t, a14n3, a14n3t, a14n44m, F032111331, 721, 1516616R, 2100894, 5000785715, 5000786512, 5000787361, 5001014136, 5001014142

  • Normalised article numbler
    a14n28, a14n28t, a14n3, a14n3t, a14n44m, a3099, a3099r, a3511s, cal15604, cal15611, dra7241, f032111331, lrb00140, na337, 8el730019001, 721, 5213, 30721, 75716, 75731, 100894, 118638, 436348, 470895, 470896, 1516616r, 2100894, 3237241, 9937241, 9938351, 12037240, 530001654, 576007060, 0986037241, 5000785715, 5000786512, 5000787361, 5001014136, 5001014142, 943346129010
  • Description
    Voltage: 28
    Amp: 60
    Terminal: W
    Width/holder arm: 27.30
    Mounting bracket distance: 69.80
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 8.40
    Radius: 86.00
    Radius 2: 89.00
    B+: M6
    Position/B+ in minutes: 48
    Rotation: clockwise
    Plug number: PL26
    W plug type: M5
    Total length mm: 172.50
    Pulley: without
    Relay: with
    Voltage regulator: with
    Product info: BN
    Servicing: Renault VI
    Remarks: Please note! This alternator has built-in relay. OE unit has no built-in relay.

    Files

  • Suitable for these vehicles

    • OEM
      A14N28, a14n28t, a14n3, a14n3t, a14n44m, F032111331, 721, 1516616R, 2100894, 5000785715, 5000786512, 5000787361, 5001014136, 5001014142

    • Normalised article numbler
      a14n28, a14n28t, a14n3, a14n3t, a14n44m, a3099, a3099r, a3511s, cal15604, cal15611, dra7241, f032111331, lrb00140, na337, 8el730019001, 721, 5213, 30721, 75716, 75731, 100894, 118638, 436348, 470895, 470896, 1516616r, 2100894, 3237241, 9937241, 9938351, 12037240, 530001654, 576007060, 0986037241, 5000785715, 5000786512, 5000787361, 5001014136, 5001014142, 943346129010
