Article no.: F032111484

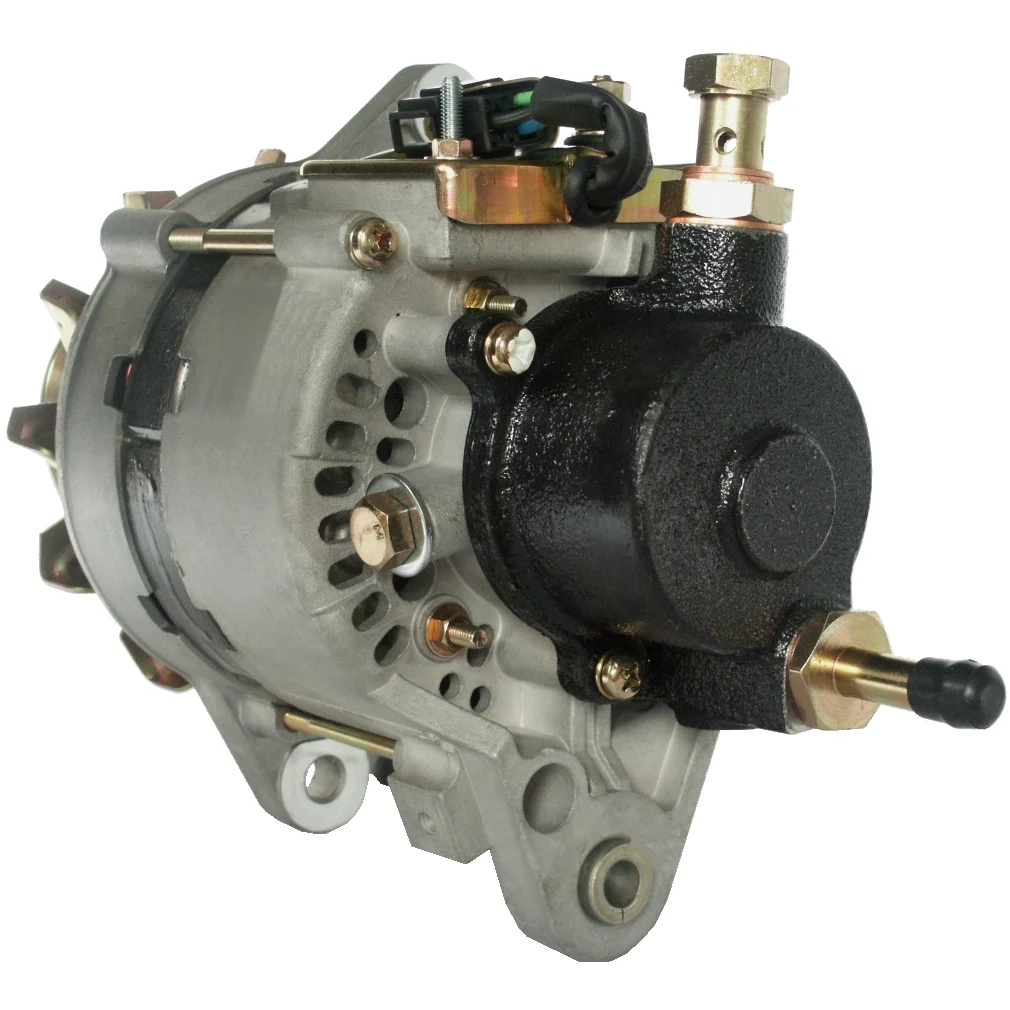

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Mounting bracket distributor: 97.00

Description

Voltage: 28
Amp: 50
Pulley dist.: 63.00
Width/holder arm: 14.20
Mounting bracket dist.: 97.00
Bracket hole: 10.50
Belt adjustment bracket hole position.: 55
Belt adjustment bracket hole 1: M8
Pulley dia.: 95.00
Grooves/pulley: 1
Radius: 89.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 2
Rotation: CW
Spark plug no.: PL15
Total length mm.: 276.00
Pulley: P
Voltage regulator: w/o
Vacuum pump: Yes
Product info: BN
Servicing: Toyota
Remarks: Voltage regulator: HC-CARGO 135376

Files

  • OEM
    F032111484, ja982, 021000-9980, 27020-56180, 27030-56150, 100210-2290

  • Normalised article numbler
    cal40607, dra3746, f032111484, j5112081, ja982, lra02403, 8el737057001, 5472, 40982, 56084, 119279, 471606, 3951281, 12060349, 0210009980, 235027254, 1002102290, 2702056180, 2703056150
  • Description
    Voltage: 28
    Amp: 50
    Pulley dist.: 63.00
    Width/holder arm: 14.20
    Mounting bracket dist.: 97.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 55
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 95.00
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 2
    Rotation: CW
    Spark plug no.: PL15
    Total length mm.: 276.00
    Pulley: P
    Voltage regulator: w/o
    Vacuum pump: Yes
    Product info: BN
    Servicing: Toyota
    Remarks: Voltage regulator: HC-CARGO 135376

    Files

  • Suitable for these vehicles

    • OEM
      F032111484, ja982, 021000-9980, 27020-56180, 27030-56150, 100210-2290

    • Normalised article numbler
      cal40607, dra3746, f032111484, j5112081, ja982, lra02403, 8el737057001, 5472, 40982, 56084, 119279, 471606, 3951281, 12060349, 0210009980, 235027254, 1002102290, 2702056180, 2703056150
