Article no.: F032111493

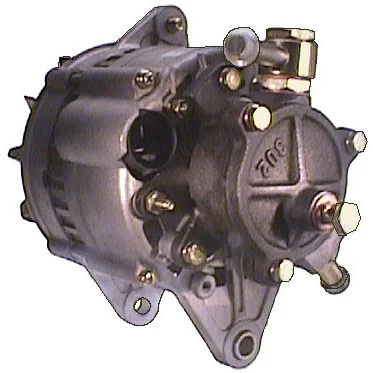

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 25, Rotation: CW, Mounting bracket distance: 80.70

Description

Voltage: 28
Amp: 25
Pulley distance.: 45.50
Width/holder arm: 13.50
Mounting bracket distance.: 80.70
Bracket hole: 10.30
Belt adjustment bracket hole position.: 55
Belt adjustment bracket hole 1: M8
Pulley diameter.: 85.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: 9.40
D+ Size: Plug
Rotation: CW
Plug number.: PL32
Total length mm: 236.00
Pulley: P
Voltage regulator type: IR
Vacuum pump: Yes
Product info: BN

Files

  • OEM
    F032111493, LR225-408, lr225-408b, lr225-408c, lr225-408e, lr225-409, lr225-409b, lr225-409e, 8944723300

  • Normalised article numbler
    a2010, altv038, dra3849, f032111493, f042305051, f042a05051, lea0682, lr225408, lr225408b, lr225408c, lr225408e, lr225409, lr225409b, lr225409e, 8el737226001, 5643, 119499, 401171ri, 481619, 9212625, 12090137, 136805025, 243118254, 8944723300
  • Description
    Voltage: 28
    Amp: 25
    Pulley distance.: 45.50
    Width/holder arm: 13.50
    Mounting bracket distance.: 80.70
    Bracket hole: 10.30
    Belt adjustment bracket hole position.: 55
    Belt adjustment bracket hole 1: M8
    Pulley diameter.: 85.50
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: 9.40
    D+ Size: Plug
    Rotation: CW
    Plug number.: PL32
    Total length mm: 236.00
    Pulley: P
    Voltage regulator type: IR
    Vacuum pump: Yes
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032111493, LR225-408, lr225-408b, lr225-408c, lr225-408e, lr225-409, lr225-409b, lr225-409e, 8944723300

    • Normalised article numbler
      a2010, altv038, dra3849, f032111493, f042305051, f042a05051, lea0682, lr225408, lr225408b, lr225408c, lr225408e, lr225409, lr225409b, lr225409e, 8el737226001, 5643, 119499, 401171ri, 481619, 9212625, 12090137, 136805025, 243118254, 8944723300
