HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113989

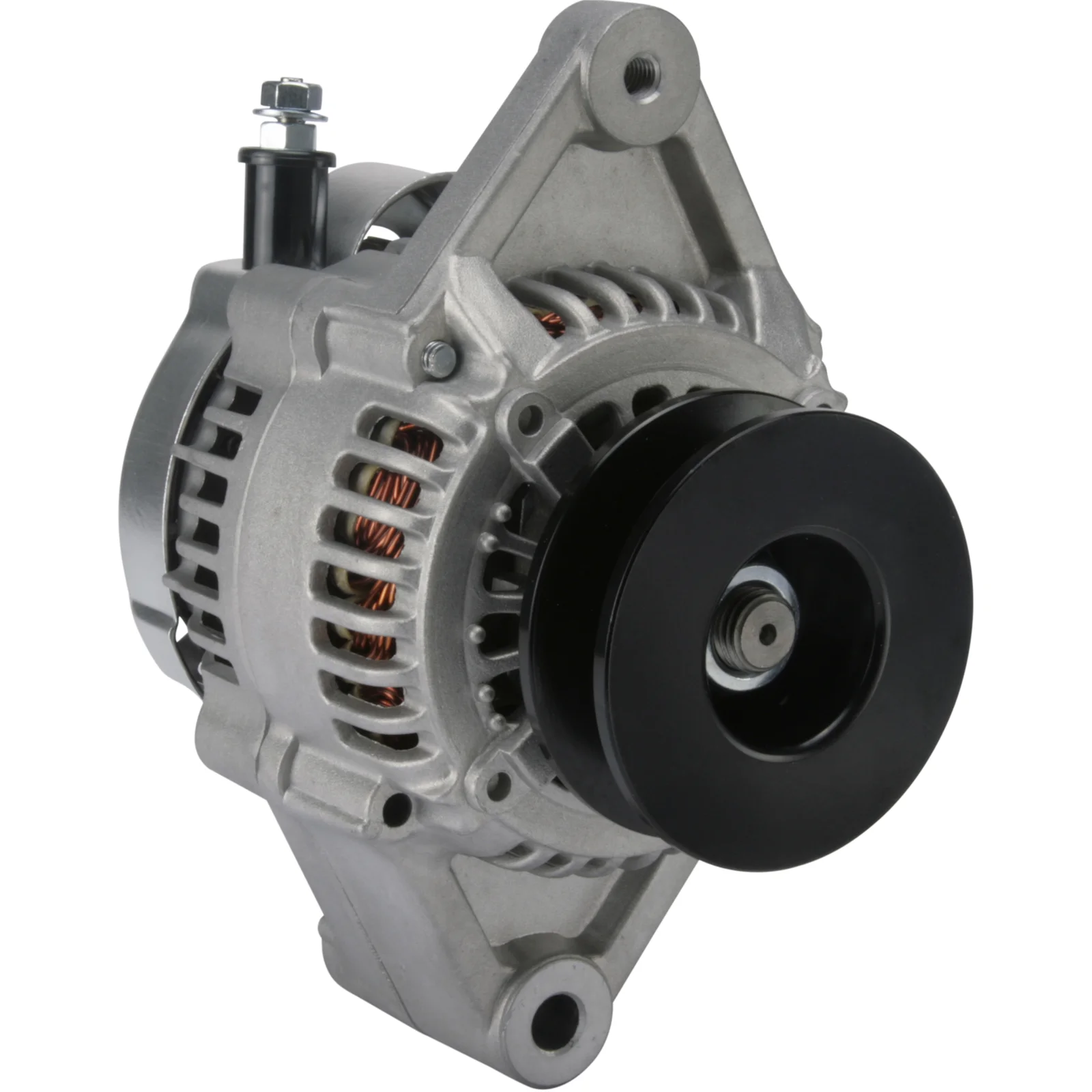

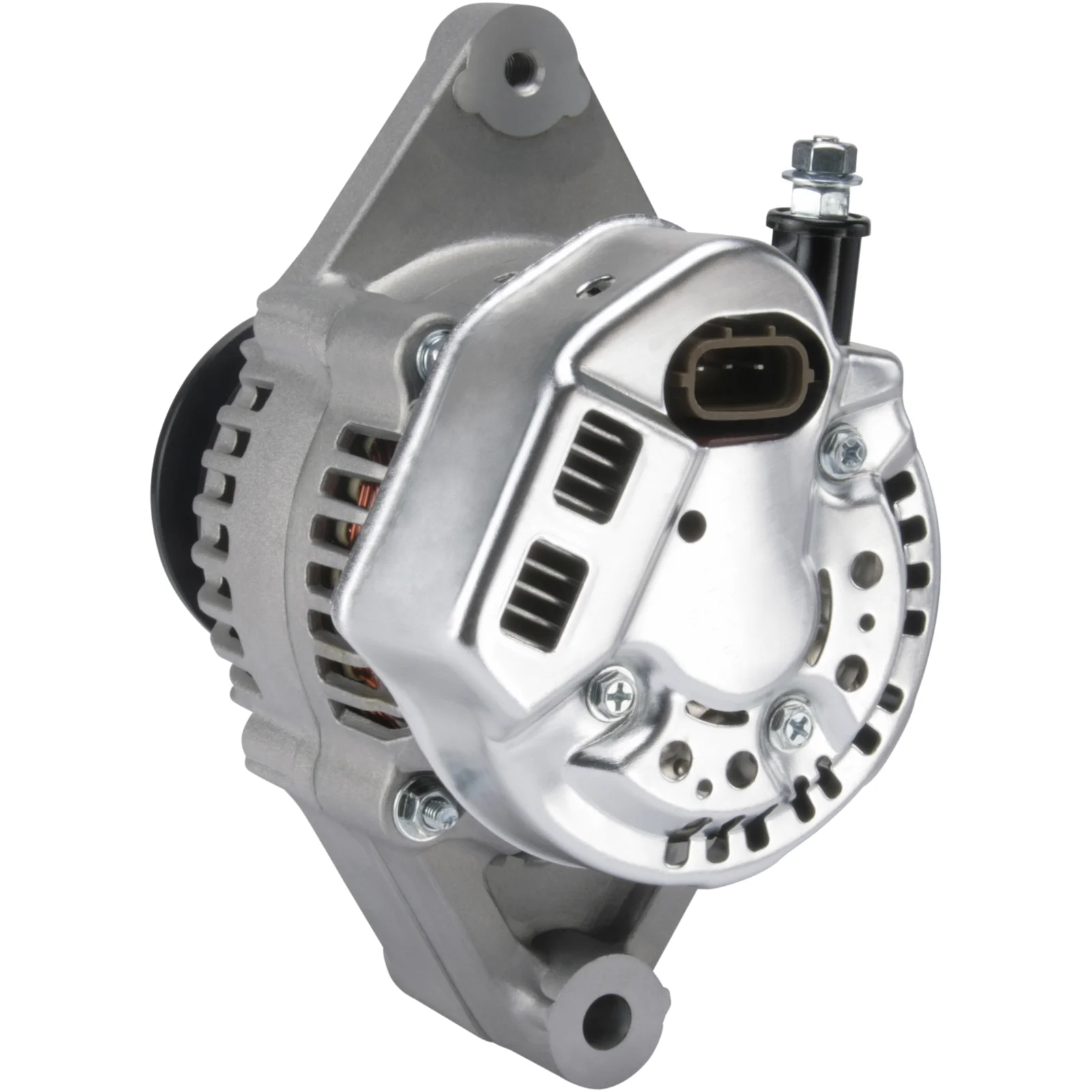

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 50, Rotation: CW, Pulley diameter: 75.00

Description

Voltage: 14
Amp: 50
Pulley dist.: 99.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 75.00
Grooves/pulley: 1
Radius: 80.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 152.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032113989, 27060-78156, 27060-78156-71, 27060-78203-71, 27060-UC020, 101211-3860, 101211-3861, 101211-8580, 101211-8700

  • Normalised article numbler
    a6215, alt5016, cal40168, f032113989, f042302003, f042a02003, lra04478, 8el011712771, 27060uc020, 288587, 553570ri, 1012113860, 1012113861, 1012118580, 1012118700, 2706078156, 270607815671, 270607820371
  • Description
    Voltage: 14
    Amp: 50
    Pulley dist.: 99.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 75.00
    Grooves/pulley: 1
    Radius: 80.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 152.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032113989, 27060-78156, 27060-78156-71, 27060-78203-71, 27060-UC020, 101211-3860, 101211-3861, 101211-8580, 101211-8700

    • Normalised article numbler
      a6215, alt5016, cal40168, f032113989, f042302003, f042a02003, lra04478, 8el011712771, 27060uc020, 288587, 553570ri, 1012113860, 1012113861, 1012118580, 1012118700, 2706078156, 270607815671, 270607820371
