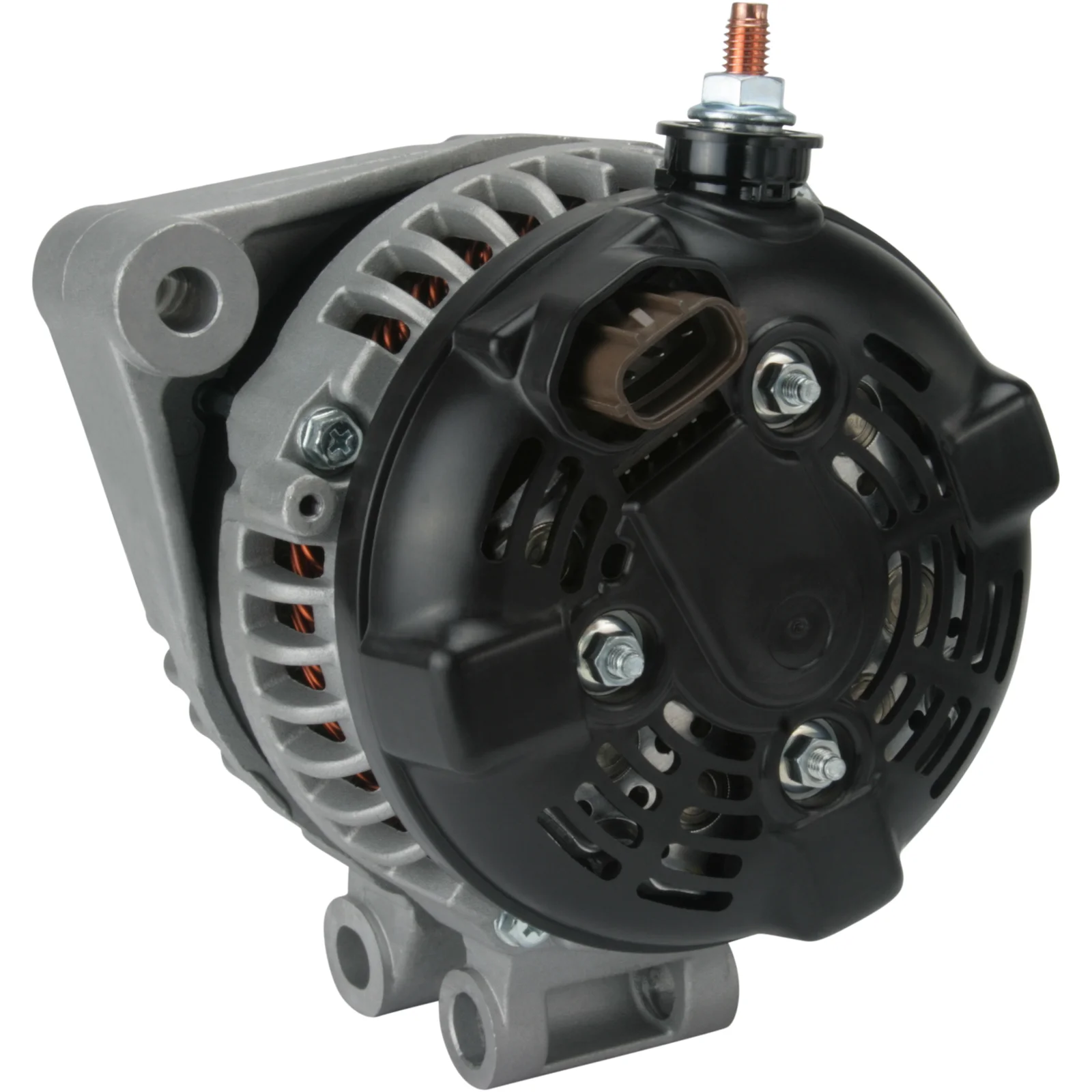

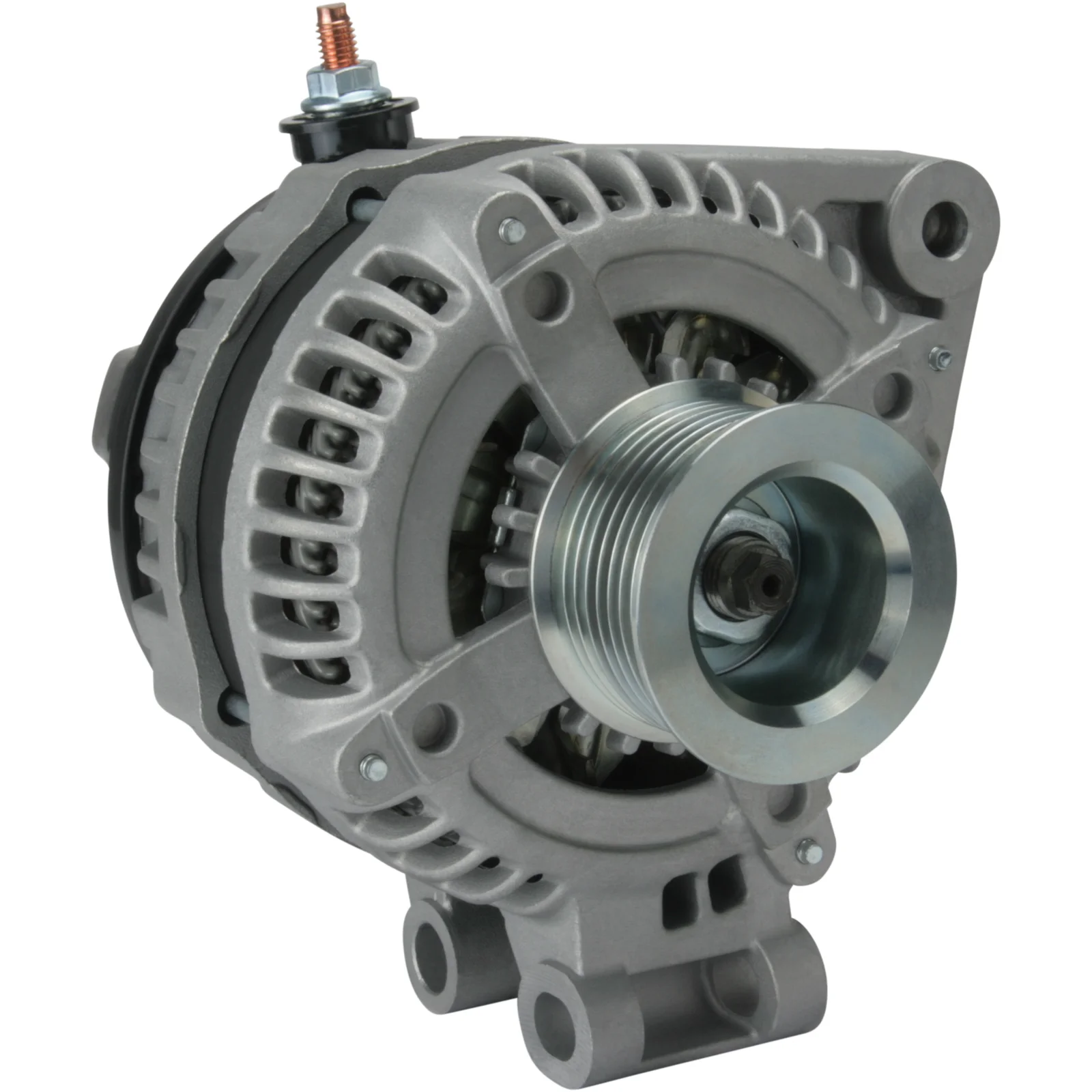

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113990

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 150, Rotation: CW, Mounting bracket distributor: 47.00

Description

Voltage: 14
Ampere: 150
Pulley diameter: 22.50
Width/holder arm: 50.00
Mounting bracket diameter: 47.00
Bracket hole: 14.50x11.80
Belt tensioning bracket hole position: 8
Belt tensioning bracket hole 1: 10.30
Pulley diameter: 52.00
Grooves/pulley: 8
Bplus: M8
Position/Bplus in min.: 8
Dplus size: Plug
Rotation: CW
Plug number: PL136
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    F032113990, YLE500300, yle500340, YLE500440, 104210-4010, 104210-4011, 104210-4012

  • Normalised article numbler
    a3538valeo, a6044, a6044denso, cal40276, dan989, dra0519, f032113990, yle500300, yle500340, yle500440, 8el015637661, 20358, 20358r, 285878, 439984, 440758, 440762, 553392ri, 12090396, 32118820, 32439984, 1042104010, 1042104011, 1042104012
  • Description
    Voltage: 14
    Ampere: 150
    Pulley diameter: 22.50
    Width/holder arm: 50.00
    Mounting bracket diameter: 47.00
    Bracket hole: 14.50x11.80
    Belt tensioning bracket hole position: 8
    Belt tensioning bracket hole 1: 10.30
    Pulley diameter: 52.00
    Grooves/pulley: 8
    Bplus: M8
    Position/Bplus in min.: 8
    Dplus size: Plug
    Rotation: CW
    Plug number: PL136
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113990, YLE500300, yle500340, YLE500440, 104210-4010, 104210-4011, 104210-4012

    • Normalised article numbler
      a3538valeo, a6044, a6044denso, cal40276, dan989, dra0519, f032113990, yle500300, yle500340, yle500440, 8el015637661, 20358, 20358r, 285878, 439984, 440758, 440762, 553392ri, 12090396, 32118820, 32439984, 1042104010, 1042104011, 1042104012
