HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114000

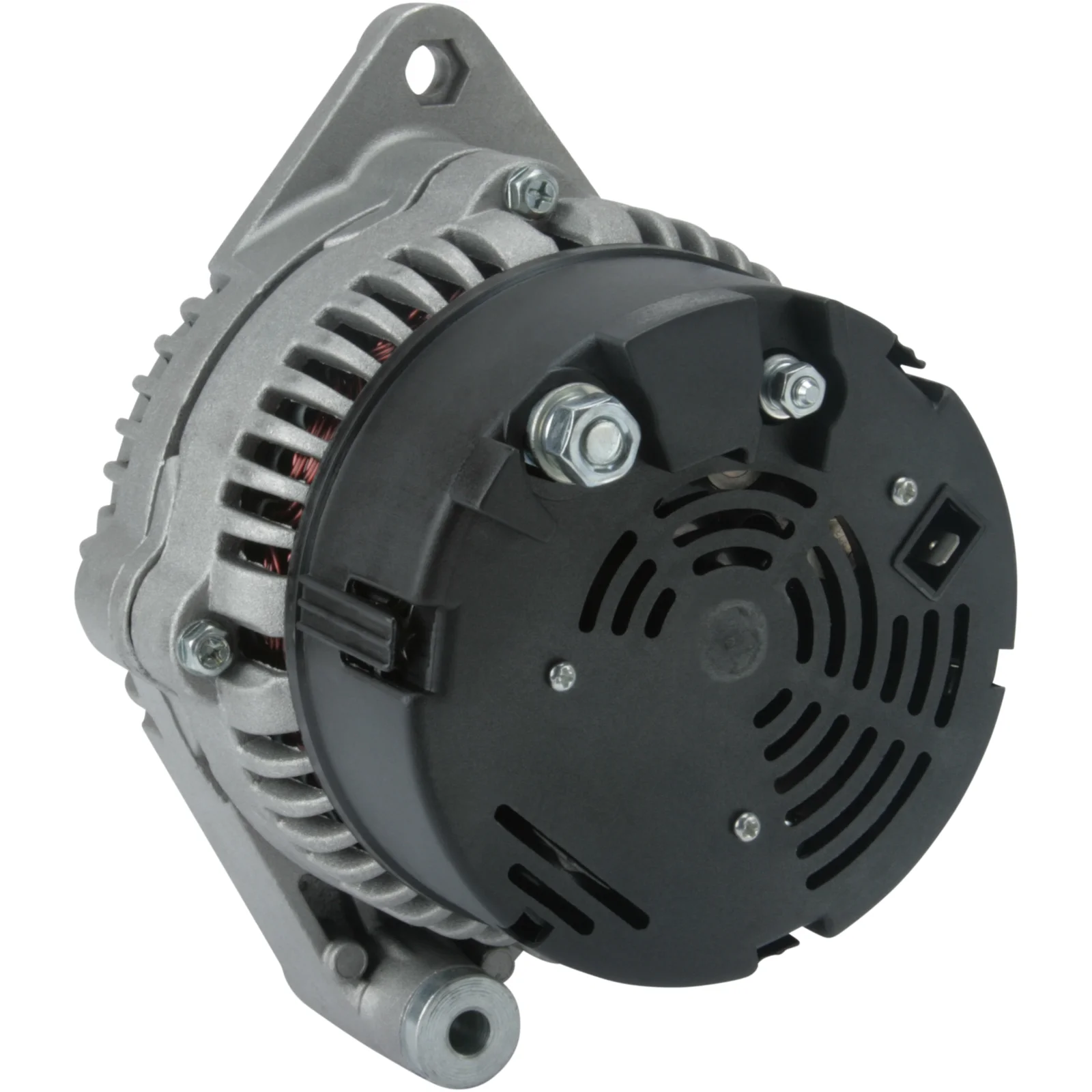

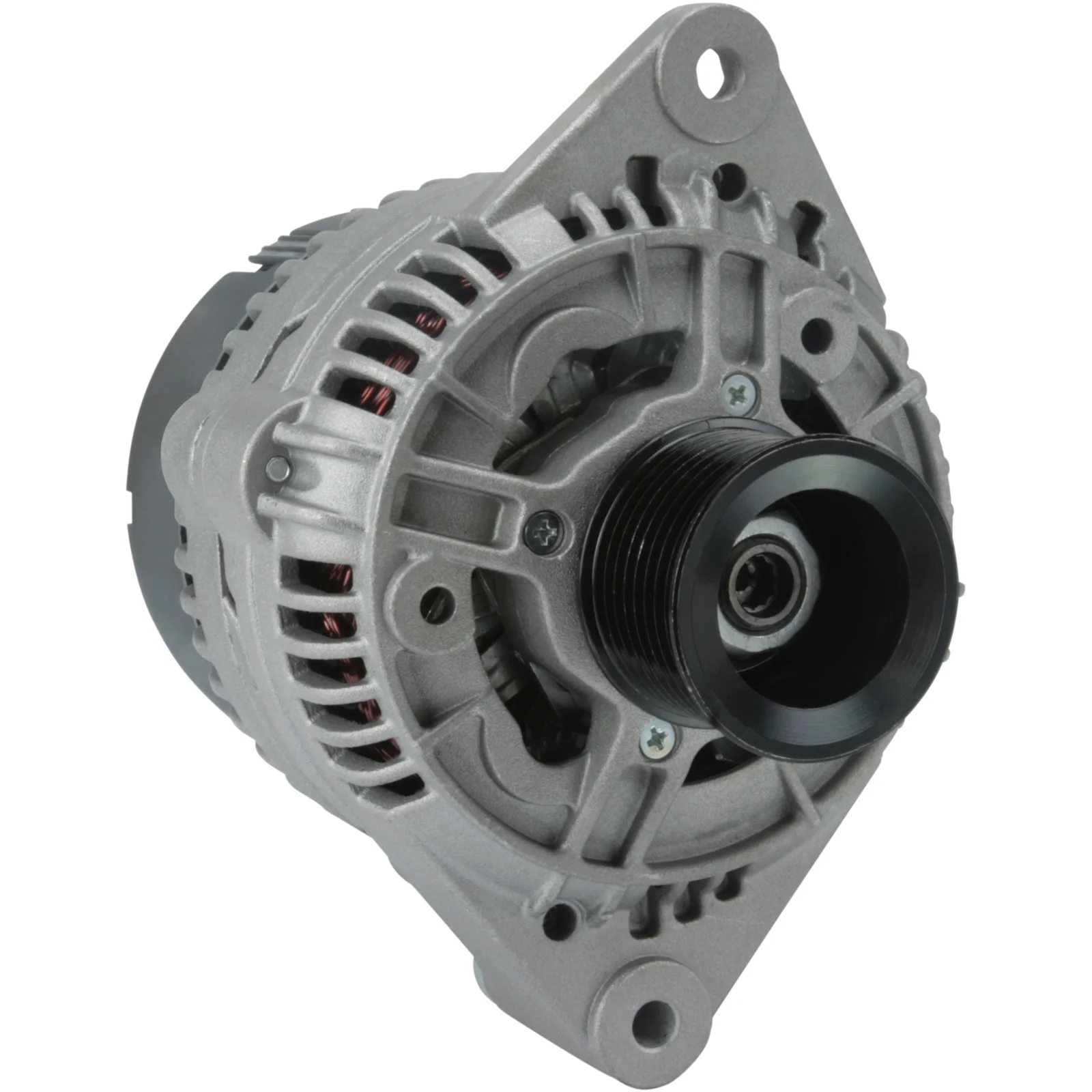

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Pulley diameter: 50.00

Description

Voltage: 14
Amp: 120
Terminal: W
Pulley dist.: 83.00
Width/holder arm: 56.00
Bracket hole: 8.50
Belt. adjust. bracket hole position.: 2
Belt. adjust. bracket hole 1: 9.00
Pulley dia.: 50.00
Grooves/pulley: 8
Radius: 86.00
Radius 2: 86.00
Alternator B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
W plug type: 6.30
Total length mm: 187.00
Pulley: SP

Files

  • OEM
    AAK5533, F032114000, 11.203.281, 7700071558

  • Normalised article numbler
    a9179, aak5533, cal21122, f032114000, ia1161, lra03663, mg339, 24097n, 210991, 210991a, 286803, 11203281, 5001841202, 7700071558
  • Description
    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley dist.: 83.00
    Width/holder arm: 56.00
    Bracket hole: 8.50
    Belt. adjust. bracket hole position.: 2
    Belt. adjust. bracket hole 1: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 8
    Radius: 86.00
    Radius 2: 86.00
    Alternator B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    W plug type: 6.30
    Total length mm: 187.00
    Pulley: SP

    Files

  • Suitable for these vehicles

    • OEM
      AAK5533, F032114000, 11.203.281, 7700071558

    • Normalised article numbler
      a9179, aak5533, cal21122, f032114000, ia1161, lra03663, mg339, 24097n, 210991, 210991a, 286803, 11203281, 5001841202, 7700071558
